What does Datagram mean

Datagram is a combination of the words data and telegram. Therefore, it is a message containing data that is sent from location to another. … Datagrams are also called “IP datagrams” since they are used by the Internet protocol (IP).

What is known as datagram?

Datagram is a combination of the words data and telegram. Therefore, it is a message containing data that is sent from location to another. … Datagrams are also called “IP datagrams” since they are used by the Internet protocol (IP).

Why is Internet called a datagram network?

Datagrams are data packets which contain adequate header information so that they can be individually routed by all intermediate network switching devices to the destination. … These networks are called datagram networks since communication occurs via datagrams. They exist in packet switching networks.

What are datagrams used for?

A datagram is primarily used for wireless communication and is self-contained with source and destination addresses written in the header. It is similar to a packet, which is a small piece of data transmitted through a connectionless protocol; but a datagram cannot handle prior or subsequent data communication.

What does a datagram look like?

The IPv4 datagram is conceptually divided into two pieces: the header and the payload. The header contains addressing and control fields, while the payload carries the actual data to be sent over the internetwork. Unlike some message formats, IP datagrams do not have a footer following the payload.

Are datagrams packets?

A packet is a block of data where the size may vary from 7 to 65542 bytes. We use the term packet when it comes to TCP , connection oriented. Whereas, datagram is a synonym for packets and used in UDP, connectionless. IP datagrams are also referred to as IP packets by many.

Which device is used to pass datagrams on to other computers?

A router is a networking device that forwards data packets between computer networks. Routers perform the traffic directing functions on the Internet. Data sent through the internet, such as a web page or email, is in the form of data packets.

How big is a datagram?

The maximum length is 65,535 bytes (the minimum length is 576). The Identification field is needed to allow the destination host to determine to which datagram a newly arrived fragment belongs. All the fragments of a datagram contain the same identification value. DF means do not fragment the datagram.

What is datagram message?

Definition: A datagram is an independent, self-contained message sent over the network whose arrival, arrival time, and content are not guaranteed.

What is the difference between a datagram and a frame?

I know that datagrams are packets at the transport layer of the OSI model, whilst frames are the name for packets in the transport layer and network packets are in the network layer. I also know that each contains a header with overhead info like the source and destination IP addresses, as well as a payload of data.

Article first time published on

What is the difference between datagram and virtual circuit?

A Datagram based network is a true packet switched network. There is no fixed path for transmitting data. A virtual circuit network uses a fixed path for a particular session, after which it breaks the connection and another path has to be set up for the next session.

What are the significant differences between datagram and virtual circuit approaches?

Datagram ApproachVirtual CircuitIt is frequently used in the IP network which can be used for data service such as the internet.It can be used by the ATM (Asynchronous Transfer Mode) Network, which can be used for mobile calls.

What is the component of a datagram?

Structure. Each datagram has two components, a header and a data payload. The header contains all the information sufficient for routing from the originating equipment to the destination without relying on prior exchanges between the equipment and the network.

What is the source address of the datagram?

The Source Address or the Source IP Address field is 32 bits long and is used to identify the sender of the data. This field is used to redirect error messages to the source in case the datagram is discarded before reaching the destination.

Which one of the following address is belongs to Class A?

Class A addresses 127.0. 0.0 to 127.255. 255.255 cannot be used and is reserved for loopback and diagnostic functions.

Why IP datagram security is important?

IP Security mechanisms, such as Authentication Header (AH) and Encapsulating Security Payload (ESP) Header, are important for Internet security to ensure integrity, authentication and confidentiality for data transmission.

What is limitation of datagram network?

Datagram networks are not as reliable as Virtual Circuits. The major drawback of Datagram Packet switching is that a packet can only be forwarded if resources such as the buffer, CPU, and bandwidth are available. Otherwise, the packet will be discarded.

How would you describe Packetizing?

Packetizing is a type of multiplexing, the sending of different data at the same time. During a downlink, a flow of data known as a packet comes from one instrument followed by a packet from others, in no particular order.

What are messages segments datagrams and frames?

PDU of Transport layer is called as a “Segment”, PDU of network layer is called as a “Packet” & PDU of data link layer is called as a “Frame”. … Network communication is actually message oriented.

Is TCP a datagram?

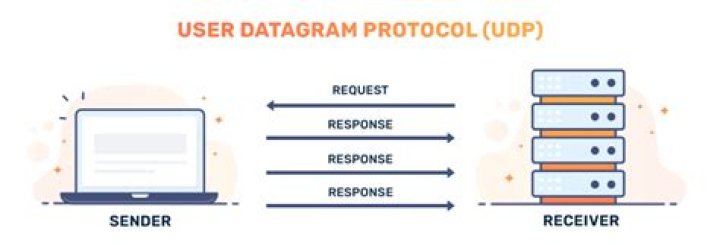

The Transmission Control Protocol (TCP) is one of the main protocols of the Internet protocol suite. … Applications that do not require reliable data stream service may use the User Datagram Protocol (UDP), which provides a connectionless datagram service that prioritizes time over reliability.

What is the relationship between a message and a packet?

Message SwitchingPacket SwitchingA complete message is passed across a network.Message is broken into smaller units known as Packets.In this, computer language used is ASCII, baudot, morse.In packet switching, binary type is used.

What does TCP stand for?

Transmission Control Protocol (TCP)

Why is UDP connectionless?

UDP is a connectionless protocol. No connection needs to be established between the source and destination before you transmit data. UDP does not have a mechanism to make sure that the payload is not corrupted. As a result, the application must take care of data integrity all by itself.

Why is MTU 1500?

The MTU (Maximum Transmission Unit) states how big a single packet can be. … Since the backbone of the internet is now mostly made up of ethernet links, the de facto maximum size of a packet is now unofficially set to 1500 bytes to avoid packets being fragmented down links.

What is added to a datagram to make it a frame?

When it reaches to data link layer or Layer 2 it becomes “frame” with source and destination mac address getting added. When it reaches the third layer or the networking layer it becomes a “packet” with source and destination IP address attached to it.

What layer are datagrams?

The transport layer uses datagram as a unit of transfer data. A datagram comprises a header, IP addresses of destination and source, and the data.

What is layer3 address?

The layer 3 address is a logical address. It will pertain to a single protocol (such as IP, IPX, or Appletalk). The layer 2 address is a physical address. It pertains to the actual hardware interface (NIC) in the computer.

How is the congestion control done in datagram subnets?

In this technique each router associates a real variable with each of its output line. … if it is in the warning state then router will send back a choke packets. Several variations on the congestion control algorithm have been proposed depending on the value of thresholds.

What do you mean by routing in computer network?

Routing is the process of selecting a path for traffic in a network or between or across multiple networks. … Packet forwarding is the transit of network packets from one network interface to another. Intermediate nodes are typically network hardware devices such as routers, gateways, firewalls, or switches.

What are the two most important network layer functions in a datagram network What are the three most important network layer functions in a virtual circuit network?

2 important network-layer functions – forwarding and routing. Forwarding: The router-local action of transferring a packet from an input link interface to the appropriate output link interface (within a single router). Terms ‘forwarding’ and ‘switching’ are often used interchangeably.

What are the major differences between a datagram network and a connection oriented network?

Virtual CircuitsDatagram NetworksPackets reach in order to the destination as data follows the same path.Data packets reach the destination in random order, which means they need not reach in the order in which they were sent out.
