What does IPS thread mean

IPS is Iron Pipe Straight thread. It’s meant to seal on a washer (like the threads the hose for your toilet or faucets attach to). NPT is a tapered thread, designed to seal on the threads, which is why you put pipe tape on them – to lubricate them and help the threads deform and create a seal.

What is IPS threaded?

According to the Googles, IPS is Iron Pipe Straight thread. It’s meant to seal on a washer-shaped gasket (like the threads the hose for your toilet or faucets attach to).

What does IPS fitting stand for?

Iron Pipe Size (IPS or I.P.S.) pipe sizing system based on the inside diameter (ID) of pipe. … During the IPS period, pipes were cast in halves and welded together, and pipe sizes referred to the inside diameters.

Are IPS and NPT threads the same?

National Pipe Tapered (NPT) and Iron Pipe Straight (IPS) are two commonly used thread standards in plumbing. … NPT and IPS nominal sizes are always the same.

What is IPS thread size?

IPS refers to Iron Pipe Size. It’s the measurement of the inside diameter of the pipes. The measurement of your pipe could be ½” IPS. It means that the diameter of the inside of the pipe is ½”.

Is IPS tapered?

But IPS means iron pipe straight thread and galvanized and black iron are tapered.

Is IPS thread tapered?

A tapered thread standard that is used for connecting various sizes of rigid pipe. This standard may be referred to as tapered iron pipe thread (TIPT), National pipe thread (NPT), iron pipe thread (IPT), or iron pipe standard thread (IPS).

Can NPT and NPS be used together?

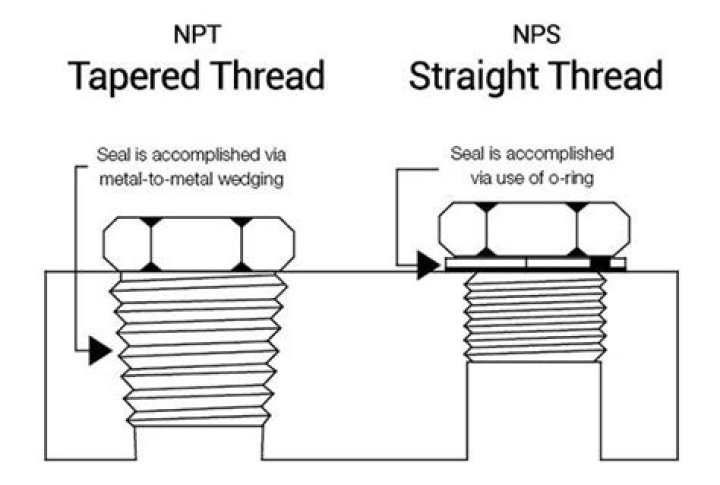

Both NPT and NPS have the same thread angle, shape, and pitch (threads per inch). However, NPT threads are tapered and NPS threads are straight (parallel). … While NPT and NPS threads will engage, they do not seal properly with each other.

Is IPS and NPS the same?

The sizing of IPS refers to the inside diameter of the pipe and is roughly the same as today’s Nominal Pipe Size (NPS). However, the measurement of NPS is not actually the measured size of the inside diameter of the pipe. A male NPT pipe with an outer diameter of 5/8” will have an NPS of 3/8.

Is G thread same as IPS?

The shower arm is ½” NPT(National Pipe Thread Tapered) and IPS(Iron Pipe Size). G is a standard for British pipe threads. Your new NPT shower arm should screw into the pipe fitting in the wall.

Article first time published on

What is PVC IPS?

IPS tubing is a very strong, flexible hose that glues into standard PVC fittings. Its great advantage is that it is very resistant to damage yet extremely flexible. That makes it ideal for a wide range of drip irrigation applications that require tubing that is strong, durable and adaptable.

What is IPS connection type?

Iron pipe size, or IPS, refers to an older system that categorizes the thickness of pipe walls, still used by some manufacturers of iron and polyvinyl chloride, or PVC, piping that connects to faucets for home and business use. …

What kind of pipe is IPS?

IPS (Iron Pipe Size) is a standard that matches Schedule 40 (plumbing) iron pipe or stronger Schedule 80 iron pipe and is larger than PIP (Plastic Irrigation Pipe), a standard that is most commonly used today in agriculture.

What is a NPS thread?

NPS = National Pipe Straight. NPT = National Pipe Thread.

Is there a difference between IPT and NPT?

NPT (National Pipe Threads) also abbreviated as IPT (Iron Pipe Threads) are tapered so that as you tighten NPT male and femal fittings the threads wedge themselves ever more-tightly together. … On the other hand compression fittings and flare fittings use threads that are cut in parallel, without taper.

What is the difference between NPT and MIP?

As previously mentioned, NPT indicates the defined standard from ANSI – but many people use MPT/MIP and FPT/FIP interchangeably. MPT stands for Male Pipe Thread and MIP stands for Male Iron Pipe which both indicate a male fitting with NPT threads.

What is the difference between NST and NPSH threads?

It is often referred to as “fire hose thread”. NST also goes by the initials NH or National Hose. … Fire hoses with National Pipe Straight Hose Thread (NPSH) has the same threads per inch as National Pipe Thread (NPT) but the threads do not taper.

What does IPS stand for on a ball valve?

AbbreviationType of ValveIPSIron Pipe SizeISRSInside Screw RSGVGate ValveMJMechanical Joint

How do you measure straight pipe threads?

Thread dimensions are based on the ID of the pipe. Use a caliper, measuring tape, or ruler to measure the thread diameter of a male thread or female thread. Measure the inner diameter (ID) of the female thread and the outer diameter (OD) of the male thread. This number will help determine the thread dimension.

What is IPS Lamppipe?

Dimensions, Dimensions, Dimensions The most confusing term in ordering lamp parts is IPS. It stands for Iron Pipe Size. It indicates the thread size. … ¼ IPS is commonly used on floor lamps. It measures ½ diameter.

Is PVC a CTS or IPS?

At this point, you’ll most often come across rigid piping in Nominal (rigid copper piping falls under this), IPS (PVC, galvanized and stainless steel all fall under this) and CTS (Copper Tubing Size – soft copper tubing and some styles of CPVC fall under this).

Is PEX an IPS?

For example, PEX pipe may be manufactured to IPS–ID (iron pipe size, inside diameter controlled) sizes with varying thickness to meet pressure requirements, while PEX tube may be manufactured to CTS-OD (copper tubing size, outside diameter controlled) sizes, commonly with a standard thickness of SDR-9 (standard …

Why is it called Schedule 40 pipe?

They devised “Schedule” numbers as designating “the wall thickness in that pipe diameter that would hold a given pressure for a given material tensile strength”. So the pipe thickness which would hold 600psi at 15 ksi material strength was designated as schedule 600/15= 40.

Will male NPT fit female NPS?

NPSM is sometimes used for fluid power systems and male NPTF pipes will seal with an NPSM female pipe. However, a male NPT pipe will not fit in a female NPSM pipe. Being straight, NPSM pipes do not seal as effectively as tapered NPT pipes do.

What does NPS stand for?

Net Promoter Score (NPS) is a customer loyalty and satisfaction measurement taken from asking customers how likely they are to recommend your product or service to others on a scale of 0-10—but there’s a lot more to the story than that.

What does NPS stand for in plumbing?

It is common to identify pipes by inches using NPS or “Nominal Pipe Size“.

What does CTS stand for in plumbing?

CTS stands for Copper Tube Sizing. This is different from other PVC or CPVC pipes, which commonly use NPS, or Nominal Pipe Size, dimensions. When compared to CTS, NPS is larger in diameter.

Are shower arms NPT or IPS?

The shower arm connections are NPT (National Pipe Thread), which has a slightly tapered thread. Teflon tape is used with the threads to lubricate them and help the threads deform and create a seal. IPS (Iron Pipe Straight) threads require gaskets or o-rings to properly seal.

What kind of thread is on a faucet?

In the United States, the thread size are 15/16″-27 for standard-sized male and 55/64″-27 for standard-sized female.

Is galvanized pipe IPS?

1-1/2 IPS Galvanized Steel Pipe Schedule 40 – A112ID – Industrial Railings – Pipes. The pipe is made of aluminum with a satin clear anodized finish. … Aluminum Alloy fittings can be used with galvanized carbon steel, stainless steel, black iron, or aluminum pipe, with no electrolytic corrosion.

What is the difference between CTS and IPS pipe?

CTS stands for Copper Tubing Size while IPS stands for Iron Pipe Size. IPS is larger in diameter compared with CTS (1” CTS versus 1” IPS).
