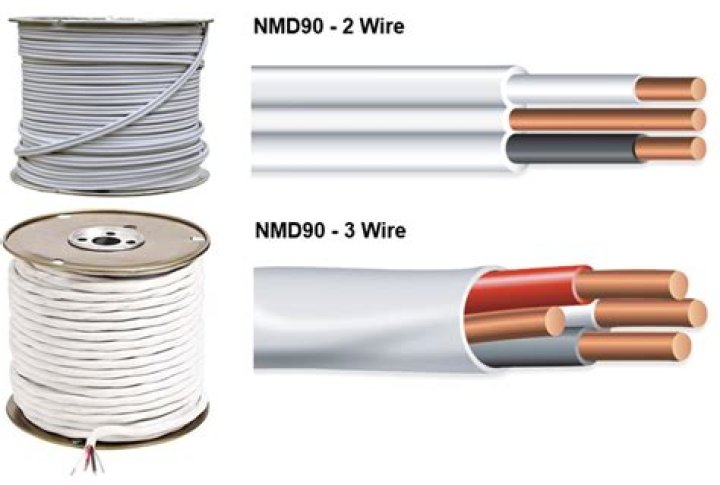

What does nmd90 mean

You are also likely to see ‘NMD’ with a number, such a NMD 7 or NMD 90. ‘NMD’ stands for ‘non-metallic dry’. It means the jacket, or the sheathing, around the wire is not a metallic material and it’s for dry locations. Other types of wiring may have a metal sheathing or be rated for exterior and/or wet conditions.

What does NMD90 indicate?

You are also likely to see ‘NMD’ with a number, such a NMD 7 or NMD 90. ‘NMD’ stands for ‘non-metallic dry‘. It means the jacket, or the sheathing, around the wire is not a metallic material and it’s for dry locations. Other types of wiring may have a metal sheathing or be rated for exterior and/or wet conditions.

What is NMD90 Romex?

Romex SIMpull NMD90 electrical cable pulls 50% easier, is tear resistant, reduces burn-thru and strips easier. Freeze Flex gives you more pliability, easier stripping and added crack-resistance in cold weather. Southwire Romex SIMpull NMD90 is manufactured using annealed (soft) copper conductors.

What type of wire is NMD90?

Aluminum Conductors Northern Cables Inc. manufactures CSA approved aluminum NMD90. Cables are manufactured with three 8000 series aluminum ACM conductors insulated with RW90 cross-linked polyethylene rated at 300 volts from #8 to #2 AWG. The bonding conductor is bare aluminum.

What is the voltage for NMD90 cable?

Rated 300 volts. RoHS compliant. For open or concealed wiring in dry or damp locations where not exposed to mechanical injury.

What's the difference between white and yellow Romex?

For example, white sheathing means that the inner wires are 14-gauge and yellow sheathing indicates that they are 12-gauge. … The National Electrical Code (NEC) says that white or gray must be used for neutral conductors and that bare copper or green wires must be used as ground wires.

What does different color Romex mean?

Romex® Brand SIMpull® NM-B cable is designed for easier pulling, resulting in easier installation. The cable jacket is color-coded for quick size identification; White – 14 AWG, Yellow – 12 AWG, Orange – 10 AWG, and Black – 8 AWG and 6 AWG.

What does UF wire stand for?

”UF” stands for underground feeder; rated for in-ground and damp-area installation. Looks like NM-B cable but the wires are embedded as a group in solid thermoplastic (rather than individually encased in flexible thermoplastic).

What is FAS cable?

Designed for use in the interconnection of security system elements; including fire protective signaling devices such as smoke detectors, fire alarms and two way emergency communication systems.

What is NMW 10 wire?

Underground electrical cable with copper electrical wire for underground electrical wiring. 10 AWG NMWU includes 2 copper wires and one ground wire. Used for underground installations, including direct burial, and for wet and corrosive locations such as wet basements.

Article first time published on

Why is electrical wire so expensive?

These price increases are due to factors such as China’s economic recovery from the pandemic, sustainable green energy stimuluses, and supply disruptions. China’s rising industrial production along with aggressive sustainable energy initiatives accredits the country to being the highest consumer of copper in the world.

How many amps can 12 2 wire carry?

Maximum Breaker Size is 30 amps. You can use a 20 amp circuit breaker with 12/2 Romex as 12/2 wire is rated for 20 amps.

What AWG is 14 2 wire?

Cable TypeNM-BWire Size14 AWG# of Conductors2 Conductors w/ GroundConductor MaterialBare CopperAmpacity15

Does 8 3 wire have a ground?

Cable. The 8/3 cable (also with ground, meaning 4 wires in total) will suffice for 40A, the breaker you already have there. If you need to extend the cable, remember you must make splices inside a junction box! And the junction box cover must remain accessible without tools (pulling an oven out is OK).

Is Teck cable waterproof?

Teck cable is a very versatile power cable because it may be used where subject to limited mechanical damage, it is resistant to water, petrochemicals, and sunlight. It may be used for direct-earth burial and if properly sealed at the connection point, in explosive atmospheres such as gasoline dispensing stations.

What type of Romex should I use?

Wire Gauge or TypeRated AmperageCommon Uses14-2 Romex15 ALighting Circuits12-2 Romex20 ALighting and Outlet Circuits, refrigerator10-2 Romex30 AElectric water heater, baseboard heaters10-3 Romex30 AElectric Clothes Dryer

Is 12 gauge Romex always yellow?

Yellow color-coded cable sheathing encloses 12-gauge wires. Yellow 12-gauge cable is typically used for 20-amp circuits that power general household outlets used for a variety of plug-in appliances.

Can you use yellow Romex for outlets?

Yellow Wire The heavier, yellow ROMEX® is rated at 20 amps. Common applications for this 12-gauge wire are receptacles and three-way circuits. Larger appliances, such as a microwave or welder, require the additional power this wire delivers.

How many receptacles can be on a 20 amp circuit?

The answer to the question how many outlets on a 20 amp circuit is ten outlets. Always comply with the 80% circuit and breaker load rule, allowing a maximum load of 1.5 amps per receptacle. Remember that your circuit, wire sizes, and outlets must be compatible to avoid overheating and electrical hazards.

Can I use 12 gauge wire on a 15 amp circuit?

Because it has even less chance of overheating, 12-gauge wire is also acceptable on a 15-amp circuit.

How many outlets can be on a 15 amp circuit?

Technically, you can have as many outlets on a 15 amp circuit breaker as you want. However, a good rule of thumb is 1 outlet per 1.5 amps, up to 80% of the capacity of the circuit breaker. Therefore, we would suggest a maximum of 8 outlets for a 15 amp circuit.

What is fire alarm cable?

Fire alarm cables are multiconductor electronic cables with fire-rated protection. These products have multiple applications and variations that designate where a type of wire is installed.

What type of cable is used for fire alarm?

BS5839 cable is designed to meet the comprehensive British Standard BS5839-1 detailing a code of practice for the design, commissioning, installation and maintenance of fire detection and fire alarm systems in non-domestic buildings.

What is Securex wire?

SECUREX® II is a 300V 105°C cable specifically designed for the interconnection of security system elements: including fire protective signaling devices such as smoke and fire detectors, fire alarms, and two-way emergency communication systems.

What is the difference between UF and UF-B wire?

UF-B vs. UF-B cables are often confused with UF cable, another type of underground feeder electrical wire. … The regular UF cable is well-suited only to be buried in conduit. The difference between them is UF-B construction indicates a better resistance to water and corrosion, as well as a superior temperature range.

What is UF Romex?

UF (or Underground Feed) cable is necessary any time you’re laying cable underground. The wires in UF are individually insulated. They’re then wrapped together in more insulation for further protection from weather and sunlight. On the other hand, Romex® is wire coated in plastic and is only suitable for indoor use.

Can UF-B wire be buried?

UF-B may be directly buried or installed where exposed to sunlight. When used as an NM cable it must comply with the requirements in NEC 2008 and NEC 2011 Article 334.

How many amps is number 8 Romex good for?

NM, TW, & UF WIRE (Copper Conductor)SE CABLE (Copper Conductor)12 AWG – 20 AMPS6 AWG – 65 AMPS10 AWG – 30 AMPS4 AWG – 85 AMPS8 AWG – 40 AMPS2 AWG – 115 AMPS6 AWG – 55 AMPS1 AWG – 130 AMPS

Can I use 10 3 wire for a dryer?

Absolutely. Assuming that the dryer is a standard issue, it will draw a maximum of about 23 amps. The 30 amp circuit that a 10–3 wire would feed would be sufficient for that load.

What size wire do you need for a dryer?

The NEC requires that dryers have a dedicated circuit with a minimum of 30 amps. This calls for a 30-amp, double-pole breaker wired with 10 AWG wire.

Why is there a Romex shortage?

Covid-19 shutdowns, growing demand, lack of investment, lack of discovery of new deposits, truck driver shortage, strikes, delays at U.S. ports of entry, and supply chain disruptions have all contributed to the problem.
