What does stub out mean in plumbing

A stub-out is the exposed portion of a pipe installed during a plumbing, electrical or gas rough-in that is ready for connection to a fixture or device.

What does stub out mean?

phrasal verb. When someone stubs out a cigarette, they put it out by pressing it against something hard. Signs across the entrances warn all visitors to stub out their cigarettes.

How far should a stub out extend through a finished wall?

The drain stub-out extends from a fitting — usually a sanitary tee — to a point 3 or 4 inches beyond the wall. If you are referring to the rough plumbing, it should be flush with the finished wall. If it has to stick out of the wall, no more 1 inch, or enough pipe to receive the the next fitting.

What is a stub out in construction?

Stub outs are greywater collection plumbing which dead ends at a cap. They provide for for easy diversion of graywater to a future graywater system to be made during the construction of a house, without having to install the complete graywater system.

What is a stub pipe?

stub pipe definition, stub pipe meaning | English dictionary A pipe that carries water and pollutants after being used in houses and businesses.

How long should toilet stubs be?

12 inches is the most common toilet rough-in size. However, it’s useful to know that toilet’s also come in: 10-inch rough-in.

How long should a stub out be?

Wall Drains Like the supply stub-outs, the drain stub-out extends from a fitting — usually a sanitary tee — to a point 3 or 4 inches beyond the wall. The drain, which is usually 2-inch plastic pipe, maintains a minimum slope of 1/4 inch per foot from the stub-out to the point where it ties into a main waste pipe.

What does stub up mean?

stub up definition, stub up meaning | English dictionary 1 a short piece remaining after something has been cut, removed, etc.

Can a toilet and sink share the same drain?

In the US, with modern regulations, in most municipalities, yes, they do. The water and solids from your toilet waste line and the water from your drains end up in the same sewer line, if you have access to a municipal sewer system.

What is a plumbing leave out?

These are sections of the slab that are left unfilled with concrete so that plumbing penetrations may be manipulated and so that the structure may drain in the event of any future leaks. … Think about it: Leave-outs can be as large as 2′ x 2′ and scattered around the footprint of a home or structure.

Article first time published on

What is a sink stub out?

The plumbing stub-outs are the end result of the rough-in phase of plumbing a residential or commercial building. They are usually installed while the walls are still uncovered; and after the drywall work and painting is complete, a plumber comes back and hooks them up to the plumbing fixtures.

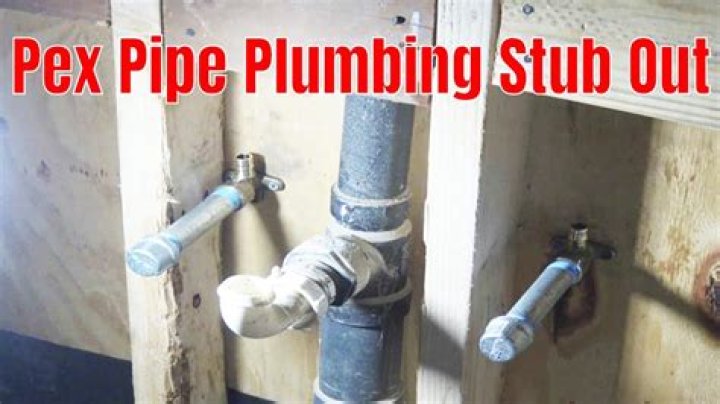

What is a PEX stub out used for?

Stub out elbows are primarily used when installing PEX pipe to stub out of the wall and allow for further connection of outlet stop valves and plumbing fixtures. Stub out elbows with ears can be nailed to a wooden surface, such as a stud.

What is stub in and stub out in piping?

It looks like the branch is seated “onto” the header pipe. Stub-on is generally used when the branch is equal to or one size smaller than the main pipe. For “stub on,” the stub extends only to the outside of the main pipe. Fabricated Piping Branch Connections.

What is stub in and stub on?

For “stub in,” the stub or branch pipe extends to the inside of the main pipe. The hole in the main pipe is (usually) beveled to allow for a full-penetration weld. For “stub on,” the stub extends only to the outside of the main pipe. The stub may be beveled, but if not only a fillet weld can be done.

What is stub in connection?

The stub-in is usually used when the branch is more than one size smaller than the main pipe. The stub-in connection avoids the cost of buying fittings and saves installation time because it requires welding only once around the stub hole instead of three times around the two connections to the main pipe and joints.

How high is a sink drain stub out?

Re: Standard height for under sink connections? The drain stub out can be 12″ from the floor to accommodate a disposer, even if you don’t plan on installing one. The H&C water could be 16″ off the floor. These measurement should work for you.

What size stub out for bathroom sink?

Pipe Size. The pipe stub-outs under your sink are branch pipes that connect to 3/4-inch main pipes, and they always have a diameter of 1/2 inch. Plumbers conform to this standard whether installing copper, chlorinated polyvinyl chloride (CPVC) or polybutylene (PB) pipes.

Can you replace a 10 inch rough-in toilet with a 12-inch rough-in toilet?

The rough-in for your bathroom plumbing should match the rough-in for the toilet. Even if a toilet is designed for a 10-inch rough-in, you can still install it in a space with a 12-inch rough-in.

How far should stubs be from water pipes?

Plumbers have different preferences when it comes to the ideal length, according to a discussion at Plbg.com, but most make them from 3 to 6 inches long. That allows them to cut the stub-out to the necessary length rather than having to lengthen a stub-out that’s too short.

Where do I stub my toilet water?

Use a 90-degree elbow or stub-out fitting to insert the water line into the surface plane of the wall. Be sure to make it parallel to and 8 inches above the floor surface. Find an adjacent wall stud and secure the copper water piping to it with an insulated pipe hook.

Why is poop coming out of my shower drain?

When your sewer line is clogged, the water can’t go down the drain. Instead, it flows back up the pipes and comes out at the lowest point — usually the shower drain. … If the toilet bubbles (gurgles) or the water level in the toilet rises, you may have a clogged sewer line.

Does toilet water and shower water go down the same drain?

In the US, with modern regulations, in most municipalities, yes, they do. The water and solids from your toilet waste line and the water from your drains end up in the same sewer line, if you have access to a municipal sewer system.

Can a toilet go where a shower was?

Can you put a toilet where a shower was? The simple answer is yes, you can put a toilet where a shower was, but the move doesn’t come without its issues. This isn’t a simple DIY job. You are going to have to remove at least one wall and, hopefully, only a small portion of the floor.

What is a sanitary stub?

Stainless steel sanitary weld type a stub ends are used on permanent installations where process piping and equipment can be cleaned in place (CIP) and removal from the system is not required.

What are stubs in field?

The stubs are the organic waste which will be formed naturally. The stubs can be decomposed naturally and it can be converted into organic manure. The organic manure is formed by grinding it or it can be used as fertilizer for the soil by injecting it into the soil.

What is stub up length?

The ‘Stub-up’, or 90º bend is usually the first bend that an electrician learns. A 90º bend simply consists of one 90º bend at a desired distance from one end of a length of conduit.

What does it mean to stub out electrical?

Plumbing and electrical stub-out is performed. ‘Stub-out’ means that the major components of the plumbing/electrical parts are installed inside the wall and through the ReBar (they will be finished at a later date). Electric wiring will be installed from your electric panel to the equipment. …

What is a stub soil stack?

A stub stack is a cut-off version of an SVP, which is fitted with an air admittance valve to prevent foul smells. The stub stack should still be a 100mm diameter pipe. Rules on the use of stub stacks are commonly forgotten.

What do plumbers call toilets?

Lavatory. While sometimes used by the general public to mean a bathroom or washroom, the plumbing industry uses lavatory to mean a bathroom washbowl or basin permanently installed with running water. The plumbing industry uses the term “sink” in reference to kitchen sinks.

Do I need a stub out with PEX?

#38; they flop around. Even cpvc would have been a better stub out, cause you can atleast make that square & rigid. Copper stubs is my weapon of choice. Pex is fine to get from point “A” to point “B”, but damn, make sure your plumber stubs out in something that looks decent & is square to the wall.

How do you support PEX under the sink?

In areas that are concealed, like under a kitchen sink or vanity cabinet, you can eliminate a joint by running PEX supply directly to the shutoff valve. Use a drop-ear bend support to hold the tubing in a tight bend (right). There are several types of shutoff valves that connect directly to PEX.
