What does superheat and subcooling mean

While superheat indicates how much refrigerant is in the evaporator (high superheat indicates not enough, low superheat indicates too much), subcooling gives an indication of how much refrigerant is in the condenser. … Higher subcooling indicates excess refrigerant backing up in the condenser.

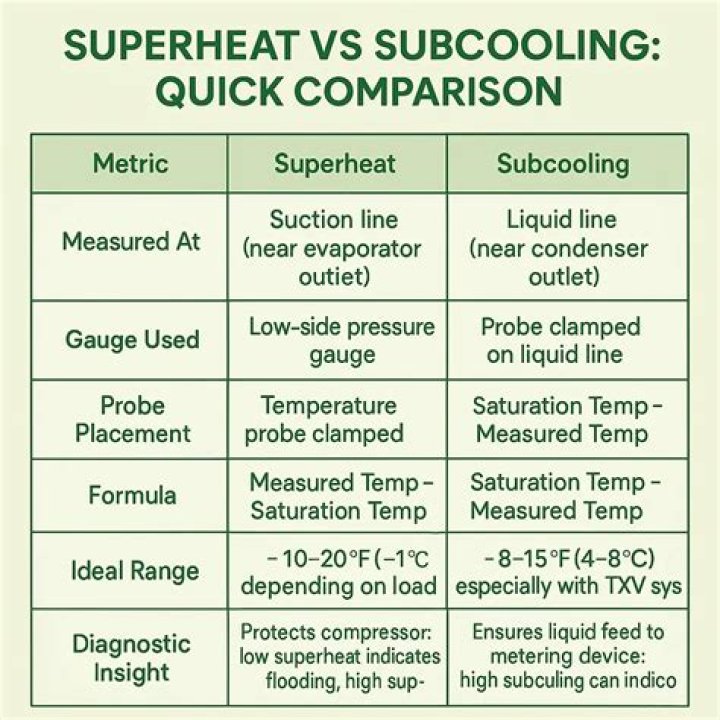

How do you explain superheat and subcooling?

In the refrigeration cycle, subcooling is an important process that ensures liquid refrigerant enters the expansion device. Key takeaways: superheat occurs in the evaporator to protect the compressor, and subcooling occurs in the condenser to protect the expansion device.

What happens if superheat is too high?

Too high of a superheat can cause the heat of compression to increase, causing the temperature at the discharge valves to increase. If the temperature increases beyond its safe operating temperature, it will cause damage to the compressor.

What is a good superheat for 410a?

For most systems, 20F to 25F should be measured near the compressor and 10F at the evaporator.

Why do we measure superheat and subcooling?

The refrigerant gas is compressed, cooled and expanded to reduce its temperature and pressure, and evaporated to remove heat from living spaces or refrigeration systems. Measuring superheat and subcooling can help you troubleshoot your refrigeration system.

Where is superheat measured?

SUPERHEAT The Vapor Line Temperature is measured on the large suction line near the condensing unit (A). Many refrigeration personnel will measure at the outlet of the evaporator but in HVAC you are more concerned with protecting the compressor than maintaining full capacity of the evaporator coil.

What is ideal superheat?

Superheat for most systems should be approximately 10F measured at the evaporator; 20°F to 25°F near the compressor. If the suction pressure is 45 psi, (which converts to 22°F) and the suction temp is 32°F, the system still has 10°F of superheat.

What does a low superheat indicate?

A low or zero superheat reading indicates that the refrigerant did not pick up enough heat in the evaporator to completely boil into a vapor. Liquid refrigerant drawn into the compressor typically causes slugging, which can damage the compressor valves and/or mechanical components.

What is proper subcooling for 410A?

Most heating and cooling systems should operate at a superheat of 10F at the evaporator and between 20F to 25F at the compressor. if your HVAC system has a thermostatic expansion valve (TXV), the subcooling should be between 10F and 18F.

Does adding refrigerant increase superheat?

4. Add refrigerant to lower the suction superheat. Recover refrigerant to increase the suction superheat. Note that you should never add refrigerant if the superheat is already 5F or less, even if the charging chart shows 0°F.

Article first time published on

Why is superheat bad?

A heat pump that is operating at low superheat does not have enough heat load for the excess amount of refrigerant that is available in the coils of the evaporator resulting in liquid refrigerant entering the compressor valves and causing damage to the compressor and other mechanical components of the refrigeration …

How can I reduce superheat?

Turning the adjusting screw clockwise will increase the static superheat. Conversely, turning the adjusting screw counterclockwise will decrease the superheat.

What happens if subcooling is too low?

A reminder why subcooling is important: Among other things, if the subcooling is too low, the condenser will “run out of” refrigerant prematurely at higher load conditions, overheating the compressor and reducing performance and efficiency.

What causes low head pressure?

Low condensing (head) pressures — Because some of the discharge gases are being short cycled in and out of the compressor’s cylinder, there will be a low refrigerant flow rate to the condenser. This will make for a reduced heat load on the condenser, thus reducing condensing (head) pressures and temperatures.

How can I increase my superheat?

To adjust the static superheat, turn the valve’s setting stem. Turning clockwise increases static superheat and effectively reduces refrigerant flow through the valve. Turning counterclockwise reduces static superheat and increases refrigerant flow.

What is normal pressure for 410A?

A normally operating R-410A system with the same condensation temperature of 120 degrees and a 45 degree evaporator saturation temperature will have a high side pressure of 418 psig and a low side pressure of 130 psig.

How do you read subcooling?

If we measure the temperature on the liquid line exiting the condenser coil then we know the end temperature after the refrigerant has lowered in temperature. Subtract the lower temperature measured on the liquid line from the saturated temperature and you have subcooling!

What causes high subcooling and low superheat?

If superheat is high and sub-cooling is high: Could have blockage in coil, orifice or line set. If superheat is low and sub-cooling is low: Orifice could be too big, there is no orifice in the unit of the orifice is stuck and refrigerant is by-passing it. Superheat is telling you what is going on in the evaporator.

Why is superheat important?

“Measuring superheat is important because it can prevent damage to the air conditioner and make it run more efficiently. Superheat is the difference between the boiling point temperature of the refrigerant in the evaporator coil and the actual temperature of the refrigerant gas as it leaves the evaporator.

Do you charge 410A upside down?

Connect the yellow hose on the manifold gauge to the 410A refrigerant tank. Turn the handle on top of the tank to release refrigerant from the tank. Flip the tank upside down so that it will charge the system in a liquid state.

How do you charge a unit with superheat?

1. THERE ARE TWO WAYS TO CHARGE A SYSTEM USING THE. SUPERHEAT METHOD: USING DRY BULB RETURN AIR TEMPERATURE. …
2. Purge gauge lines. Connect service gauge manifold to base-valve service ports. …
3. suction line service valve. Ensure the thermometer makes adequate contact and is insulated.

Is 410A being phased out?

R-410A is scheduled for elimination from all new systems in 2023.

What happens if you have no superheat?

A low or zero superheat reading indicates that the refrigerant did not pick up enough heat in the evaporator to completely boil into a vapor. Liquid refrigerant drawn into the compressor typically causes slugging, which can damage the compressor valves and/or internal mechanical components.

What are some typical problems when the evaporator superheat reading is too high?

Excessive or high superheat is an indication of insufficient refrigerant in the evaporator coil for the heat load present. This could mean that not enough refrigerant is entering the coil or this could also indicate an excessive amount of heat load on the evaporator coil. pressures will be lower than normal.

What does negative subcooling mean?

In instances when HVAC systems have negative subcooling values, it is an indication that there will be a move opposite of standard subcooling (or an increase in temperature). … In a nutshell, when a cooling system superheats refrigerant instead of cooling it, the result is the negative subcooling value.

What does the term starved evaporator mean?

A starved evaporator coil is a condition in which not enough refrigerant has been supplied through the total coil length. Therefore, expansion of the refrigerant has not occurred through the whole coil length, resulting in poor coil operation and too-low heat exchange.

Will adding refrigerant lower superheat?

An overcharged system tends to have high subcooling. The elevated compressor head pressure and temperature can cause overheating and premature failure. … Adding refrigerant decreases leaving evaporator superheat by increasing system pressure and increasing the flow of refrigerant through the evaporator.

What does low airflow do to superheat?

Low condenser airflow increases condensing temperature thus increasing the pressure in the condenser coil. … The result is lower superheat, high suction pressure, high discharge pressure and lower sub-cooling.

What causes low discharge superheat?

The most common cause of low Discharge Superheat is flooding to the compressor. That condition will more than likely be associated with an Electronic Expansion Valve over feeding the evaporator. It could also point to an Accurator or check valve issue.

What is the most common cause of Txv hunting?

Common reasons for TEV hunting Oversized valve – The expansion valve may be oversized for the application or operating condition of the system. If the valve capacity significantly exceeds the requirements of the system, when the valve attempts to adjust to system load it overcompensates because it is oversized.

What should the superheat be on a walk in freezer?

A minimum superheat of 20°F is required at the compressor. Evaporator superheat for coolers (6-10 degrees) and freezers (4-8 degrees).
