What does the ice dispenser solenoid do

The water flowing to the dispensers is controlled by a solenoid, meaning the solenoid transmits a message to the refrigerator’s water inlet valve, telling the part when it’s time to open. Over time, the coils in a solenoid can become worn or damaged, which can cause the part to malfunction.

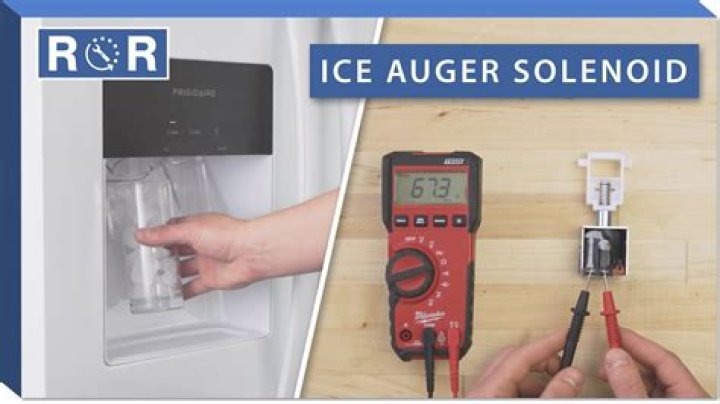

How do I know if my ice solenoid is bad?

Touch the probes to each terminal on the solenoid coil (Fig. 4). The meter should read in the range of 200 to 500 ohms. If the meter needle does not move, the coil is bad.

Why did my refrigerator stop dispensing water?

Often times, the water dispenser in your fridge may have stopped working due to a frozen water supply tube. This is a common problem in side-by-side refrigerators in which the tube that connects your water supply to the door where the water dispenser is frozen due to improper temperatures.

How do you test an ice dispenser switch?

To determine if a dispenser switch is defective, use a multimeter to test each switch for continuity. If a dispenser switch does not have continuity, replace it. The auger motor spins the auger blade and pushes the ice through the dispenser chute.

What can cause my ice maker to stop working?

• Pause feature enabled.
• Water line malfunction or setting.
• Clogged filter.
• Faulty water inlet valve.
• Thermostat set too low.

Why is the refrigerator not making ice?

Cause: A common cause for a clog is frozen water in the line. … Cause: There is also a possibility that the water filter for the ice maker is clogged. Fix: Locate and replace the water filter. Filters for ice makers are typically located inside the refrigerator (to keep them from freezing).

How do I know if my ice maker is working?

1. If the icemaker mold is empty, you can manually pour about 4 ounces of water in the icemaker mold.
2. Wait about 2 hours.
3. If the icemaker has dropped ice cubes out from the mold, you know the icemaker itself is working.

Why does my Whirlpool refrigerator stop making ice?

A clogged water filter, kinked water line hose, or defective water inlet valve can restrict the water flowing to an ice maker. When this happens, ice production will be limited or completely stop.

Why is my Frigidaire ice maker not getting water?

If the water inlet valve is defective, or if it has insufficient pressure, it won’t allow water to flow through. As a result, the ice maker won’t make ice. … If the water inlet valve has sufficient pressure and is getting power, but the ice maker won’t fill with water to make ice, replace the water inlet valve.

How do I reset my ice maker?

Turn The Ice Maker Off and On Again This is a simple matter of resetting the power to your ice maker. By flipping the switch off and back on, you may be able to reset the functionality so that your ice maker begins to dispense ice again.

Article first time published on

How do you test an ice dispenser motor?

Push on the ice dispensing lever as you watch the auger motor at the back of the freezer. If the motor jumps slightly, but fails to turn, chances are the motor is frozen from moisture, says Appliance-Repair-It.com.

Why does my ice maker work but not my water dispenser?

If the evaporator coils are frosted over, part of the defrost system has likely failed. The water inlet valve is an electrically-controlled valve that opens to supply water to the dispenser and ice maker. If the water inlet valve is defective, or if it has insufficient pressure, it won’t allow water to flow through.

How do you bypass the ice maker sensor?

1. Open the door to your freezer and look for a manual shutoff switch, which can turn your ice maker on and off, bypassing the optical sensor. …
2. Turn the switch on or off to start or stop your ice maker and bypass the optical sensor.

Why is the red light flashing on my Whirlpool ice maker?

Open the freezer door and observe the red status light next to the ice maker’s on/off switch. Result: … The red status light should be steady on. If the light continues to flash, your optics are either blocked in some way or they need to be replaced.

Why is the red light flashing on my KitchenAid ice maker?

The lights may blink if the ice maker is jammed with ice. KitchenAid recommends removing ice that has collected on the ejector arm with a plastic utensil.

How do I force my ice maker to cycle?

If your gear has a small notch in it, then you may need a flat-head screwdriver. Use it to turn your gear counterclockwise until you hear the mentioned click. In both situations, the click that is heard will force the ice maker to cycle.

Why did my Frigidaire ice maker stop working?

This usually is due to the water filter being clogged or a restricted water supply. It is recommended to change the water filter first but if the condition still occurs then you want to check for a saddle valve, a water valve not turned on all the way or a kinked water supply line.

How do I unfreeze my ice maker water line?

Apply heat with a hairdryer to the ice maker fill tube, which is usually a white, rubber-like hose. Hold the nozzle of the hairdryer at the front of the ice maker so that the heat will blast into the fill line. Set the hairdryer to its lowest heat setting to avoid melting the plastic lines and parts of the ice maker.

How do you manually start an ice maker?

To manually start a cycle, either grasp the ejector and rotate upward (CW fr. front), or use a screwdriver to turn the smaller gear (CCW) if yours has a slot for this. Once you turn it a short distance, you’ll hear a little ‘click and the unit will start to run.

How do you reset the ice maker on a Whirlpool refrigerator?

1. Remove the ice tray and cover plate (or just the ice tray). …
2. Turn the switch from on to off.
3. Unplug the ice maker at the mains.
4. Wait 10 minutes.
5. Plug the ice maker in again.
6. Turn the switch from off to on.
7. Replace the ice tray and the cover plate as necessary.

Why is refrigerator working but freezer not freezing?

Unplug the refrigerator and check the condenser coils for dust and dirt buildup. Clean the condenser coils if they’re dirty. Continue to clean the coils when you perform routine refrigerator maintenance. Check to see if the condenser fan works when you see the freezer not getting cold enough.

What causes a freezer to stop freezing?

Causes: If your freezer won’t freeze, most likely the condenser coils are dirty which reduces the overall cooling capacity of the freezer. Evaporator fan motor is malfunctioning, and since it’s in charge of circulating the air throughout the freezer, this will need to be resolved, pronto.

Why is my Frigidaire refrigerator not dispensing water?

Make sure the water filter is positioned properly – simply remove and re-install the water filter to double check. The water filter may be clogged or overdue for replacement. If water is dispensing slowly or not at all, or your water filter is older than 6 months – it’s time to replace.

Is there a reset button on Frigidaire ice maker?

There is no designated reset button on Frigidaire ice makers. There is only a power button or switch, but it will perform the same function as a reset button. You will need to turn the ice maker on and off in order to reset it.

Will unplugging my fridge reset the ice maker?

Leave the refrigerator unplugged for 5 minutes. This will allow the ice system to reset. After 5 minutes, replug the refrigerator and turn the switch back on. This should cause the ice maker to start working again.
