What does Type B Tympanogram mean
By Andrew Hansen

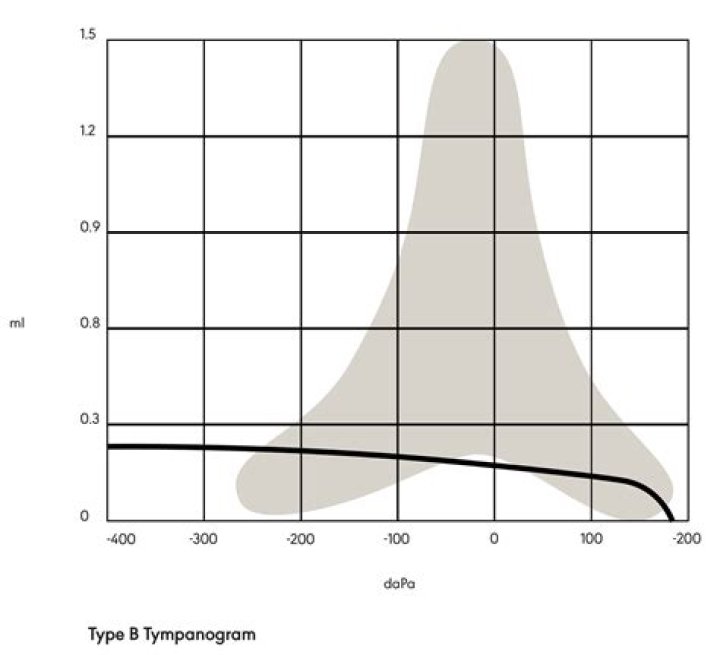

Type B tympanograms are a flat line (Figure 2), which is consistent with middle ear pathology, such as fluid or infection behind the ear drum
What causes a type B Tympanogram?
The blunted type “B” tympanogram can be seen when there is a small middle ear effusion. A middle ear cavity that contains a large effusion instead of air will reflect most of the sound energy backward and have a flat line type “B” tympanogram.
What is Type B deafness?
Type B Tympanogram – Audiologists see a Type B usually when there is fluid filling up the middle ear space (red line). They can also see a Type B when there is a hole in the eardrum (blue line) that will be higher on the graph than the fluid. Conductive hearing loss is often associated with Type B.
What kind of condition does a type B Tympanogram indicate?
A Type B tympanogram shows no clear peak pressure and is relatively flat. If the ear canal volume is normal, the Type B tympanogram may be reflective of an advanced stage of otosclerosis or a middle ear filled with an effusion (possibly caused by an ear infection).What type of Tympanogram is considered normal?
Tympanogram tracings are classified as type A (normal), type B (flat, clearly abnormal), and type C (indicating a significantly negative pressure in the middle ear, possibly indicative of pathology).
Can tympanometry detect Eustachian tube dysfunction?
Tympanometry is typically used to detect or rule out several things: the presence of fluid in the middle ear, a middle ear infection, a hole in the eardrum (perforation), or Eustachian tube dysfunction.
What causes inflamed Eustachian tubes?
The most common cause of Eustachian tube dysfunction is when the tube gets inflamed and mucus or fluid builds up. This can be caused by a cold, the flu, a sinus infection, or allergies. Some people are at greater risk for Eustachian tube dysfunction.
How do you interpret Tympanogram results?
- Type A. Suggests normal middle ear functioning. Peak is between +/- 100 daPa. Compliance from 0.3-1.5 ml.
- Type Ad. Suggests a highly compliant middle ear system. Peak is between +/- 100 daPa. Compliance is more than 1.5 ml.
- Type As. Suggests a less compliant middle ear system. Peak is between +/- 100 daPa.
How do you interpret tympanometry results?
To interpret tympanometry tests, you’ll mainly look at the peak of the graph. Tympanogram results are categorized as either a Type A, Type B, or Type C. Type A results are considered normal. Type B results are considered abnormal (or “flat”) and often mean the patient has fluid in the middle ear.
What are the 4 levels of deafness?- Mild Hearing Loss.
- Moderate Hearing Loss.
- Severe Hearing Loss.
- Profound Hearing Loss.
What are the 5 levels of hearing loss?
Degree of hearing lossHearing loss range (dB HL)Mild26 to 40Moderate41 to 55Moderately severe56 to 70Severe71 to 90
What are 4 types of hearing loss?
- Sensorineural Hearing Loss.
- Conductive Hearing Loss.
- Mixed Hearing Loss.
- Auditory Neuropathy Spectrum Disorder.
- Talk to Your Audiologist.
What is bilateral Tympanosclerosis?
Tympanosclerosis is the medical term for scarring of the ear drum. Scarring occurs after the ear drum is injured or after surgery. Commonly a small white area can be seen after a person has had middle ear ventilation tubes.
What are normal tympanometry results?
Typically for children a volume range of 0.5 to 1.5 cc is typically considered normal, while for adults the range is 0.5 to 2.00 cc.
What does ad type Tympanogram indicate?
At the other extreme, a very deep A (Ad) tympanogram (the “d” refers to deep) indicates a highly compliant middle ear system, or tympanic membrane. A type “Ad” tympanogram is often seen with a scarred and hyper-compliant tympanic membrane or, less commonly, a discontinuity of the ossicular chain.
What are the symptoms of a blocked eustachian tube?
- Ears that hurt and feel full.
- Ringing or popping noises in your ears.
- Hearing problems.
- Feeling a little dizzy.
What is the best decongestant for eustachian tube dysfunction?
Pseudoephedrine is an ingredient found in oral decongestants. Oral decongestants are used in the treatment of eustachian tube dysfunction (ETD) and can help decrease peritubal edema provoked by allergies or URI. Oxymetazoline is an ingredient found in topical decongestants.
Can a blocked eustachian tube cause neck pain?
The nerve supply to the eustachian tube is complex, and thus any discomfort may contribute to referred pain to other areas of the head and neck.
Will an MRI show a blocked eustachian tube?
CT and MRI are best suited to identifying features associated with obstructive or patulous Eustachian tube dysfunction, though true assessments of function have only been achieved with contrast enhanced radiographs and scintigraphy.
What does a Tympanogram measure?
Tympanometry measures ear canal volume (ECV), tympanic membrane mobility (compliance), and middle ear pressure (pressure). The ability to measure tympanic membrane mobility and middle ear pressure is useful in the assessment of middle ear condition and functioning, which can contribute to conductive hearing loss.
Why is tympanometry 226 Hz?
The most commonly used probe tone has been 226Hz. This probe tone has some definitive advantages when testing the adult ear. That’s because the adult middle ear system is stiffness-dominated (compliance) at this frequency and the effects of mass and friction are minor.
What level of hearing loss is considered a disability?
A person will be considered disabled if their average threshold for air conduction hearing is at least 90 decibels and their average threshold for bone conduction hearing is at least 60 decibels, or if they score 40 percent or less on a word recognition test.
How much money can a deaf person get through SSDI?
This is the basic amount used to establish your benefit. SSDI payments range on average between $800 and $1,800 per month. The maximum benefit you could receive in 2020 is $3,011 per month.
What is legally deaf?
Hearing loss reported in the severe and profound stages tends to be considered “deaf” by hearing professionals. So if you really wanted to get into categories, you could easily consider the definition of “legally” deaf to begin when the hearing loss in your good ear reaches a range of 70-89 dB.
What percentage of hearing loss is considered severe?
Mild hearing loss: Hearing loss of 20 to 40 decibels. Moderate hearing loss: Hearing loss of 41 to 60 decibels. Severe hearing loss: Hearing loss of 61 to 80 decibels. Profound hearing loss or deafness: Hearing loss of more than 81 decibels.
Why am I hearing these high pitched frequencies?
Tinnitus happens when we consciously hear a sound that does not come from any source outside the body. It is not a disease, but a symptom of an underlying problem. The noise is usually subjective, meaning that only the person who has tinnitus can hear it. The most common form is a steady, high-pitched ringing.
Is hearing loss in one ear considered a disability?
Deafness in one ear is not a disability under the American with Disabilities Act, as amended by the ADA Amendments Act, because the plaintiff could not establish she was substantially limited in the major life activity of hearing, the Eastern District of Pennsylvania has ruled in Mengel v.
What are the two main types of deafness?
- Conductive hearing loss.
- Sensorineural hearing loss.
- Mixed hearing loss.
What is the most common cause of conductive hearing loss?
According to Rothholtz, the most common cause of conductive hearing loss is a buildup of earwax that muffles sound. Rothholtz adds that some other types of conductive hearing loss include: Otosclerosis: This causes bone from the cochlea to grow onto the stapes bone in the middle ear, making it more difficult to hear.
What illness causes deafness?
- Otosclerosis. This is a middle ear disease. …
- Ménière’s disease. This is an inner ear problem. …
- Autoimmune inner ear disease. …
- Ototoxic medications. …
- Very loud noise. …
- Acoustic neuroma. …
- Physical head injury. …
- Presbycusis.
What is bullous Myringitis?
Bullous myringitis is an infection of the tympanic membrane (the eardrum). Small fluid-filled blisters form on the eardrum and cause severe pain.
