What gauge wire is doorbell wire

Doorbells are typically wired with 18 gauge wire, also referred to as “bell” wire. Terminals on the buzzer/bell are commonly labeled “F”, “R”, and “C”.

Can I use 22 gauge wire for a doorbell?

22-Gauge Wire (Unusable) A 22-gauge wire is a bit on the thin side and may not provide all the power that the Ring Video Doorbell Pro needs. To determine if your wire is 22-gauge, unfold a standard paper clip.

Can I use phone wire for doorbell?

Thermostat wire, bell wire, or phone cable can be used for any 12-16-24 volt doorbell system, but can never be used for 120-240 volt applications, despite being rated for ≤150 volt.

Can I use stranded wire for doorbell?

If you purchase the different pieces of a doorbell a la carte, be sure to buy a length of two-stranded and three-stranded wire, as your bell will not sound without these. … Simply attach the (DISCONNECTED) end of the two-stranded wire to a draw wire, which makes it easy and safe to pull on from either side.

Can doorbells use Cat 6?

Most doorbell cameras either don’t need them or don’t recommend them, and some also require CAT6 cables instead. It’s important that a homeowner research what cables might be needed before they start using CAT5, in case that’s not going to work for that particular brand and type of doorbell.

What size is 18 gauge wire?

AWG #Diameter (inch)Area (mm2)150.05711.6502160.05081.3087170.04531.0378180.04030.8230

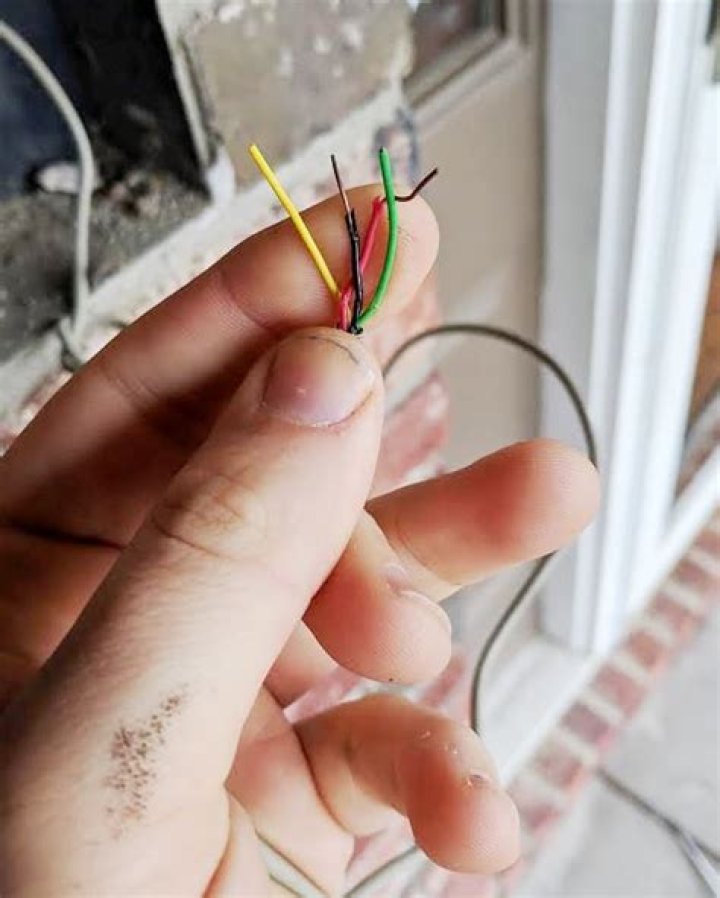

What do doorbell wires look like?

Ground, Neutral & Hot Wires: These three wires connect the doorbell transformer to your home’s electrical system. Typically, the ground wire will be green, the neutral wire will be white, and the hot (or live) wire will be black.

Is Bell wire solid or stranded?

A: Yes, this wire is a solid core wire, two strands.

What size is 16g wire?

GAUGESWG DIAMETER (Inches)AWG DIAMETER (Millimeters)12 Gauge Wire0.1040 in2.052 mm14 Gauge Wire0.0800 in1.626 mm16 Gauge Wire0.0640 in1.290 mm18 Gauge Wire0.0480 in1.024 mm

How can you tell the gauge of a wire?

Look at the insulation on the cable. Search for text written on the insulation. The last numbers in each string of text represent the AWG of the wire.

Article first time published on

How many wires do I need for a doorbell?

Doorbell systems with two doorbell switches use six wires. Two wires exit a transformer and two wires travel to each doorbell switch. The transformer supplies a low-voltage power supply for the home’s centralized alarm systems, including the doorbell and sometimes fire-safety systems.

Where is a doorbell transformer?

The doorbell transformer may be located on the wall near your security alarm keypad or control station. Look in the utility room: A lot of doorbell transformers are installed in the utility rooms of your home’s HVAC unit or furnace.

What is the standard doorbell voltage?

Doorbells operate on very low voltage. Older models typically require just 8 to 20 volts of electricity — most often 16 volts — while newer models take 24 volts of electricity.

How hard is it to wire a doorbell?

Installing a hardwired doorbell is a project that almost anyone can do successfully. The most difficult part of this project will be running the doorbell wiring. For aesthetics, you will want to run the wiring concealed, and that can be somewhat challenging. … Drill a 1-inch hole for the wires.

How do you hardwire a ring doorbell without an existing doorbell?

1. Insert the level tool into the front of your Ring device. …
2. Using the level tool, position the Ring Doorbell where you want it installed. …
3. Mark off the mounting holes using a pencil. …
4. Screw your Ring doorbell into the wall.

Which is thicker 18 or 20 gauge wire?

AWG stands for American Wire Gauge – the thicker a conductor is the lower its gauge number will be. … In the above chart we compare the resistance and breaking force of 16, 18, and 20 AWG wire. Not only is 16 AWG roughly 3 times stronger than 20AWG wire, it also has 86.6% less resistance than 20 AWG wire per foot.

Is AWG the same as gauge?

AWG is American Wire Gauge. So no, there’s no difference. It’s just a standardized way to express thickness.

Which is thicker 12 gauge or 14 gauge wire?

The diameter of 12 AWG wire is 0.0808 inches, while 14 AWG is 0.0641 inches. The thickness of 12 AWG wire is 26% more than the thickness of 14 AWG wire.

Which is thicker 10 gauge or 12 gauge wire?

The general rule of thumb is that the smaller the gauge number, the thicker the cable.

What is 16 AWG wire used for?

Choosing Electrical Wire Size 16-gauge are used for light-duty extension cords supporting 13 amps. 14-gauge are usedfor light fixtures, lamps, lighting circuits with 15 amps.

What AWG 16?

AWG stands for American wire gauge. It relates to the diameter of the wire. The more current capacity it can carry, the lower the AWG. A thicker 16AWG can carry 13 Amps, but a thinner 18AWG can only carry 10 Amps.

How many volts can bell wire carry?

Bell wire, often used for bell circuits or for wiring loudspeakers, is in most cases, only suitable for extra-low voltage (50 V or less).

What is Bell wire?

: a small-size wire insulated with paraffin-coated cotton and used especially for electric bell circuits.

What gauge is garage door wire?

041A0323 is a 2 conductor, 22 gauge bell wiring set (red/white) that is used to wire the wall mounted door controls and operation terminals on various garage door openers. Check the manual for your specific model number before ordering to ensure compatibility.

Is 16 or 14 gauge bigger?

16ga steel is . 065” inches thick, that is about 1/16th of an inch thick. 14 gauge in comparison is . 083 inches thick which doesn’t sound like much except it is almost 30% thicker (27.6% to be exact).

Is 12 gauge wire always yellow?

Yellow color-coded cable sheathing encloses 12-gauge wires. Yellow 12-gauge cable is typically used for 20-amp circuits that power general household outlets used for a variety of plug-in appliances. Dedicated appliance circuits also call for 20-amp circuits in most cases.

What is 8 gauge wire rated for?

#8 Gauge THHN Copper Stranded Wire is the most popular single conductor copper wire we carry and is RATED FOR 55 AMPS @ 90°C.

What breaker is my doorbell on?

The doorbell is attached to a transformer to step down the voltage. This transformer will be on a 15 or 20 amp breaker.

Can doorbell wires shock you?

You don’t have to be afraid of working with electricity. If you come in contact with the wires, the doorbell circuit will not give you a shock. A transformer reduces the 120-volts carried by most electrical circuits to the 10 to 16volts needed to run the doorbell.

Do doorbell transformers plug in?

With the plug in transformer you can either plug it in inside and drill a small hole where you are going to locate your doorbell or you can plug it into an outlet outside near the doorbell and run the wires to the doorbell.

How do I know what voltage my doorbell transformer is?

1. Disconnect your existing doorbell. …
2. Set the knob on your multimeter to AC (the V with a wavy line on top or next to it).
3. Connect the two probes from the multimeter to the wires from your doorbell.
4. Read the voltage level on your multimeter’s display.
