What is a bypass valve for water

Bypass valves allow you to turn off water to the softener for maintenance while still having water through your house pipes. Single Bypass Valve: Included with the softener. The inlet and outlet valve connects to the bypass valve.

What is the purpose of a bypass valve?

Controlling pump output. Pressure bypass valves serve to control pressure in a system by diverting a portion of the flow. Typically they bypass fluid from the outlet of a pump back to the reservoir.

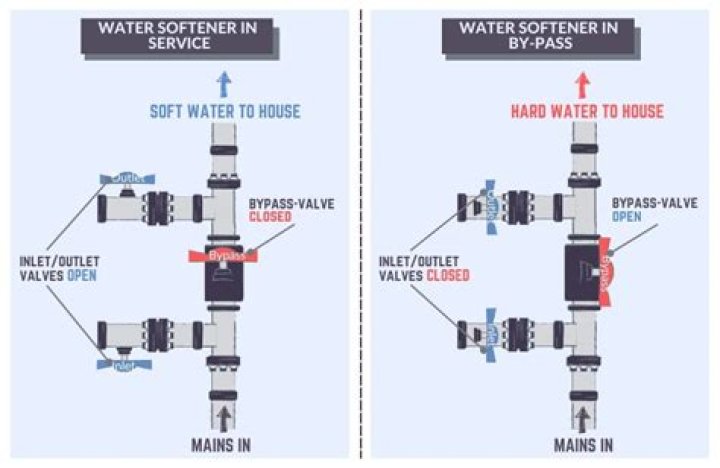

Should water softener bypass valve be open or closed?

The outlet, inlet and bypass should all be facing the same direction. You can easily turn off your water softener by closing the outlet and inlet valves by about a quarter, then open the bypass valve with another quarter turn. The outlet, inlet and bypass should all be facing the same direction still.

What is a plumbing bypass?

A bypass is a system of pipes, pumps, hoses, and valves that help divert the flow from a pipe section that is under repair or rehabilitation. This temporary diversion allows the flow to continue when the primary line is blocked for rehabilitation.

Do I need an automatic bypass valve?

Because manual or fixed position valves do not regulate the flow and allow water to bypass even when it is not necessary, Building Regulations require bypass circuits to use Automatic Bypass Valves and not fixed position valves.

Can you bypass water softener during regeneration?

During regeneration, the softener is automatically put in bypass mode. In bypass mode, the softener allows hard water to enter the home if any tap is turned on. Once the softener has regenerated, water is again directed through the resin bed to be softened. Your water softener works on a pressurized system.

What happens if I bypass my water softener?

Since you don’t necessarily need to use soft water for your landscaping and yard work, the bypass setting can give your system a break without limiting your water usage. You’ll still have all the water you need for watering your lawn, plants, new trees, and anything else in the garden when you open your bypass valve.

Do you need a bypass on a system boiler?

The heating systems between the boiler and the radiators have bypassed valves. As the system water pressure is increased due to low flow through the heating circuit, an auto bypass will open. Automatic bypass valves can be adjusted to allow for correct flow rates.

How do I put my water softener on bypass?

1. Locate the bypass button.
2. Firmly push in on the button until it goes all the way in. …
3. To re-active your softener, simply press the button in fully on the opposite side of your bypass valve.

How far should bypass be from boiler?

The auto bypass must be at a distance of at least 20 ft from the appliance in order to prevent overheating of the appliance. So 20 ft is the minimum distance, not the maximum. The bypass must be after the pump and before any motorized valves.It must be an auto bypass.

Article first time published on

Where should a bypass valve be installed?

The bypass valve should be installed between the flow and return with flow in the direction of the arrow (see Fig 1). If a higher capacity is required for large installations it is possible to install two or more valves in parallel.

How do I reduce the pressure in my water softener?

To clean it, first engage the softener’s bypass valve to shut off the water. Next, relieve the water pressure by running the softener through a manual regeneration. Finally, remove the caps on both sides of the softener head.

Does a water softener need a bypass?

Every softener we install has a bypass valve. It allows the water coming into your home to “bypass” the softener should you have a problem or want to use hard water to water your lawn or garden. … Most home softeners will have either a “Push to Bypass” valve or a “Turn to Bypass” valve.

Can I disconnect my water softener?

How do you turn off a water softener? Typically, all you have to do it turn the water softener bypass valve. For added peace of mind, you can also unplug the machine as well as shut off the main valve to your home. Your owner’s manual, will be able to guide you helpfully through the process.

Do you need a bypass on ay plan?

nope, leave it alone… The valve may remain at either HW or CH postion after time cycle…

How does a hot gas bypass valve work?

The hot gas bypass is a valve that automatically regulates the cooling temperature in the dryer exchanger based on the refrigerant pressure. The pressure measured after the heat exchanger directly correlates to the temperature in the system. A low pressure means there will be a low temperature.

Do I need a bypass?

Your doctor may recommend heart bypass surgery if your coronary arteries become so narrowed or blocked that you run a high risk of a heart attack. Your doctor will also recommend bypass surgery when the blockage is too severe to manage with medication or other treatments.

What is an automatic differential bypass valve?

Fitted near the boiler, an automatic bypass valve controls water flow in the central heating system according to the water pressure across it and is used to maintain a minimum flow rate through the boiler and to limit circulation pressure when other valves / water paths are closed.
