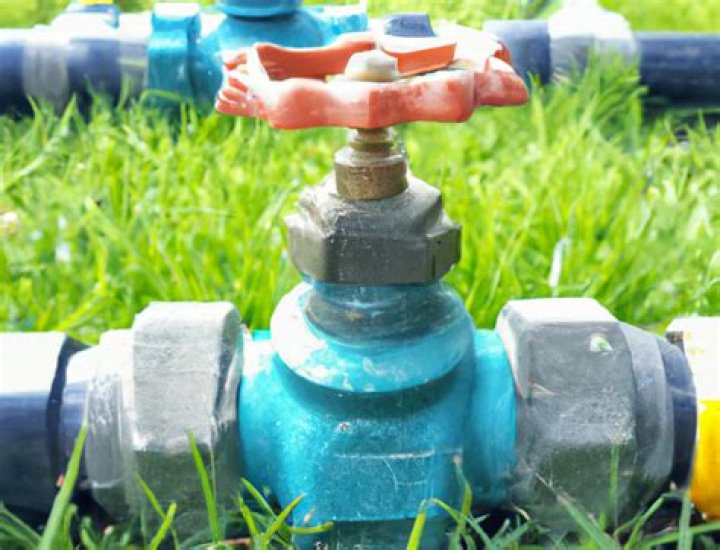

What is a check valve in irrigation

Check valves automatically open and close to allow water to only flow in one direction. The valve components are built into the sprinkler, eliminating the need to install a separate check valve under each sprinkler.

Do I need a check valve on my irrigation pump?

Does a check valve or foot valve need to be used with a irrigation pump? A11. We suggest that a check valve or foot valve is utilized in the suction line as close to the water source as possible. The valve will keep the pump primed between uses, if you do not install one the pump will need primed each time it is used.

Do I need a check valve?

Do I need a check valve? A check valve is a valve that is used to prevent backflow in a piping system. … Even if a pump does have a built-in check valve, we recommend that a check valve be installed in the discharge line within 25 feet of the pump and below the draw down level of the water supply.

What is the difference between a check valve and a backflow preventer?

Check valves are used in a wide variety of equipment, cars, planes, pneumatic and fluid systems, while backflow preventers are typically used in plumbing systems for structures. A check valve has a variety of roles but is mostly used to regulate and control the flow of fluids, especially into pumps.

Will a check valve prevent siphoning?

Whereas check valves are designed to prevent water flow in one direction, antisiphon valves break or upset naturally occurring siphon action. … Two, they are prone to jamming in the closed position, preventing water flow in any direction.

Does a check valve go before or after a pump?

The most common installation is at the pump. A check valve may be installed on the suction side of the pump to maintain the pump’s prime in the event of a pump shutdown. A check valve will be used commonly on the discharge of the pump to prevent backflow from the downstream system, when the pump shuts off.

Do I need a check valve on my sprinkler head?

To fix low head drainage you need to have special anti-drain check valves installed at the sprinkler heads. These check valves prevent the water from draining out of the pipes through the lowest sprinklers. … This check-valve option is available on all major brands of sprinklers.

Does check valve prevent back pressure?

A check valve is a type of valve that allows fluids to flow in one direction but closes automatically to prevent flow in the opposite direction (backflow).

Is it better to put a valve before or after a pump?

You always want a valve on the output side of a pump. If it’s on the intake the pump can cavitate, create bubbles, and possibly burn out if there isn’t enough water in the pump.

Is a check valve the same as a back flow valve?

Backflow occurs when pressure changes in pipes cause the flow of liquids, gas, or semisolids to reverse in the wrong direction. Check valves are designed to ensure substances in a pipe only flow one way, automatically closing to prevent unwanted backflow if the direction is reversed.

Article first time published on

What type of valve is a check valve?

Check valves are automatic valves that open with forward flow and close with reverse flow. The pressure of the fluid passing through a system opens the valve, while any reversal of flow will close the valve.

Should a bilge pump have a check valve?

Parts Needed. And no, you should not use a check valve in the bilge pump line to prevent the back flow of water. The use of a check valve is not recommended due to the potential for sticking and causing the pumping system to fail. … Therefore, it’s a good idea to remove as much of that water as possible.

Why does a pump need a check valve?

Check valves are designed to permit water to flow in one direction and are a requirement on all submersible pump installations. Their job is to prevent water in the column above the pump and in the pressure tank from draining back into the well when the pump shuts off.

What does a PVC check valve do?

A PVC check valve, also known as a non-return valve, is a special valve made of PVC and installed on a PVC water pipe line that only allows the flow of water in one direction through the valve.

Why do check valves fail?

Check valve failure modes associated with wear or poor maintenance can include problems related to noise and vibration from water hammer, reverse flow, leakage or damage. Sticking valves can occur when material like scale or debris is trapped between the valve body and the moving parts such as the disc or ball.

What happens when a check valve fails?

For example, failing check valves will start to vibrate and even lose some internal parts when problems begin to arise. Other symptoms of check valve failure include reverse flow and excessive component wear and damage. Check valves will also emit noises as they start to break down.

Why is water coming out of my sprinkler valve?

The most common reason leaks occur is that the rubber parts in the valve box have worn out. Water seeps freely through the system when the diaphragm seal breaks or debris is obstructing the valve from closing. This means unnecessary water is flowing 24/7 and could be causing other issues in your landscaping.

Why is there a puddle around my sprinkler head?

Puddles of water around sprinkler heads are signs of leaky valves. To fix a leaky valve, you disassemble the valve, clean it, replace any bad parts and then reassemble it. Usually dirt, gravel or a rock is stuck in the valve causing it to stick open.

How much pressure does it take to open a check valve?

The minimum upstream pressure required to operate the valve is called the cracking pressure, generally between 1 and 5 psi. Check valves are designed specifically with this number in mind. The degree of opening on a check valve is determined by the flow rate.

Will a check valve stop water hammer?

Studies and research at major hydraulics research institutions have shown that silent check valves, will, in fact, significantly reduce water hammer by reducing the severity of the pressure spikes.

How do you check a check valve?

Put your hand on the valve and place your ear near to it. If you feel or hear any water running, it is a sign that the valve’s seal is leaking. Most of the time, however, you will hear and feel a gentle “click” sound as the valve closes and water will cease running through the valve as the water is shut off.

Do I need a check valve on my chlorinator?

A check valve for a chlorinator is used to prevent chlorine gas from entering into the pool equipment. ALL CHLORINATORS SHOULD HAVE A CHECK VALVE ASSEMBLY. CL220 has a check valve assembly built into the discharge fitting. In addition, the black tubing, on the discharge side should be looped.

Can swing check valve installed vertically position?

We hear many people ask, “Can swing check valves be installed vertically?” The simple answer to that question is yes, swing check valves can be installed in both directions.

What is the best way to prevent backflow?

Air Gap Air gaps are one of the most effective ways to prevent backflow and backsiphonage. An air gap is a vertical separa- tion between a water outlet and the highest level of a potential fluid contamination source. However, because of air gaps, flow of water is interrupted and loss of pressure occurs.

How much does it cost to install a check valve?

Depending on the size of the system and how much it costs, most homeowners pay between $135 and $1,000. The device costs between $35 and $600, while labor costs between $100 and $400.

Whats the difference between a single and double check valve?

A single check valve can be used for fluid category 2 protection, where there may be an aesthetic change such as temperature, taste or odour. A double check valve is used for fluid category 3 protection, where there is a risk of substances of low toxicity such as common disinfectants.

Can a check valve be horizontal?

Check valve can be installed in horizontal or vertical piping runs, with the flow running upward.

Where is the bilge pump?

Where are Bilge Pumps Located? Bilge pumps for boats should be mounted in the lowest part of your bilge. This is where it will be able to collect and pump the most water. If you have a secondary bilge pump it may be located a little higher up.
