What is a copper clad ground rod

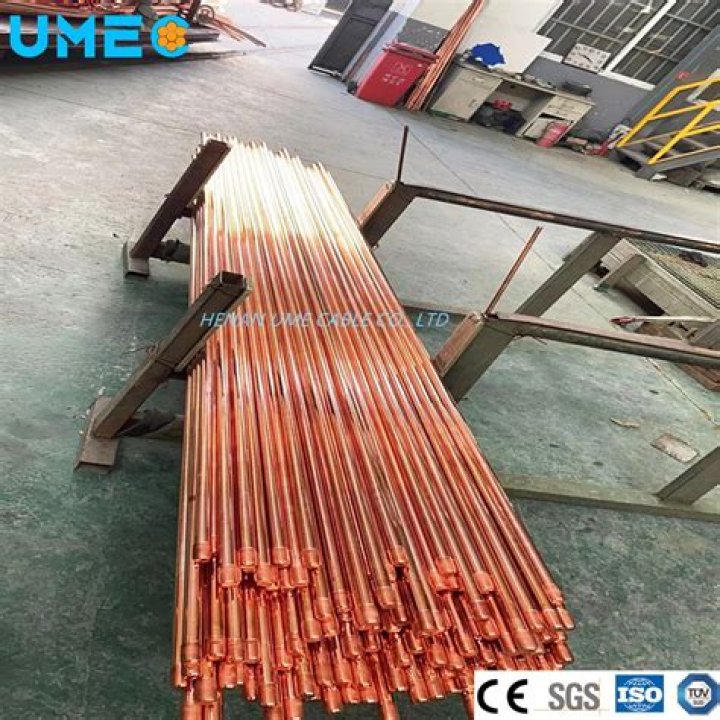

Proudly made in the USA, HWC carries copper clad ground rods which have a heavy, uniform coating of copper metallurgically bonded to a rigid steel core for optimum performance. Where needed, the copper ground rods are color-coded based on specified sizes.

What are copper ground rods used for?

What Are Ground Rods? Ground rods, also known as grounding electrodes, are used to connect the grounding system of electrical systems to earth ground. Ground rods can be made with many different materials, but copper is the most common material used for residential installations.

Does copper make a good ground?

Copper is the preferred metal for grounding conductors and electrodes. This is not only due to its high degree of connectivity, but also its corrosion resistance. In most soils, copper electrodes outlast alternates such as galvanized steel.

Which is better copper or galvanized ground rod?

If the facility being grounded has a life expectancy of less than 15 years, a galvanized ground rod is appropriate and will provide the most cost-effective solution. For installations with a longer service life, copper-bonded ground rods are the best fit.

How deep does a copper ground rod need to be?

According to regulations, a ground rod should be at least eight feet deep vertically into the ground. What this means is that one end of the ground rod should not be less than eight feet deep. An expert electrician can ensure that your ground rods are installed correctly.

Do copper ground rods corrode?

Copper-bonded ground rods are a major step up in terms of corrosion resistance. The NEGRP found that copper-bonded ground rods last an average of 40 years in most soil types, compared to 15 for galvanized rods. This is a larger return compared to galvanized rods for a marginal initial cost increase.

Do houses need grounding rods?

Household electrical systems are required by the National Electrical Code (NEC) to have a grounded system connected to earth ground via a ground rod. The Ground Rod is usually located very close to your main electrical service panel. … You should not see the ground rod, as it must be buried to be effective.

Can you use copper pipe as a grounding rod?

Do you mean to use a copper pipe as a driven ground rod? Yes, you can do that. The National Electrical Code allows it in section 250.52(A)(5). A copper pipe would need to be at least trade size 3/4.

Are ground rods solid copper?

Solid copper ground rods are very corrosion resistant (except when faced with salts) and are also very conductive. However, you will rarely see solid copper outside of the Middle East or similar environments because copper is a ductile, soft metal that often bends when driven into soil other than sand.

How deep should a ground rod be?

In general, grounding rods put in vertically need to be about 8 feet deep into the soil, or, if in a very rocky area, about 2.5 feet deep when installed horizontally. In some areas, such as those with very sandy “soil” at the top layer, the rod may need to go deeper to be effective since it needs to connect with soil.

Article first time published on

Does a ground rod have to be outside?

Ground rods need to be installed in the ground outside in a spot where they can be hammered 8 feet (2.4 m) into the ground.

How much does it cost to install a ground rod?

ItemUnit CostCostGround rods: with cable clamp.$38$114Upgrade: additional cost to install a whole house surge arrestor to protect electronic devices.$92$92Material Cost$893$891.50+ Labor Cost (installation)$36$576

What is copper ground?

Copper grounding wire is commonly found in electrical components because of its durability and conductivity. Compared to other metal conductors, it is also pretty affordable. Since electricity is so powerful, it is vitally important to use durable wires. There are a variety of different copper wires available.

What can be used as a grounding rod?

• Metal Underground Water Pipe.
• Concrete-encased Electrode.
• Metal In-ground Support Structure.
• Ground Ring.
• Rod and Pipe Electrodes.
• Plate Electrodes.
• Other Listed Electrodes.
• Other local underground metal systems or structures.

Which cable is best for car grounding?

In terms of actual wiring, you want to use at least 14 gauge wire for the body ground (see our ground kit for more info). A braided copper ground strap is best attaching the engine to the frame. Heavy #2 gauge cable should be used to connect the battery negative terminal to the engine block or starter mounting bolt.

Why are 2 ground rods required?

Suppose you drive the first ground rod for a system. If it has a ground resistance of 25 ohms or more, 250.56 of the 2005 NEC requires you to drive a second rod. … Ground rods spaced less than two rod-lengths apart will interfere with each other because their effective resistance areas will overlap (Fig.

Where should a grounding rod be placed?

A ground rod is usually located very close to your main electrical service panel and is often made of copper or copper coated steel. They’re approximately ½” in diameter and eight to 10 feet in length. It must be electrically tied to your main service panel to provide an approved ground connection.

Should ground rods be buried?

There is no minimum burial depth required for a grounding electrode conductor. … It is a good idea to bury an exposed grounding electrode conductor in order to keep it out of harm’s way, but there is nothing in the NEC requiring a certain burial depth for the grounding electrode conductor.

How do I know if I have a ground rod?

If you have a ground rod, typically it would be in the vicinity of the meter socket. Look for a bare #6 copper wire either from inside the house or from the meter socket that travels down the wall and possibly disappears into the earth.

How far should ground rod be from house?

Distance From House to Ground Rod To ensure there is no interference from the footing, the ground rod should be placed no closer than 2 feet from the exterior wall of the house.

How do you drive a ground rod?

1. Finding appropriate location. …
2. Set the route for grounding of electrode conductor. …
3. Ensure no hurdles in the way. …
4. Pick the approved ground rod. …
5. Dig a hole for the rod. …
6. Drive the rod in the hole. …
7. Connecting the electrode.

Is rebar a good ground rod?

Rebar can be used as a grounding rod, however copper rod works much better. Copper is a better conductor, and will not corrode as badly as steel. Rebar corrodes much easier and will lose contact easier.

Can I use at post as a grounding rod?

No. Your grounding rods should be galvanized steel or copper. The t-posts will rust and they will be very difficult to get into the ground far enough. You want to put your grounding rod down around 6-8′ into the ground and leave less than 12″ sticking up above the ground.

How do I know if my ground rod is bad?

Check the resistance reading on the meter. Your clamp-on ground tester will have a screen that will show you a numeric reading. The lower the number on the meter, the better your grounding rod is working. In general, a reading under 25 ohms means that your ground rod has a good connection to the earth.

How far does ground rod need to be from panel?

Approximately 90 percent of all grounding electrode systems for structures are driven rods. The NEC requires all driven rods to be a minimum eight feet in the earth and for multiple connected rods a minimum spacing of six feet between rods.

Can a grounding rod be hollow?

Simply put, an Enhanced Ground Rod is a conduc- tive hollow tube ground rod, usually manufactured from copper. They contain special hygroscopic, electrolytic salts. These salts form a saline solution by absorbing moisture out of the atmosphere.

Can I use 1/2 inch ground rod?

With regard to diameter, the Code allows for two ways a ground rod can meet the requirements: (1) It can be 0.625 or larger in diameter, or (2) it must be listed and not less than ½ inch (0.500).

Can you bend a ground rod?

The wording in 250.53(G) does not specifically prohibit bending ground rods but it does require the rod to be driven to a depth of 8 ft – unless rock bottom is encountered.

How deep does a ground wire have to be buried?

In general, bury metal conduits at least 6 inches below the soil surface. You may also run them at a depth of 4 inches under a 4-inch concrete slab. Under your driveway, the conduits must be below a depth of 18 inches, and under a public road or alleyway, they must be buried below 24 inches.

How deep does a ground rod need to be for electric fence?

A general rule is to install a minimum of 3 feet of ground rod per joule of output capacity. A 15 joule fence charger will require a minimum of 45 feet of ground rod. These rods must be installed at least 10 feet apart from each other.

What is a ground rod for a house?

A residential grounding electrode is an 8-foot length of copper rod, driven into the ground outside the home and connected to the neutral side of the main panel with a copper cable. Its job is to channel electrical surges away from the home and into the ground.
