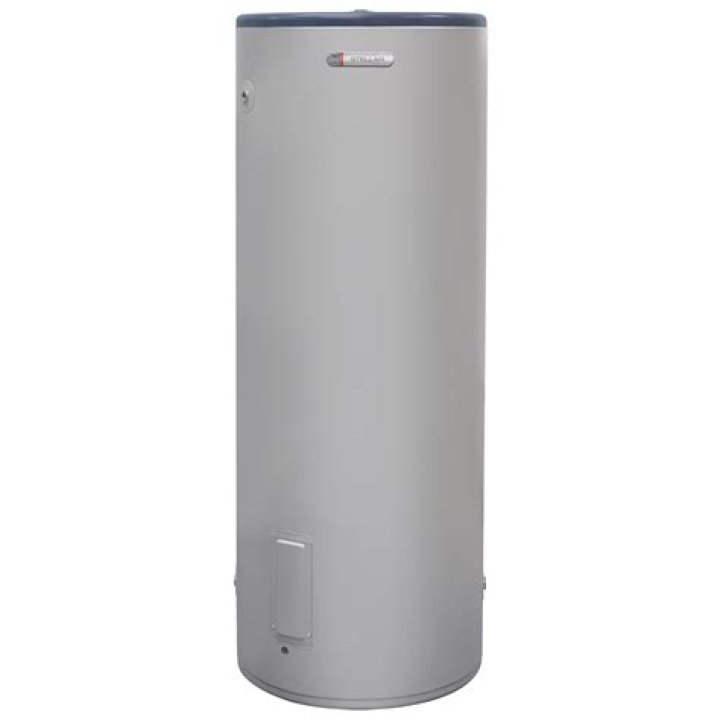

What is a dual element water heater

With a dual-element water heater, there are two heat elements – one on the top and one toward the bottom of the tank. … Once the water in the top half of the tank reaches the set temperature, the top element turns off, and the bottom element turns on to heat the rest of the water.

Why do water heaters have 2 elements?

With two-element designs, one element heats the water at the top of the tank while the second element heats the water in the bottom of the tank. Electric heaters feature fewer parts than gas models, but a basic understanding of how two-element models function can reduce the time needed to diagnose a problem.

Do dual element water heaters run at the same time?

The basic operation of a two thermostat system (upper and lower) on an electric water heater of 240 volt supply is as follows: Only one element will come on at any one time. … Once that temperature has been reached, the thermostat will then flip power down to the lower thermostat.

What is the benefit of a twin element hot water system?

Advantages. The dual element is the more efficient of the two water heating systems. It heats water quicker than a single element unit, as water is moved from one end of the tank to the other, whereas a single element system heats from the bottom up only.

How does a 2 element electric water heater work?

In a dual elements system, heating occurs in one element at a time, never simultaneously. When the water tank has cold water in it, the upper thermostat will heat the upper element. This thermostat then shuts down once the water in the top half of the tank reaches the required temperature.

Are both water heater elements the same?

There are three types: screw in, bolt in and clamp in. They all have different wattage ratings and can work on either 120 or 240 voltage. Check your state and local codes before starting any project.

Should you replace both water heater elements at the same time?

Both heating elements generally do not work simultaneously. The only way to know which one is working would be to monitor the voltage at each heating element. … I recommend replacing both elements since you have to drain the tank to clean flush the sediment out anyway.

Will a hot water heater work with only one element?

Yes, a water heater can still run if the bottom element quits. … In most water heaters, the top heating element controls the thermostat and will still work even if the bottom element fails. So provided the top heating element is working, it can still produce some hot water even if the bottom heating element fails.

What is the difference between a single and twin element hot water system?

Single element systems are likely to have two off peak heating cycles. One in the middle of the day and one in the middle of the night. Twin element hot water systems will be supplied with both off peak electricity and continuous tarriff electricity.

Which element heats up first on electric water heater?

The upper thermostat first sends electrical energy to the upper element until the water temperature in the upper third of the tank reaches the thermostat setting. Power is then transferred to the lower element until the remaining water reaches the lower thermostat setting.

Article first time published on

Are upper and lower water heater elements the same?

Upper and lower heating elements are identical, and the temperature is regulated by the upper and lower thermostat and high limit device. Electric water heater elements can be different in size, but the most common is 12″ (300 mm).

Why do electric water heaters have 2 thermostats?

An electric storage-tank-style water heater has two thermostats because it has two heating elements. The thermostats are designed so only one element is active at a time. The reason only one element is active at a time is because it allows for smaller wire sizes and lower amperage demand when in operation.

Do electric water heaters have two thermostats?

Most electric water heaters above 20 gallons have two thermostats that sense the temperature of the water in both the top and bottom of the tank. The upper thermostat is the boss and always tells the lower thermostat what to do.

How do I know which water heater element is bad?

Touch a probe on the multitester to each screw on the element. If you get no reading, or a maximum reading, the element is bad. Elements do have some resistance, so a reading of 10-16 ohms is normal, with higher ohm readings for 3,500 watt elements and lower readings for 5,500 watt elements.

How long do hot water tank elements last?

While no one can determine exactly how long a water heater should last, a properly maintained, quality water heater can last 8 to 10 years.

What causes water heater elements to burn out?

The most common cause of burned out elements on new water heater installations or new element replacements is DRYFIRE. This happens because the installer fails to open a hot water faucet while the heater tank is filling with water and therefore purging or bleeding air from the system.

Are the top and bottom elements the same?

Most residential electric water heaters have two heating elements: one near the top of the tank and one near the bottom. Power enters the top and runs to the high-temperature cutoff switch, and then to the thermostats and elements. … The upper and lower heating elements never come on at the same time.

How do I choose a water heater element?

When selecting element, buy same wattage or less wattage… keep volts the same. It is ok to install higher watt up to 5500 on 4500 watt heater if breaker is 30 amp and wire is 10 gauge. It is ok to install lower watt: replace 4500 with 3500 as long as voltage is same.

Can you use a dual element thermostat on a single element water heater?

Good to Know: A dual element thermostat can be used for single element water heater. A single element thermostat can’t be used for double element water heater.

Do you have to drain a hot water tank to change the element?

It is possible to change your water heater’s heating element without draining your tank. Although, keep in mind that it can be a bit more challenging.

What is the difference between simultaneous and non simultaneous water heater?

Double element electric water heaters are designed to operate in a Non-Simultaneous or Simultaneous mode. Non-Simultaneous Mode: Allows only one heating element to operate at a time. … Simultaneous mode: allows both heating elements to operate at the same time.

Does the top or bottom element heat first?

If you set them to the same temperature, the bottom element will be the first one on every time, and frequently the only one used to maintain the temperature. If you set the top element too much higher, then it will be used most of the time, and the bottom element acts more as a pre-heater.

Does hot water come from top or bottom of water heater?

Water enters the tank from the main water supply. The heating burner/element at the bottom of the tank starts to heat the water. As the water heats, it will rise to the top of the tank. When you need hot water, it’s taken from the top of the tank where the hottest water is.

Do electric water heater elements work at the same time?

Residential 240 volt 2-element electric water heaters are non-simultaneous, as can be seen on product label located on side of tank. This means both elements are never ON at same time (simultaneously) unless specific wiring inside heater is changed significantly.

What temperature should my hot water tank be set at?

Professionals recommend keeping your water heater set at a temperature between 130 and 140 degrees Fahrenheit. Any higher, or lower, could actually be dangerous for you and your family.
