What is a flaring tool used for

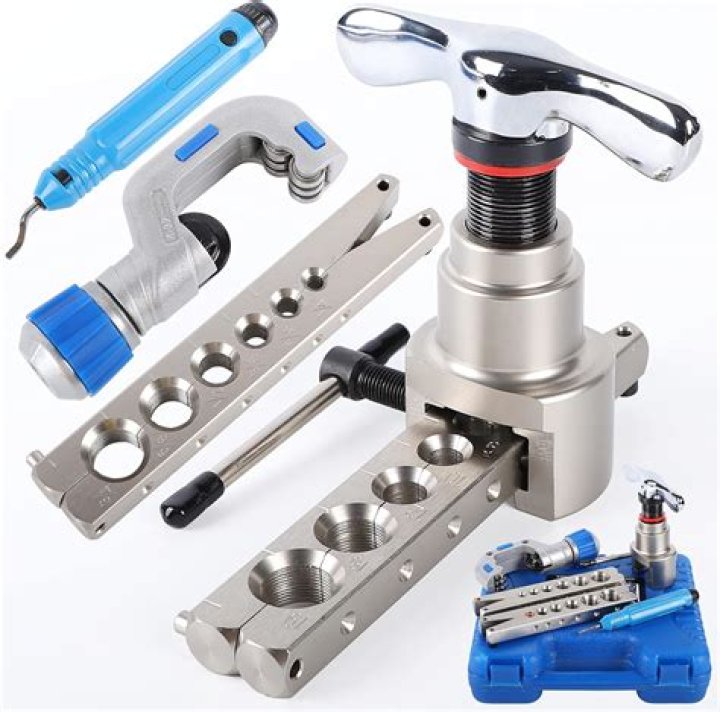

What are Flaring Tools? Flaring tools use pressure to make a fabricated mechanical joint for joining or sealing copper tubing with a flare connection. Flaring allows you to connect tubes to each other or another kind of fitting. Flared ends tend to have an approximately conical shape.

What is a flare fitting used for?

Flared fittings are also a good option for use with heavy machinery, and industrial and construction equipment. They are the fitting is most commonly used to connect tube or hose in high-pressure and high-temperature applications. The flare fitting is commonly used world-wide because it is a simple construction.

Do flare fittings need Teflon tape?

Just what got tape applied? The threads in a flare fitting are NOT tapered and do not need to be sealed. The seal is between the flared end of the pipe/tube and the tapered face of the other side of the fitting.

What is the difference between flaring and swaging?

Both processes have a lot of similarities. The big difference is that flaring is shallower and a different shape. It creates a funnel at the end of the tube. Swaging on the other hand is deeper and you can expand the diameter further along the tube to create a flute shape.

Can you use flare fittings for water?

While it’s legal to use flare connections on water lines, it’s rarely done. A leaking water line won’t fuel a fire or lead to an explosion, and residential water pressures aren’t high enough to warrant the use of this robust but relatively labor-intensive joint.

Can you over tighten a flare fitting?

Fourth, don’t over-tighten the flare fitting, as this can cause leaks. Daikin offers preset flare torque wrenches that will allow you to properly tighten the flare fitting without over-tightening them. Always use a backup wrench when tightening any flare fitting.

Why do you flare copper tubing?

Flaring allows you to connect tubes to each other or another kind of fitting. Flared ends tend to have an approximately conical shape. The most popular flaring tool for copper tubing is the bar-type tool, which include multiple bits to accommodate different pipe or tube sizes.

Why do flare fittings leak?

A leak will occur where the cone enters the flare. Loosen and tighten the flare nut several times to the torque specifications. This action will positively seat the cone into the flare. If the joint still leaks, dissemble the connection and wipe off the flare and the cone with a rag.

Can you reuse flare fittings?

DO NOT reuse connectors, fittings and valves; they are designed for use on original installation only. Removal of connector and additional handling may damage connector making it unsafe for reuse. Overall this is to help prevent leaks caused by dirt, debris, and damage that may prevent good connections.

What is the difference between NPT and flare?

NPT or IPT pipe threads are tapered, Compression Fitting Threads are Parallel. … On the other hand compression fittings and flare fittings use threads that are cut in parallel, without taper.

Article first time published on

What is Flare piping?

A Flare system is a means of safe disposal of waste gases by burning them under controlled conditions. Flare piping generally comprises of PSVs outlet piping, subheader piping & main header piping.

What is the difference between flare and compression fittings?

Generally speaking, compression outlets are used for water and compressed air lines, where slight leakage isn’t going to cause too much of a problem. Flared outlets are used for gas and high-pressure lines, where even a little leakage can cause major problems if left unattended.

Can you flare Type L copper?

It is possible to flare Types K, L or M rigid or hard temper tube, though prior to flaring it is usually necessary to anneal the end of the tube to be flared. The copper tube must be cut square using an appropriate tubing cutter.

What is copper tubing used for?

Copper tubing is most often used for heating systems and as a refrigerant line in HVAC systems. Copper tubing is slowly being replaced by PEX tubing in hot and cold water applications. There are two basic types of copper tubing, soft copper and rigid copper.

How do flare fittings seal?

Design: The 37° flare AN seal is used for sealing tubing to end connections. It requires the end of the tube to have a nut slipped onto it and then flared out using a special tool. To seal properly, the nut is threaded into a flare fitting which clamps the flared tube in between the nut and flare fitting.

Can you use SharkBite for gas line?

Can I use SharkBite fittings for anything other than potable water and radiant heating (e.g, air, gas, oil, etc.) … SharkBite fittings are only certified for potable water & radiant heating installations.

How do you flare a copper pipe?

To flare the pipe, put it into a hole that has a matching size as the copper on the flare form. Place the reamer on top of the flare form so the conical point is against the tubing. As you tighten the reamer, the conical point will flare the copper easily.

Is inverted flare the same as double flare?

The first is the inverted double flare, used by most domestic production cars and trucks. … It uses a 45* double flare to seal, which has tubing that is folded over into itself before flaring outward. The double flare is used for installations that require repeated tightening/untightening.

Why is thread seal not used on flare fittings?

Do not use Teflon ® tape or pipe sealant on any flare ends because you will not obtain a leak-free seal. … tighten more if a leak is detected. If fitting is installed improperly, remove fitting, reapply sealant and reinstall properly per instructions.

How long can a flexible gas line be?

Three- or six-foot long and accessible: The flexible connectors can’t go through walls, floors or ceilings, nor can they be concealed. The flexible connector length usually is limited to 3 feet except for gas ranges and clothes dryers. For these appliances, 6 feet generally is allowed.

Can copper pipe be reused?

Copper pipes and fittings are used in many plumbing systems. … Copper pipes are usually connected together using a variety of fittings, including elbows, T’s and couplings. You can remove copper fittings and reuse them by following a straightforward procedure that requires a moderate amount of time and effort.

How do I stop my flare fitting from leaking?

1. Unscrew the brake line from the fitting.
2. Clamp the appropriate-sized collet around the line.
3. Connect it to the Surseat lapping tool.
4. Spray some lubricant to the lapping head before using it.
5. Rotate the lapping head back and forth about 6-10 times.
6. Clean and inspect the flare.

Why is a flare connection preferred to a solder connection?

What actually seals the connection in a flare connection? Why is a flare connection sometimes preferred to a solder connection? … The primary advantage of flare connections is that they form a relatively large contact area, making a reliable seal that’s resistant to damage from vibration.

How is flare measured?

1. 180 degree or half circle flare is waist divided by 3.14.
2. 360 degree or full circle flare is waist divided by 4 or 6.28 to get the radius.
3. 720 degrees or full circle multiply by 2; Is divide waist by 2 then answer divide by 4 each to get the radius.

Are flare threads tapered?

During assembly, a flare nut is used to secure the flared tubing’s tapered end to the also tapered fitting, producing a pressure-resistant, leak-tight seal. Flared connections offer a high degree of long-term reliability and for this reason are often used in mission-critical and inaccessible locations.

What is 6AN fitting?

The AN numbers refer to the tubing OD in sixteenths of an inch. For example, 8AN hose has the same ID as a 1/2″ nominal tube (8/16 = 1/2). 3AN hose has the same ID as a 3/16″ tube. This means that 6AN hose will not introduce any appreciable flow restriction in a fuel system designed around 3/8″ OD rigid tubing.

Do compression fittings use NPT?

The fittings we sell may have compression or National Pipe Thread tapered ends (NPT). Compression ends are made for a tube which has a specific outside diameter (OD). For example, a ¼” compression fitting is designed to connect a section of tubing which has an OD of ¼”.

How does a flare system work?

During flaring, excess gases are combined with steam and/or air, and burnt off in the flare system to produce water vapour and carbon dioxide. The process of burning these excess gases is similar to the burning of liquefied petroleum gases (LPG), which some of us use as fuel for home cooking.
