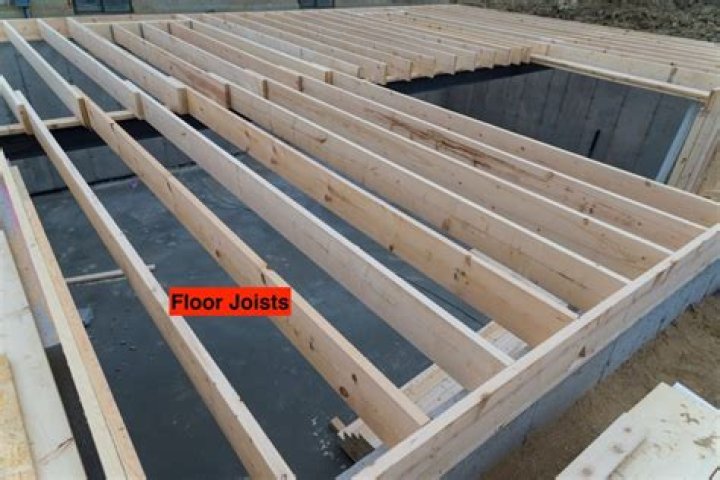

What is a floor joist

A floor joist is a horizontal structure that’s used in framing open spaces. When combined with the floor framing, joists help to stiffen the subfloor shearing, enabling it to function as a horizontal diaphragm. The beams are usually installed after the crawl space or basement has been built.

What is the purpose of floor joist?

A floor joist is a horizontal structure that’s used in framing open spaces. When combined with the floor framing, joists help to stiffen the subfloor shearing, enabling it to function as a horizontal diaphragm. The beams are usually installed after the crawl space or basement has been built.

What are floor joists attached to?

Joists run from one beam to another and are usually spaced 16 inches apart, center-to-center. Plywood sheathing attaches to the joists, then hardwood flooring or tile. Since joists carry the load of the floor, they must be securely attached at either end to a ledger board or a beam, and must be level in all planes.

What is the difference between a beam and a joist?

Joists are typically smaller beams that run across an open space, typically arranged in parallel series to support a floor or a ceiling. … While both terms are often used interchangeably, beams are the main load-bearing structural element of a roof and joists usually span between two beams.

Are floor joists part of the foundation?

Floor joists are an essential part of your home’s wooden flooring structure. … The ends of the joists rest on the sill plate that is built on the top of the home’s foundation wall, and the joists are supported in the center by the home’s main beam.

How long do floor joists last?

Wood floor trusses can be expected to last as long as the home itself (100+ years), if maintained in a stable, reasonabley dry environment. Moisture from excessive humidity, condensation, or plumbing leaks, along with termites are the problems that can shorten a floor truss life.

Is it OK to screw into floor joists?

You can drill the holes anywhere along the length of the joist (first photo). If you have manufactured I-joists, you can drill holes up to 1-1/2 in. diameter almost anywhere in the web area (the area between the flanges). Just stay 6 in.

What are house joists?

Joists—the horizontal members that span two walls and/or beams—have to carry the weight of the walls, people, furniture, appliances and other stuff we place on them. When a load is applied to a joist, the wood fibers along the bottom edge go into tension and those along the top go into compression (Fig. A).

Are trusses and joists the same?

While much different in design and function, joists and trusses are often used together in construction projects. While joists support the weight of floors and ceilings, trusses have a wide variety of applications, including supporting roofs and in bridge design.

What are construction joists?

joist, ceiling or floor support in building construction. Joists—of timber, steel, or reinforced concrete—are laid in a parallel series across or abutting girders or a bearing wall, to which they are attached, usually by metal supports called joist hangers, or anchors. Habitat for Humanity; floor joists.

Article first time published on

Do I need treated wood for floor joists?

Generally, building codes require pressure-treated or naturally durable wood for the following applications: Joists or the bottom of structural floors without joists that are within 18″ of exposed soil. Beams or girders closer than 12″ to exposed soil.

How do you build floor joists?

The best way to strengthen floor joists from underneath is to make a supporting mid-span beam or wall beneath the wobbling joists. Using jack posts or 6×6 posts and 2×10 or 2×8 beams perpendicular to the joists will solve any wobble and ensure your joists never move again.

Are floor joists structural?

Floor joists are horizontal structural members that span an open space, often between beams, which subsequently transfer the load to vertical structural members. … Floor joists help distribute the load of a structure.

What kind of wood is used for floor joists?

Lumber Grade Lumber graded as #2 is the most common choice for floor joists and other framing lumber. It has more knots and defects than higher grades, but usually not enough to cause significant loss of bending strength.

What size floor joist do I need?

For example, assume the clear span is 15 feet 6 inches. Round up to 16 and divide this span by 2, giving you 8. Next, add 2 to get the required joist depth. In this example, 8 + 2 = 10, so a 2×12 floor joist will be required (it’s important to use the actual lumber dimensions, not the nominal dimensions).

Can plumbing go through floor joists?

The maximum allowable diameter of a hole in any solid-lumber joist is one-third of the joist’s depth. Notches can’t be deeper than one-sixth of the joist depth. … Although notches aren’t allowed in the center third of a joist’s length, you can drill holes anywhere along the length of the floor joist in that 5 1⁄4-in.

Can you run electrical wire through floor joists?

Code says that you may not staple wires to the bottom of a floor joist unless the wire is 6-2, 8-3, or larger. Smaller wires must be run through bored holes or be attached to a running board.

How much can you cut out of a floor joist?

The maximum hole size is 1/3 the joist’s depth. You can cut a notch at the end of the joist to 1/4 of the joist’s depth (maximum). Along the outer third of a joist, you can cut a notch a maximum of 1/6 the joist depth and 1/3 the joist length without compromising its strength.

How do I know if my floor joists are bad?

1. Moist, rotting wood.
2. Skewed or unlevel door and window frames.
3. Sagging, sloping, or uneven upstairs floors.
4. Tilting or sinking crawl space supports.
5. Cracks in the interior drywall.

How much does it cost to replace floor joists?

Sistering$100 – $300 per joist*Minimal replacement$2,000 – $5,000Replacing a room$5,000 – $10,000Replacing an entire level$10,000 – $30,000

Is replacing subfloor expensive?

Average Cost of Replacing Subfloor. Replacing subfloors will cost between $1.45 and $7 per square foot for materials. Labor costs will be around $27.50 per hour. The project requires the removal of the finished flooring and damaged area and the installation of a new material.

What is the difference between floor trusses and joists?

The joist supports the load which the floor is built to bear. A truss is used to support the roof.

What is the difference between a floor joist and a floor truss?

I-joists are prefabricated, I-shaped structural members that are designed for residential and commercial floor and roof rafter applications. … Floor trusses have built-in openings, which can be used to install HVAC ductwork, plumbing lines, and electrical wiring.

What are the types of floor joists?

Several popular options include solid lumber, LVL, wood I-beams, steel joists and open web floor trusses. Let’s examine three of these materials.

Which way do floor joists run in a house?

An important thing to know about joists is that they usually run in the same direction throughout a house. If the visible joists in a basement or attic run east to west, for example, you can be fairly certain the invisible joists under the bedroom floor also run east to west.

Where are joists located in a house?

A joist is a horizontal structural member used in framing to span an open space, often between beams that subsequently transfer loads to vertical members. When incorporated into a floor framing system, joists serve to provide stiffness to the subfloor sheathing, allowing it to function as a horizontal diaphragm.

How do I find floor joists?

Find the joists on one side of the room and then move to the opposite side of the room. Once you find the two ends of the joists, drive small nails in each end and snap a chalk line between the nails. This will give you a visual reference of where each joist is.

How are floor joists attached to sill?

1 Answer. The floor joists are secured to the sill joists by installing wall sheathing (plywood or OSB board) that laps from the sill plate up the wall to the double top plate. When the sheathing is nailed to the sill plates, rim joists, studs and double top plate, then all the components are secured in place.

Do floor joists have to sit on a beam?

The joists themselves should have at least 1-1/2 inches of good bearing on the sill plate, or 3 inches on masonry. … Ideally, if a load-bearing wall runs parallel to floor joists, then it should sit directly over a beam or a joist supported by a load-bearing wall below.

Do shed floor joists need to be treated?

You may be wondering should you use pressure treated wood for a shed floor? Yes, pressure treated lumber is the best option for your shed floor. Keep in mind, however, that this doesn’t make it a requirement. You can still use non-pressure treated wood.

Can I use pressure treated wood for joists?

Can you use a pressure treated lumber for a floor joist? – Quora. Yes, PT lumber can be used for framing, including floors. The allowable stresses of PT lumber are lower than non-treated lumber, which means it can not span as far. Also, PT lumber is corrosive, so connections need to be such that they resist corrosion.
