What is a gradient in MRI

Gradients are simply loops of wire or thin conductive sheets on a cylindrical shell that lies just inside the bore of an MRI Scanner. When an electrical current passes through these coils, the result is a secondary magnetic field. This gradient field distorts the main magnetic field in a slight but predictable pattern.

What is gradient duty cycle in MRI?

An additional gradient parameter commonly measured is duty cycle. The duty cycle does not have a fixed value, but varies by pulse sequence. It represents the percent of time the gradient is able to work at maximum amplitude during that sequence.

What is gradient amplitude?

Sensitivity and peak amplitude The peak amplitude (G) is the strength of the gradient system, i.e. the steepness of the magnetic field. It is measured in mT/m. The gradient amplitude (in combination with the RF excitation pulse) defines the slice thickness.

Why do we need a gradient magnetic field in MRI measurements?

Magnetic Field Gradient If each of the regions of spin was to experience a unique magnetic field we would be able to image their positions. A gradient in the magnetic field is what will allow us to accomplish this.

What is the gradient rise time?

The slew rate (AKA “rise time”) is the speed at which the gradient reaches its maximum amplitude. Slew rate is measured in millitesla per meter per microsecond (mT/m/ms). The higher the slew rate, the thinner the anatomical slice, which means higher clarity in the image produced.

What does a magnetic field gradient do?

Magnetic Field Gradients, Spatial Frequencies and k-space As magnetic field gradients establish different precession frequencies across the imaging volume, evolution in a gradient over a specified time creates a spatial distribution of magnetization that varies along the gradient direction.

Which gradient specification is generally the most important when assessing how well an MR system is capable of performing rapid high resolution imaging?

Which gradient specification is generally the most important when assessing how well an MR system is capable of performing rapid, high-resolution imaging? Peak gradient strength. Slew rate.

How do you find the gradient of a magnetic field?

The force/gradient relationship is represented by the formula, F = – ∇ P. Force equation Where F is the force, ∇ is the gradient as a vector quantity and P is the magnetic potential.

How many gradient magnetic fields are used for MRI investigation?

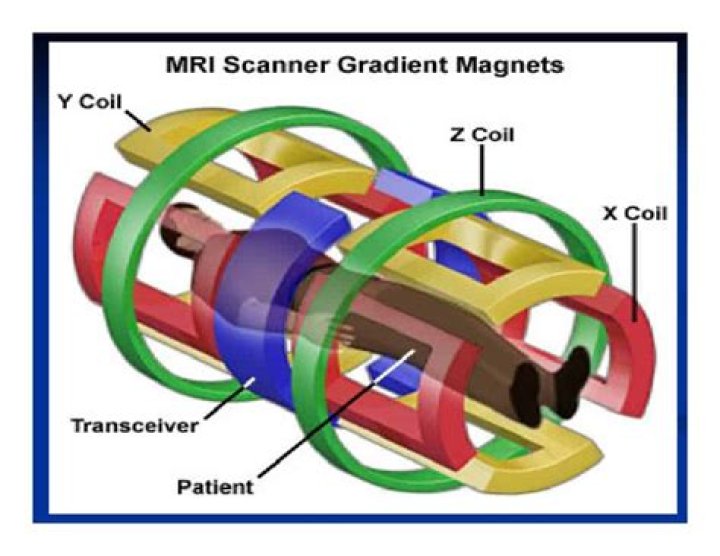

Three sets of gradient coils are used in nearly all MR systems: the x-, y-, and z-gradients. Each coil set is driven by an independent power amplifier and creates a gradient field whose z-component varies linearly along the x-, y-, and z-directions, respectively.

What happens in a gradient coil that determines the amplitude of a gradient?

The strength/amplitude of the gradient is determined by the amount of current applied to the gradient coil (maximum amplitude determines maximum achievable resolution). Polarity determines which end of the gradient is positive and which is negative.
