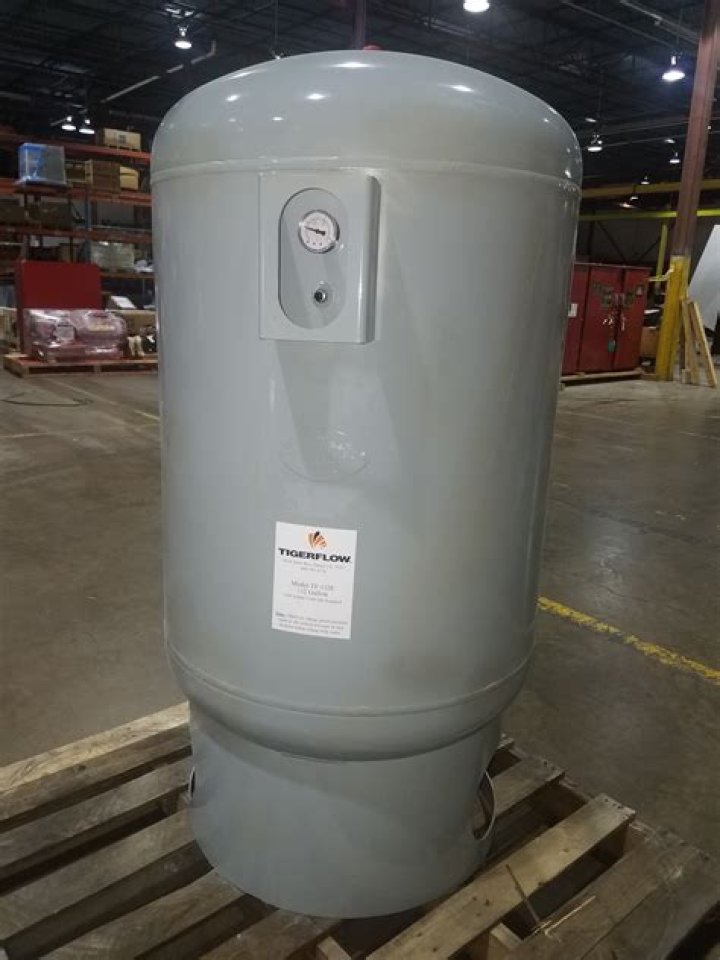

What is a hydropneumatic tank used for

Hydropneumatic tanks are designed to maintain on-demand pressurized water without the continuous use of a pump and can provide storage in small water systems. By regulating system pressures, hydropneumatic tanks provide efficient water supply to quickly meet system demand.

What are hydropneumatic tanks?

A hydropneumatic tank contains pressurized air and water. It does not have a bladder and air is in direct contact with the water. The compressed air acts as a cushion exerting or absorbing pressure. … Well pumps and booster pumps work with pressure tanks to maintain a consistent pressure range in the system.

Why do hydropneumatic tanks have bladders?

Bladder tanks are required in a closed loop heating or chilled water HVAC system to absorb the expanding fluid and limit the pressure within a heating or cooling system.

Where is hydro pneumatic pump used?

Submersible Hydropneumatic Pumping system The system is most ideal for High Rise Apartments and Buildings where the demand of water is variable and fitted with modern bathroom fittings like Jacuzzis, shower etc which require pressurized water for better functioning of the fittings.

How do you size a hydropneumatic tank?

Determine the minimum tank volume needed by dividing the Acceptance Volume (9.5-gallons) by the Draw Down Coefficient (. 087). This gives us our required tank size of 109-gallons.

What is pneumatic system?

A pneumatic system is a system that uses compressed air to do work. They capture air, transport it around a circuit, and accomplish designated tasks with the generated energy. These are present in both manual and automated machines, and within the construction or mining industry.

How does Citroen hydropneumatic suspension work?

This system uses a belt or camshaft driven pump from the engine to pressurise a special hydraulic fluid, which then powers the brakes, suspension and power steering. … The actuation of the nitrogen spring reservoir is performed through an incompressible hydraulic fluid inside a suspension cylinder.

Why should a pump never be run dry?

Dry running occurs when a pump operates without adequate liquid. … This triggers shock waves inside the pump which cause significant damage to the pumping element. If left untreated, cavitation will destroy the pumping element and other components over time, drastically shortening the pump’s life.

What is the main function of HYPN system?

A HYPN system maintains a constant temperature and helps eliminate unnecessary functioning of pumps in case of zero flow. Also, the performance of HYPN system is controlled, smooth and facilitates energy and water optimisation.

How do you pressurize a Bladderless water heater?

A bladderless water pressure tank doesn’t have a balloon-like fixture and valve, but you can add air to the tank by completely draining it first via the spigot valve located at the bottom. Use a garden hose to empty out the tank, and once it has no more content, it will be filled with air.

Article first time published on

What does a pressurized well tank do?

Pressurized well tanks extend the lifespan of your well pump by preventing rapid on/off cycling of the pump and maintaining water pressure throughout your home. A properly sized pressure tank ensures your household water needs are met and your pump is protected against short-cycling.

What is the difference between a bladder tank and a diaphragm tank?

What is the difference between a bladder tank and a diaphragm tank? A bladder tank contains a vinyl tank inside it. A bladder tank can be replaced as and when required. On the other hand, a diaphragm tank contains a rubber flat diaphragm, a butyl tank or a vinyl tank that is mounted on it.

What is a pressure tank used for?

In addition to regulating water pressure, a pressure tank gives you instant access to well water, without the need to manually turn on the pump. Moreover, it allows you to draw well water without the pump cycling on and off each time.

What size pressurized well tank?

General Rule of Thumb for Sizing a Pressure Tank Generally, as a rule of thumb, one can follow these guidelines when sizing a pressure tank: 0-10 GPM: 1 gallon of drawdown per 1 GPM of flow. 10-20 GPM: 1.5 gallons of drawdown per 1 GPM of flow. 20 GPM+: 2 gallons of drawdown per 1 GPM of flow.

Is a 20 gallon pressure tank big enough?

A 20 GPM pump needs a tank with 20 to 40 gallons of storage. Almost 2/3s or more of a tanks volume is filled with compressed air, it takes a very large tank to hold 10 to 40 gallons of water. The higher the pressure switch setting, the less water volume a tank can store.

How do I size a water pressure booster?

Typically, a pressure of 40 psi at the top of a building is ideal. Consult the installation and operation manuals for special fixtures for their required flow and pressures. Choose the number of pumps your system will utilize. For a small system below approximately 150 gpm, two pumps will suffice.

Why did Citroen stop hydropneumatic suspension?

Citroen will stop selling cars equipped with its once-renowned hydropneumatic suspension system. … Jackson’s comments confirm a report last month that Citroen has decided to scrap the in-house suspension as part of wider cost-cutting measures launched under PSA/Peugeot-Citroen CEO Carlos Tavares.

Is hydraulic suspension good?

One of the biggest advantages of a hydraulic suspension for your vehicle is that it can produce a firmer ride. Hydraulics are also very responsive and can react quicker than most other suspension systems. Best of all, these types of systems are completely customizable.

How does a Citroen work?

The heart of the Citroën system is a high-pressure hydraulic pump, driven by belt from the engine like a conventional power steering pump. … As the suspension drops, the valve allows more hydraulic fluid into that end in order to raise the suspension and when it reaches the correct point then the valve closes.

What are the uses of pneumatic machines?

• Pneumatic system is used in car tyres. Car tyres are pressurized with air.
• A pipe organ is a pneumatic system in which air pressure is used to make sound.
• Pneumatic systems are used in buildings as heating and cooling control by using components such as pneumatic thermostats, damper motors etc.

Where do we use pneumatic systems?

• Bicycle/ball pumps.
• Tire pressure gauges.
• Some nail guns.
• The handicapped-access buttons which operate automatic doors.
• Vacuum cleaners.
• Some car shocks.

How does a pneumatic machine work?

A pneumatics system works by increasing and decreasing air flows using valves with ports. Ports allow for air to simultaneously flow in different directions. When the machine turns on, these valves open; the compressed air turns cylinders and tubes within the machine, which in turn power up the engine.

How long can a water pump run continuously?

Generally, sump pumps can run for six to 24 hours continuously, depending on how heavy the rainfall is and the quality of your pump. The aftermath of torrential rains or even flooding puts a higher demand on your sump pump to keep your home’s low areas dry.

Should sump pump have water in it?

Sump Pump Always Has Water First, it is usually completely normal that a sump pump pit has water in it, at least a little. If there is usually too much water, there is probably a problem, especially if you don’t ever hear your pump kick on.

Can you run a gas water pump without water?

No. The pump depends on water for cooling and lubrication. Operating the pump without water will likely cause the motor to overheat or cause damage to parts of the pump.

What is a Bladderless expansion tank?

See How Expansion Tanks Work. Bladder expansion tanks are always filled to some degree. The bladder allows the water to expand and contract for thermal expansion. Whereas if a steel expansion tank (bladderless) is completely full there is no expansion of the system.

What PSI should a water pressure tank be at?

Your well tank’s pressure should be set at 2 psi below the pressure switch’s cut-on point. This differs depending on your tank’s pressure settings. Most well tanks come set at 30/50. The cut-on pressure for the well pump is 30 psi, so the pressure of the tank should have a pressure of 28 psi.

What causes a pressure tank to lose pressure?

An inflated air bladder inside the storage tank imposes pressure on well water in the tank. As the water level in the tank drops from household demand, pressure in the tank declines to a preset minimum. The well pump then actuates to pump more water into the tank and restore pressure.

What happens when a bladder tank goes bad?

Frequent water hammers can stress water pipes and weaken old joints. Over time, your pipes may break. Water hammers can occur when a well pressure tank is no longer able to maintain a constant, optimal water pressure in your home. Instead, water flow is more apt to experience fluctuations that result in water hammers.

What are the symptoms of a bad pressure tank?

You can check the gauge down at the bottom and if you’re running water of any sort and that pressure is bouncing up to your top, which is 60 PSI (usually), down to a 40, and it’s doing that a lot and its very frequent, then usually that is a bad tank.

What does a bladder tank do?

It maintains a desired range of water pressure in the distribution system. It minimizes pump cycling, preventing frequent starts and stops and protecting pumps from motor burnout or other water system components from damage. It protects against water hammer.
