What is a keystone piston ring

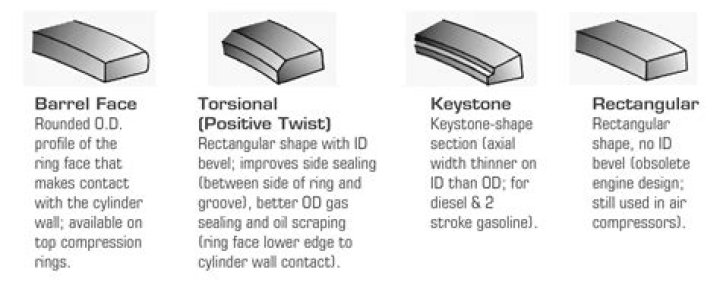

The keystone ring is used in the top groove of a piston. It is a compression ring with a wedge cross section. Its tapered sides create a running surface allowing radial movement of the ring in the grooves during engine operation which cause the axial clearance in the groove to increase and decrease reducing sticking.

What are the 3 types of piston ring and give the function each?

Piston rings from Perkins come as three rings. They are the top compression ring, then the intermediate compression ring and finally the oil control ring. These parts are relatively small in size but play a large role in the main cylinder block of your engine.

How many types of piston rings are used?

Most pistons have at least two piston rings per cylinder. Automotive piston engines typically have three rings per cylinder. The top two rings— known as compression rings— are primarily for sealing the combustion chamber.

What are the three types of compression rings?

Compression ringsTypeDescriptionC1Rectangular compression ringC2Taper faced compression ringC3Internally beveled compression ring

How much does piston ring replacement cost?

Plus, your cylinders and pistons may need reconditioning. Replacing the piston rings is extensively intricate and laborious, as they’re placed within the bowels of the engine. As a whole, you can expect an average piston rings replacement cost of around $1,500 to $2,500.

How do I know what size piston rings I need?

Measure and record both the axial height and radial width of the oil ring assembly while off the piston. Using either a set of calipers or a micrometer is sufficient. After recording those measurements, perform the same axial height and radial width measurements of your compression ring(s).

What type of piston rings should I use?

The three popular types of top compression ring face coatings, chrome, moly, and cast iron, each has advantages of its own with respect to operating conditions. Moly has a very high resistance to scuff. Chrome has good resistance to scuff but does not exhibit moly’s oil retention capabilities.

Piston ring size and configuration vary depending on engine design and cylinder material. Piston rings commonly used on small engines include the compression ring, wiper ring, and oil ring. A compression ring is the piston ring located in the

Why piston rings are harder than liner?

Which piston ring goes on top?

What are the 4 piston rings?

Rings are generally of spherical graphite cast iron because of the strength and limited self lubricating properties. With modern long stroke engines the rings do considerably more rubbing than equivalent sections of the liner and so the rubbi

What are signs of bad piston rings?

Article first time published on

White or gray exhaust smoke.Excessive oil consumption.Low power for acceleration.Overall loss of power or poor performance.

Is it worth fixing piston rings?

It depends on how long did you drive with a bad piston ring, some machining work might be needed to sleeve the damaged cylinder. For some cars it is easier to get a new (used) engine. Otherwise replacing it may be worthwhile, though still a lot of l

Can you drive with bad piston rings?

You can drive your vehicle with bad piston rings for certain kilometres but you have to get it fixed as soon as possible or you will damage your engine. 1)The compression rings provide sealing above the piston and prevent the gas leakage from

What causes piston rings to go bad?

Engine oil quality, bad combustion process, wrong fuel timing, worn cylinders; are the normal cause of piston ring wear. Sticky rings due to carbon or sludge deposit, and breaking or crack on the ring can result due to wear.

Do all piston rings need to be gapped?

Setting the correct ring gap on aftermarket piston rings is crucial for proper performance and engine longevity. Because piston rings need to be expanded to fit over the diameter of the piston itself before they find their home in the ring gr

Do I need to gap my piston rings?

Gapping the piston rings is important to the performance and reliability of the engine. Piston rings expand as the engine comes up to temperature. Too big a gap and the ring won't expand enough causing too much blow-by of the combustion gases

Are chrome piston rings better?

Selection of the best replacement piston rings needn't be particularly difficult. ... Chrome-faced compression rings are a popular choice among some OEMs. While chrome is extremely durable, it does not offer the oil-carrying capabilities of m

Does honing a cylinder make it bigger?

I have heard several guys say they honed out the cylinders and come to find out it was that they used a glaze breaker to clean up the cylinder walls and put a “cross hatched pattern” on the walls to seat the new set of rings. Yes! Honing operatio

What happens if you put piston rings upside down?

With the taper of the ring upside down, oil will be scraped up with each upward stroke to be left in the combustion chamber and burned on the power stroke. It only takes a minute, check all rings on the piston for correct installation before

What does D and Dy mean on a piston ring?

The 'D' and 'DY' may be an indication/distinction between the Top ring and the Scarper ring. The Top ring will most likely be a silvery/matt finish w/the Scraper being 'darker'. Any nomenclature or inside bevel always faces 'UP'. Hope this he

What is engine top end?

Essentially the top-end is comprised of the cylinder head, or heads, with the valve train and the camshaft/s. ... Usually there are two lobes per cylinder; the first is used to open and close an intake valve and the other operates the exhaust

What should piston ring end gap be?

Most piston ring manufacturers recommend a minimum end gap of . 004 inches times the bore diameter for the top piston compression ring. So for a 4 inch bore, the standard end gap would be . 016 inches.

Do piston rings rotate in cylinder?

Once after piston rings and engine cylinders walls wear they are no longer perfectly round and cylinder walls become tapered , piston rings become oval to wearing to shape of cylinder. After piston rings break in period and Cylinders wear , rings

What is the best material for Pistons?

Aluminium alloys are the preferred material for pistons both in gasoline and diesel engines due to their specific characteristics: low density, high thermal conductivity, simple net-shape fabrication techniques (casting and forging), easy mac

Can you change piston rings without removing the engine?

yes. If the engine needs to be taken that far apart, it is usually easier to remove it first. If you need to remove the pistons, then I'm assuming at least you plan to replace the rings. In many cases, the cylinder bore need to be worked on t

Which Piston Ring Goes On top black or silver?

The black/dark ring goes on the bottom. The silver one goes on top. One side of the rings will have a dot or a couple letters or some kind of mark to indicate that is the "top" of the ring.

Can you replace just piston rings?

Just replacing piston rings is not a normal procedure. Normally, the cylinder would be de-glazed by honing, the piston ring grooves would be re-machined to a size to be a correct tolerance on a new ring and a new ring spacer.

How do you temporarily fix worn piston rings?

The cheapest way to “temporarily repair” this engine is to use a thicker oil than normal. The thicker oil will help your rings seal the combustion chamber better than normal oil. Keep doing this until the engine falls apart or at least wait u

Can worn piston rings cause rough idle?

Your car's engine compression can tell you a lot about the, overall health of the engine. So, if your car is blowing blue smoke out of the tailpipe, or losing oil, you could have; leaking piston rings. ... As a result, Low or uneven compression w

Will seafoam clean piston rings?

In addition to using HIGH MILEAGE, you can run Sea Foam Spray through your engine's intake or spray it directly into cylinder cavities to let pistons soak, cleaning rings from the top end. It will also clean intake valves, which is particularly impo

How do you Unseize an engine from sitting?

If you have an engine that seized from sitting for a long time, pull the spark plugs out of all the cylinders. Fill the cylinders with engine oil and let it sit for a few days. Then, try turning the engine over with a breaker bar. If it moves
