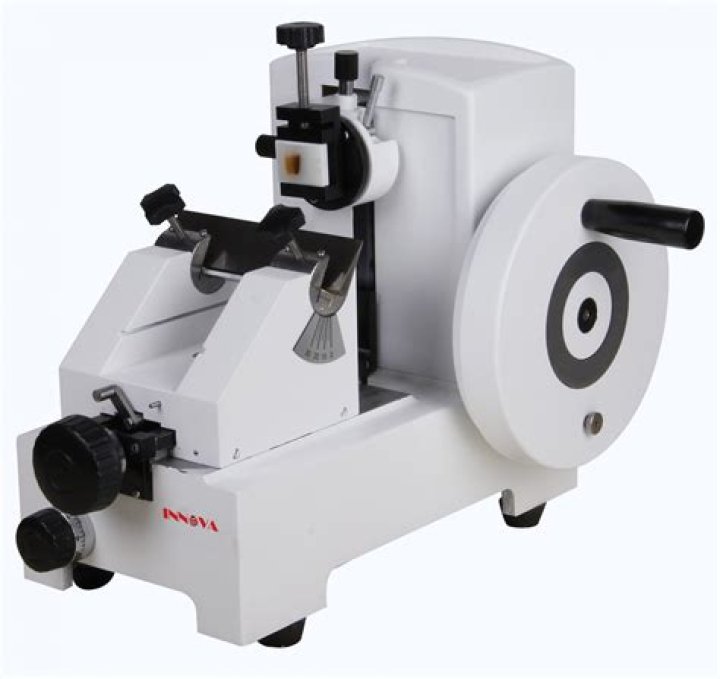

What is a rotary microtome

: a microtome in which the object to be cut moves vertically downward against the knife — compare sliding microtome.

Why is rotary microtome used?

The rotary microtome is the most common instrument found in a histology laboratory. … This is to reduce vibration during microtomy, in which stability is critical during sectioning to prevent undulations (washboarding) in the paraffin sections.

What are the different types of microtome?

• hand microtome.
• rotational microtome.
• sledge microtome.
• cryostat (freezing microtome)
• ultramicrotome.

What is a microtome used for?

A microtome is used to make thin slices of tissue (usually 4 μm but can be 2–10 μm). The cut tissue is floated over a water bath, in order to eliminate wrinkles and distortion in the tissue, and picked up on a slide.

What are the parts of rotary microtome?

Rotary microtome parts First, there is the microtome base plate or stage, where rails secure the knife. Second, there is the knife holder base. Then, there is the knife holder. In addition, there is the cassette clamp or block holder, which hold the paraffin block in place.

Who invented rotary microtome?

In 1835, Andrew Prichard developed a table based model which allowed for the vibration to be isolated by affixing the device to the table, separating the operator from the knife. Occasionally, attribution for the invention of the microtome is given to the anatomist Wilhelm His, Sr.

What is the knife used in rotary microtome?

Electron Microscopy Technique: After embedding tissues in epoxy resin, a microtome equipped with a glass or gem grade diamond knife is used to cut very thin sections (typically 60 to 100 nanometer).

How is the microtome's knife sharpen?

Microtome knife sharpeners are safe and easy to use, provide efficient sharpening of microtome knife edges. Honing procedure of knife is done through glass plates, copper and bronze plates. Honing refers to grinding the cutting edge of a knife on the hard abrasive surface to sharpen the knife.

Where is rotary microtome used?

The rotary microtome made by microTec is a manually operated cutting device for all types of work with paraffin and hard cutting technology in the field of biology, medicine, and industry. It is used for making microscopic preparations for subsequent illumination (e.g., human tissue).

What are histological features?

Histology, also known as microscopic anatomy or microanatomy, is the branch of biology which studies the microscopic anatomy of biological tissues. Histology is the microscopic counterpart to gross anatomy, which looks at larger structures visible without a microscope.

Article first time published on

What is meant by serial sections?

Serial sectioning is defined as obtaining a continuous ribbon of sections from a paraffin block and placing all the sections on multiple slides. Serial sections are meant for the analysis of tissue changes at different measured depths of the sections taken.

Is microtome the oldest?

The first microtome suitable for sectioning animal tissues was constructed in 1848, with the popular Cambridge Rocker (1885), Minot (1886), and sledge microtomes (1910) manufactured later. Paraffin wax for infiltration and support during sectioning was introduced during the mid1800s.

What is the use of embedding center?

The embedding center is the ideal modular tissue embedding machine for the discerning customer. The mold and cassette warming trays are located at the same level and interchangable to accommodate individual workflow requirements. The model is to meet all the embedding requirements of the modern histology laboratory.

Is done on a knife by Edge last with a toe to heel direction?

The procedure is the reverse of honing. The knife is first fitted with its appropriate back, then laid obliquely on the strop and with the cutting edge behind, (EDGE LAST) is pushed backward and drawn forward in a toe to heel direction.

What are common problems during Microtomy?

• The Ribbon is Not Forming. The most common reasons for the ribbon not forming are either the wax is too hard, or the knife is at the wrong clearance angle. …
• Compression. …
• Ribbon Comes Off in a C. …
• Sections Roll Up on Knife Edge. …
• Thick/Thin Sections. …
• Knife Line. …
• Tears.

How do I clean and sanitize kitchen knives?

Wash your knife with dish soap and hot water after each use. Rinse with clear water. Air-dry or pat dry with clean paper towels. Handle kitchen knives carefully by their handles; don’t pile them into the sink or dishpan, but wash them one by one and rack them with handles up.

What is cryostat microtome?

The cryostat is essentially an ultrafine “deli-slicer”, called a microtome, placed in a freezer. The cryostat is usually a stationary upright freezer, with an external wheel for rotating the microtome. The temperature can be varied, depending on the tissue being cut usually from minus 20 to minus 30 degree Celsius.

What are connective tissues?

Tissue that supports, protects, and gives structure to other tissues and organs in the body. … Connective tissue is made up of cells, fibers, and a gel-like substance. Types of connective tissue include bone, cartilage, fat, blood, and lymphatic tissue.

What is histological anatomy?

Definition of histology 1 : a branch of anatomy that deals with the minute structure of animal and plant tissues as discernible with the microscope. 2 : tissue structure or organization. Other Words from histology Example Sentences Learn More About histology.

What is histological structure?

Histology: The study of the form of structures seen under the microscope (light, electron, infrared ). Also called microscopic anatomy, as opposed to gross anatomy which involves structures that can be observed with the naked eye. … The word “histology” came from the Greek “histo-” meaning tissue + “logos”, treatise.

What is histological technique?

In order to study tissues with a microscope they must be preserved (fixed) and cut into sections thin enough to be translucent. Fundamentally it consists of a chemical or physical method of killing the tissue and yet retaining characteristic peculiarities of shape and structure. …

How do you perform histopathology?

1. Use an Appropriate Schedule. An appropriate schedule is chosen for the tissue type and size. …
2. Provide Additional Fixation. …
3. Maintain Reagent Quality. …
4. Use High-Quality Wax. …
5. Avoid Hazardous Reagent. …
6. Orientate Specimens Carefully. …
7. Choose an Appropriate Mold. …
8. Handle Specimens Gently.

Which of the following stains is used for routine histological examination?

Hematoxylin and eosin stain is the most commonly used tissue stain for routine histological examination.

What is freezing Microtomy?

Quick Reference. A microtome in which the tissue sample is frozen and maintained in a frozen state with liquid carbon dioxide. It is useful for (rapidly) obtaining sections of unfixed soft tissue.

Who is the father of animal histology?

Xavier BichatKnown forthe concept of tissueScientific careerFieldsHistology Pathological anatomySignature

How do you Deparaffinize a slide?

Before deparaffinization, place the slides in a 55°C oven for ten minutes to melt the paraffin. Deparaffinize slides in 2 changes of xylene or xylene substitute for 5 minutes each. Transfer slides to 100% alcohol, 2 changes for 3 minutes each and transfer once through 95% alcohol for 3 minutes.
