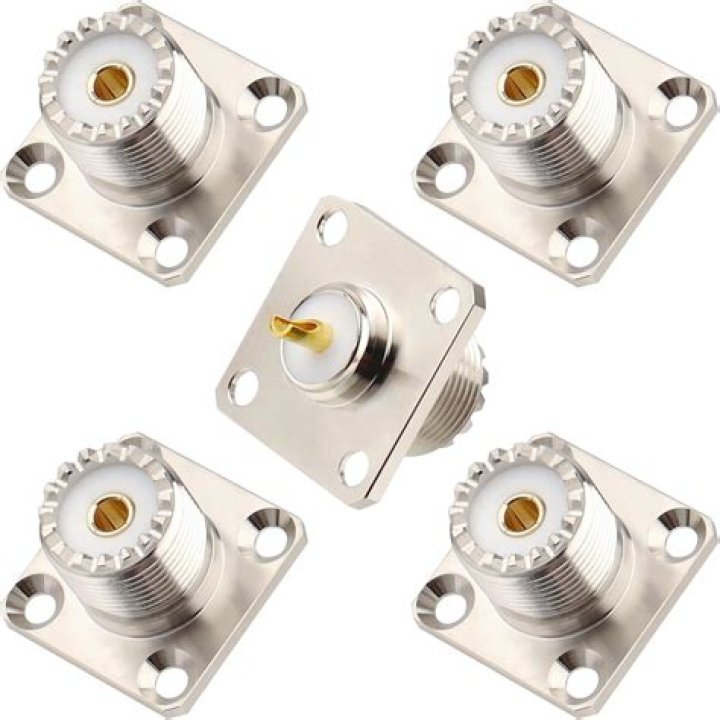

What is a so 239 connector

The SO239 jack and PL259 plug are the most common radio connectors for tabletop shortwave and amateur radio products. Sometimes the PL259 plug is also referred to as a UHF plug.

ARE SO-239 and PL-259 the same?

Typically, the SO-239 (UHF Female/UHF Jack) is installed ON THE RADIO, and the PL-259 (UHF Male/UHF Plug) is installed ON THE CABLE. The two “mate” and are collectively known as a UHF Connection.

What is a PL259?

PL-259 Connectors, Adapters & Reducers for Ham Radio Applications. … The PL-259 is also known as a UHF connector with the common male/female variants. The male UHF PL259 is the most common connector used to interconnect equipment and antennas in ham shacks.

Are UHF and VHF connectors the same?

The UHF connector is a name for a threaded RF connector. … The design was named during an era when “UHF” meant frequencies over 30 MHz. Today, Ultra high frequency (UHF) instead refers to frequencies between 300 MHz and 3 GHz and the range of frequencies formerly known as UHF is now called “VHF“.

What is a UHF female connector?

Pasternack UHF female connectors are built with 50 Ohm impedance. … UHF female connectors are available in 4 hole flange, bulkhead, 4 hole panel or mountless options. These UHF female connectors designs are available in clamp/solder, crimp/solder, field replaceable or solder attachments.

Should I use VHF or UHF?

The quick answer is: choose VHF if you plan to only use the radios outdoors and in an area that is relatively free of obstructions, such as buildings. If you plan on using the radio indoors, both indoors and out, or outdoors but around buildings, choose UHF.

What is the coaxial cable connector commonly used on test equipment and in Lans?

BNC connectors are used with miniature-to-subminiature coaxial cable in radio, television, and other radio-frequency electronic equipment, test instruments, and video signals.

What does VHF stand for?

VHF, in full very high frequency, conventionally defined portion of the electromagnetic spectrum including any radiation with a wavelength between 1 and 10 metres and a frequency between 300 and 30 megahertz. VHF signals are widely employed for television and radio transmissions.

How do I know if my antenna is UHF or VHF?

An outdoor UHF antenna has short elements, just a few inches wide, and they’re usually arranged in parallel rows of straight prongs. An outdoor VHF antenna has longer elements, arranged in an easy-to-remember V-shaped pattern.

Are N connectors waterproof?

IP67 N-Type connectors are a stable waterproof solution with a threaded coupling mechanism for increased vibration resistance. N-Type connectors are ideal for applications that require high power handling and low VSWR and insertion loss.

Article first time published on

What are the types of cables and connectors?

There are three types of cable connectors: coaxial cable connectors, twisted-pair cable connectors, and fiber-optic cable connectors with the twisted pair.

How do you connect BNC to coaxial cable?

Properly connecting a BNC connector to coaxial cable is an acquired skill. You need two tools — a wire stripper that can cut through the various layers of the coaxial cable at just the right location and a crimping tool that crimps the connector tightly to the cable after you get the connector into position.

What is a RJ45 connector?

The eight-pin RJ45 connector is a standardised interface which often connects a computer to a local area network (LAN). This type of connector was originally developed for telephone communications but is now used in a range of applications. The abbreviation, RJ45, stands for Registered Jack-45.

Do police use UHF or VHF?

Police radios operate in a 700/800 MHz UHF band.

Is VHF the same as FM?

VHF- Very High Frequency Very high frequency is commonly used for FM radio broadcast, two-way land mobile radio systems, long-range data communication, and marine communications, just to name a few. … The highest low band VHF is 88-108 MHz and operates the commercial FM radiobroadcast band.

Who uses VHF radio?

What is a “Marine VHF Radio”? Although not required in recreational boats under 65.5 feet long, a Very High Frequency (VHF) Marine Radio allows instant communication between your boat and other boats, marinas, bridges, and the United States Coast Guard (USCG).

Does UHF TV still exist?

These issues are greatly reduced with digital television, and today most over-the-air broadcasts take place on UHF, while VHF channels are being retired. … Additionally, in 2019 the US removed channels 38 through 50 for cellular phone service. The US UHF channel map now only includes channels 14 through 36.

What channels are UHF and VHF?

In the US and Canada, the VHF television band occupies frequencies between 54 and 216 MHz and the UHF band between 470 and 890 MHz. In general, VHF channels are numbered 2 to 13 and UHF channels 14 to 51.

Will a UHF antenna pick up VHF?

It’s designed to pick up UHF signals at astounding distances, and it does. But, if you read the fine print we also tell you that it will pick up VHF signals at fairly close range. … In fact a coat hanger or even a potato can pick up VHF channels from 25 miles away.

How far will VHF transmit?

A typical VHF station operates at about 100,000 watts and has a coverage radius range of about 60 miles.

What does UHF mean?

UHF, abbreviation of ultrahigh frequency, conventionally defined portion of the electromagnetic spectrum, encompassing radiations having a wavelength between 0.1 and 1 m and a frequency between 3,000 and 300 megahertz.

How is VHF transmitted?

The primary mode of propagation for VHF radio waves is through direct waves. These travel in a straight line, becoming weaker as distance increases. Transmitting and receiving antennas must be able to ‘see’ each other for communications to be effective, so antenna height is critical in determining range.

How do you test a PL 259 connector?

Check the other PL259 by putting a test lead on the shell and the other on the center connector. So far, so good. There should be no electrical conductivity between the shell and the center pin. Put a test lead on each center pin and check the reading.

Can I cut VHF antenna cable?

Can I cut the cable on my VHF antenna? Yes, if you need to. However, you should leave at least three feet of coax, measured from where the cable exits the antenna.

How do I test my VHF antenna?

1. Disconnect the antenna at the masthead.
2. Connect the VHF radio to the SWR meter, and the other port of the SWR meter to end of the coax that was connected to the radio.
3. Repeat with antenna connected.

Is N connector same as SMA?

An additional advantage of type-N connectors is that they are meant to be hand-tightened, whereas SMA connectors should be tightened with a torque wrench to achieve the best performance. The main advantage of the SMA connector seems to be size, since it’s quite a bit smaller.

What are Type-N connectors used for?

The N connector (also, type-N connector) is a threaded, weatherproof, medium-size RF connector used to join coaxial cables. It was one of the first connectors capable of carrying microwave-frequency signals, and was invented in the 1940s by Paul Neill of Bell Labs, after whom the connector is named.

What is an male connector?

A male connector is a connector attached to a wire, cable, or piece of hardware, having one or more exposed, unshielded electrical terminal s, and constructed in such a way that it can be inserted snugly into a receptacle ( female connector ) to ensure a reliable physical and electrical connection .

What are the 4 types of connectors?

Connectors are used between two separate sentences. There are four types of conjunctions: coordinating, correlative, subordinating, and conjunctive adverbs (discussed elsewhere).

What are the 3 types of connectors?

Electrical connectors are classified into three types based on their termination ends: board-to-board connectors, cable/wire-to-cable/wire connectors, and cable/wire-to-board connectors.

What are cable connectors called?

There are three types cable connectors in a basic cabling installation techniques: twisted-pair connectors,coaxial cable connectors and fiber-optic connectors.
