What is a standard switch in VMware

A standard switch has the ability to move layer 2 traffic between virtual machines internally. This means that two virtual machines on the same subnet and on the same ESXi host can communicate directly; the traffic does not need to leave the ESXi host.

What is standard virtual switch?

A vNetwork Standard Switch (vSwitch) is a virtual switch that can be configured on a single ESXi host. By default, this vSwitch has 120 ports. The maximum number of ports per ESXi host is 4096.

How do you make a standard switch?

Click Manage>Networking>Virtual Switches. Click on Globe icon with green + sign. Step 5: Select New Standard Switch and click Next. At this point, virtual adapter is needed to connect outside world, and if virtual adapter is not provided at this point, you wouldn’t be able to connect outer network.

What is standard and distributed switch?

Standard switch is created in host level i.e. we can create and manage vSphere standard switch independently on ESXi host. Inbound traffic shaping is not available as a part in standard switch. vSphere Distributed Switch. vSphere Distributed switch allows a single virtual switch to connect multiple Esxi hosts.

What handles the virtual machine traffic on standard switch?

Virtual machines have network adapters (or vNICs) that you connect to port groups on the standard switch. Every port group can use one or more physical NICs to handle its network traffic.

How do I create a virtual switch in VMware?

1. Login to the VMware ESXi sever using VMware vSphere client.
2. Select the Configuration tab.
3. Select Networking in the Hardware section of the page.
4. Click Add Networking link.
5. Select Virtual Machine option to create a virtual switch to handle virtual machine network traffic.
6. Click Next.

How does a vSwitch work?

A vSwitch works similar to a physical switch — with some limitations — and controls how virtual machines communicate with one another. The vSwitch uses the physical NICs (pNICs) associated with the host server to connect the virtual network to the physical network.

What is vSS and VDS in VMware?

VSphere Standard Switch (vSS) and vSphere Distributed Switch (vDS) provide network connectivity among virtual machines, different networks and workloads. You can use vSS and vDS at the same time, but not on the same networks or port groups. … You must also have a vSphere Enterprise Plus license to install vDS.

What is HA and DRS in VMware?

The most common types of VMware vSphere clusters are High Availability (HA) and Distributed Resource Scheduler (DRS) clusters. HA clusters are designed to provide high availability of virtual machines and services running on them; if a host fails, they immediately restart the virtual machines on another ESXi host.

What is ESXi stand for?

ESXi stands for “ESX integrated”. VMware ESXi originated as a compact version of VMware ESX that allowed for a smaller 32 MB disk footprint on the host.

Article first time published on

How do you create a vSwitch?

Create a virtual switch by using Hyper-V Manager Open Hyper-V Manager, select the Hyper-V host computer name. Select Action > Virtual Switch Manager. Choose the type of virtual switch you want. Gives virtual machines access to a physical network to communicate with servers and clients on an external network.

What types of port groups can you create on a standard switch?

512- Port groups per standard switch. 1016 – Maximum active ports per host. 4096 – Total virtual network switch ports per host. 4088 – Virtual network switch creation ports per standard switch.

What is hypervisor used for?

A hypervisor, also known as a virtual machine monitor or VMM, is software that creates and runs virtual machines (VMs). A hypervisor allows one host computer to support multiple guest VMs by virtually sharing its resources, such as memory and processing.

What is physical switch?

A physical switch is basically a tangible device that one can touch and feel, guiding the flow of the network traffic by basically forwarding the data packets to the designated device that leads to a well enabled range of networking functions in exchange.

What are the two types of virtual switches?

Hyper-V Networking – Virtual Switches. There are three types of virtual switches that may be created in the Virtual Switch Manager. They are External, Internal, and Private. Let’s briefly take a look at the differences between these types of switches.

What is VMware virtual switch?

Like a physical switch, a virtual switch lets you connect other networking components together. Virtual switches are created as needed by the VMware Workstation software, up to a total of nine switches. You can connect one or more virtual machines to a switch. The host-only network uses VMnet1. …

How do I add a host to a standard switch?

1. Open the web-client and navigate to >Host and Clusters >Select the vCenter >Select the Datacenter > Select an ESX host.
2. Select the Configure tab, and the Networking section.
3. Select the Virtual Switches catagory.
4. Click the Add host networking icon.

What is VLAN in VMware?

A VLAN (virtual local area network) is a logical group of workstations, servers and network devices that appear to be on the same LAN despite their geographical distribution.

What is snapshot in VMware?

A VMware snapshot is a copy of the virtual machine’s disk file (VMDK) at a given point in time. Snapshots provide a change log for the virtual disk and are used to restore a VM to a particular point in time when a failure or system error occurs. Snapshots alone do not provide backup.

What is difference between HA and DR?

High Availability (HA) provides a failover solution in the event a Control Room service, server, or database fails. Disaster Recovery (DR) provides a recovery solution across a geographically separated distance in the event of a disaster that causes an entire data center to fail.

What is cluster in VMware?

VMware Pages A cluster is a group of hosts. When a host is added to a cluster, the host’s resources become part of the cluster’s resources. The cluster manages the resources of all hosts within it. Clusters enable the vSphere High Availability (HA) and vSphere Distributed Resource Scheduler (DRS) solutions.

What is host proxy switch?

A proxy switch is located on an ESXi host that is managed by the vCenter Server and is a member of the switch. A distributed switch also provides virtual port state management so that port state is maintained when vCenter Server operations move a virtual machine from one host to another.

What is port Group?

Port groups aggregate multiple ports under a common configuration and provide a stable anchor point for virtual machines connecting to labeled networks. Each port group is identified by a network label, which is unique to the current host. … A port group is always connected to a single vSwitch.

What is vSAN in VMware?

VMWare vSAN is a software-defined storage product that is used in collaboration with VMware ESXi hypervisor. A software-defined storage provisions and manages storage based on policies, regardless of the underlying hardware. … These policies can be assigned to individual virtual machines effortlessly.

What are the 3 types of virtualization?

• Desktop Virtualization.
• Application Virtualization.
• Server Virtualization.
• Network Virtualization.
• Storage Virtualization.

What is difference between VMware and vSphere?

As defined by VMware, vSphere is an enterprise-scale virtualization platform. In fact, vSphere is the brand name for VMware’s suite of virtualization products and features. This solution allows you to build a reliable and resilient infrastructure to suit basically any business needs while staying on budget.

Is ESXi a OS?

VMware ESXi is an operating system-independent hypervisor based on the VMkernel operating system that interfaces with agents that run on top of it. ESXi stands for Elastic Sky X Integrated. ESXi is a type-1 hypervisor, meaning it runs directly on system hardware without the need for an operating system (OS).

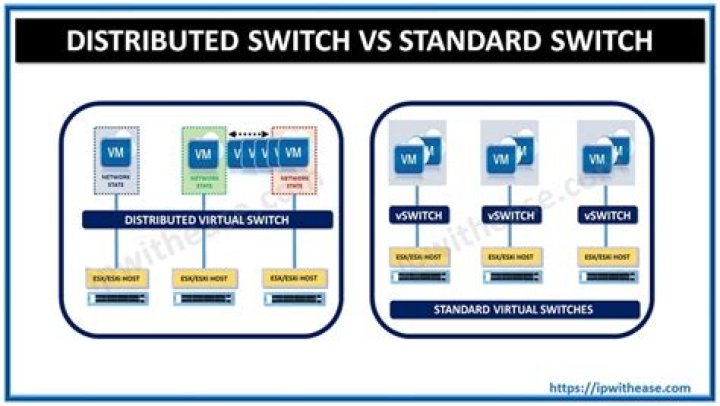

What is the difference between standard switch and distributed switch in VMware?

vSphere Standard Switch is used to provide network connectivity for hosts, virtual machines and to handle VMKernel Traffic. … Networking vMotion is not available in standard switch. vSphere Distributed switch. vSphere Distributed switch allows a single virtual switch to connect multiple Esxi hosts.

Why is making a virtual switch advantageous?

A virtual switch has a few key advantages: Helps in easy deployment and migration of virtual servers. Allows network administrators to manage virtual switch deployed through a hypervisor. Compared to a physical switch, it’s easy to roll out new functionality, which can be hardware or firmware related.

What is Hyper-V virtual switch?

Hyper-V Virtual Switch is a software-based layer-2 Ethernet network switch that is available in Hyper-V Manager when you install the Hyper-V server role. Hyper-V Virtual Switch includes programmatically managed and extensible capabilities to connect VMs to both virtual networks and the physical network.

What is Hyper-V extensible virtual switch?

Windows Server 2012 introduced Hyper-V Extensible Switch. It’s a virtual switch that runs in OS running in Hyper-V’s parent partition. It’s mainly used for forwarding packets flowing in and out of child partitions (VMs and containers).
