What is a trammel tool

Trammel heads are used in layout work to scribe circles and arcs that are too large to be drawn with a divider or compass. … Like dividers, when used with a beam, trammel heads are an effective transfer measuring tool. The trammel points are positioned on either side of an object or set distance.

What is trammel tool?

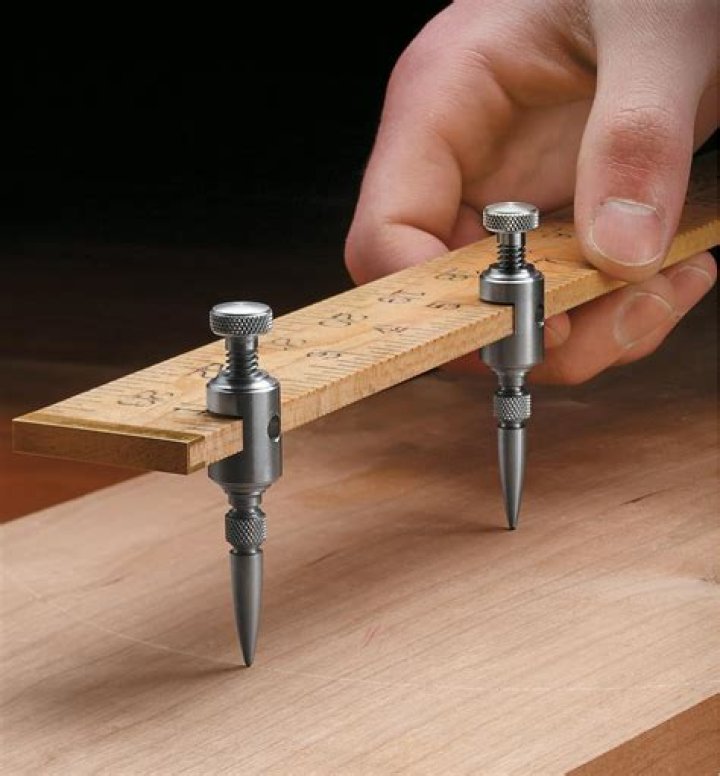

Trammel heads are marking out tools primarily used to draw large circles or arcs. They are sometimes called trammel points, or trammels. Together with a beam, usually made from wood or metal, trammel heads make up a beam compass. … They can be also be used with a metal or wooden ruler.

What is a trammel Rod?

Trammels or trammel points are the sockets or cursors that, together with the beam, make up a beam compass. Their relatively small size makes them easy to store or transport.

Is a trammel a layout tool?

Trammel. The hermaphrodite calliper (Figure 1-8) is a tool used to layout lines that are parallel with the edges of the work piece(Figure 1-9). It can also be used to locate the center of cylindrical shaped workplaces (Figure 1-10).

Which is not a marking tool?

Which of the following is not a marking tool? Explanation: Marking tool is a tool that is used for marking lines on wood. Bevel, square and scribing knife are examples of marking tools. Chisel is a cutting tool and is used to cut shaping joints.

What does a try square look like?

A try square is made of two key parts, the blade (also known as a beam or tongue) and the stock, which are fixed together at 90° to form an ‘L’ shape. … Typically the blade and the stock will be rectangular in profile, though on some wooden squares the ends of the blade and the stock might be cut to a decorative shape.

Is a trammel a precision tool?

Trammel, trammel sets, and other marking gauge options allow for precision marking and cutting. … A precision trammel set includes two scriber points and two pencil points. Adjustable trammels allow points with pencils, ballpoint pens, crayons or soapstone sticks to be replaced.

What is divider and compass?

Dividers and compasses are drawing instruments that have been used since antiquity to measure distances, transfer lengths from one drawing to another, and draw circles. … It also usually has two legs, one with a sharp point for holding the instrument in place and one with a pen or pencil point for tracing out a circle.

Which is used for drawing large circles divider or trammel?

Variants. A beam compass is an instrument, with a wooden or brass beam and sliding sockets, cursors or trammels, for drawing and dividing circles larger than those made by a regular pair of compasses. Scribe-compasses is an instrument used by carpenters and other tradesmen.

What is a bow compass used for?

A small pair of compasses, one leg of which carries a pencil or pen for drawing circles.

Article first time published on

What is steel beam Trammel used for?

Rigid, well-designed trammel for layout, scribing, and measuring distances and circles. The top of the beam is flattened so that when the trams are clamped in position, they will not turn from pressure on the points.

What are marking tools?

Marking Tools are meant to transfer notations or designs for use while quilting or sewing. There are many reasons quilters and sewists use marking tools; marking where two pieces should meet, marking a quilt design on a quilt top, tracing a pattern onto fabric, just to name just a few.

Which of the following tool is used in both marking and measuring?

Both try and engineer’s squares are used for the same purpose i.e. to mark lines at 90° to an edge. However, a try square is used on timber while an engineer’s square is used while working with metals. Both can be used on plastics.

Which machine tool is known as the mother machine tool?

Known as the mother of all machine tools, the lathe was the first machine tool that lead to the invention of other machine tools. It is used to perform turning operations in which unwanted material is removed from a workpiece rotated against a cutting tool.

What is sliding T level?

A sliding T bevel, also known as a bevel gauge or false square is an adjustable gauge for setting and transferring angles. Different from the square, which is fixed and can only set a 90° angle, the sliding T bevel can set any angle and transfer it on another piece.

Which file is used in carpentry shop?

A rasp is coarse form of file used for coarsely shaping wood or other material. Typically a hand tool, it consists of a generally tapered rectangular, round, or half-round sectioned bar of case hardened steel with distinct, individually cut teeth.

Is try square a measuring tool?

Try squares are primarily used to measure the accuracy of a right angle.

What is the most common tool used for drawing circles?

Which is the most common tool used for drawing circles? Explanation: Compass is used to draw circles. Its design is similar to the divider, except in compass there is a provision for the attachment of pencil or lead in one of the legs of the compass.

Which tool is used for laying out big circles?

Explanation: Trammel tool is used for laying out large circles.

Which tools are used in fitting shop?

• Steel rule & Measuring Tape.
• Surface Plate.
• Divider.
• Try square.
• Inside Calliper.
• Odd leg calliper.
• Outside Calliper.
• Vernier Height Guage.

What is the difference between calipers and dividers?

Compass, divider, and caliper are basically instruments that have two legs pivoted to each other at the top and are concerned with small-distance measurement or transfer. The compass and divider have straight legs; the caliper has curved legs. … Such dividers were large, often half as tall as a man.

What is the most important tool used in drawing?

The most important tool for drawing is the Pencil function of the software. In the Pencil Tool Preferences tolerance levels of the pencil movement can be preset.

What is a drafting tool?

Drafting tools are instruments that can be used for measurement and layout of drawings or to improve consistency and the speed for creating standard drawing elements.

Why do compass legs bend?

You should always bend the legs of the compass to keep them perpendicular to the paper. Otherwise, the pressure you put on the compass while using it will make the legs open up a little bit more, thus causing accuracy problems.
