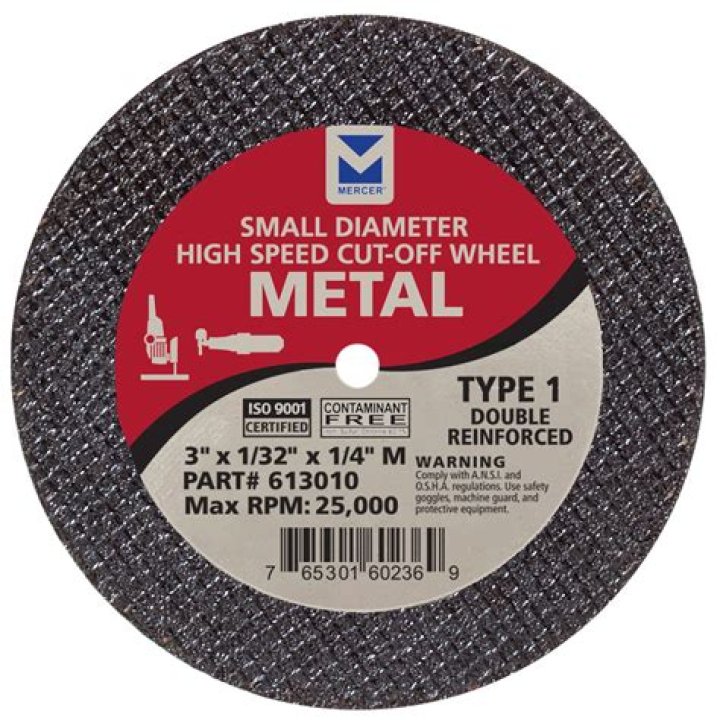

What is a Type 1 cut off wheel

A type 1 cut-off wheel, also known as a type 41 cut-off wheel, is completely flat. It is typically considered the most efficient type of wheel for general all-purpose cutting. Because it lacks a depressed center, it provides more cutting surface and minimizes interference with the workpiece.

What is a Type 1 abrasive wheel?

Type 1 Wheel – A thick disc shaped wheel intended for grinding on its periphery as in bench grinders or straight grinders.

What is a Type 2 grinding wheel?

The Type 2, Type 37, Type 3701 and Type 3703 grinding wheels are intended for surface grinding on metal, concrete, terrazzo, ceramics. They are used for face grinding and are distinguished by different clamping mode.

What is a Type 1 blade?

: Gator Blade type 1 metal cutting wheels are designed when thin cuts are required on ferrous metals, steel and alloys. Offered in the most popular sizes for various grinders and saws. Cutting masonry, concrete, block, bricks and asphalt.

What grit is best for cut-off wheel?

You can use your most common abrasive grain which is Aluminum Oxide and any grit range should suffice for these metals. Aluminum oxide cut-off wheel with 60 and 46 grit are ideal for sheet metal with minimum burring.

What is a Type 28 Grinding Wheel?

Type 28 Depressed Center Wheels Aluminum Oxide abrasive is suitable for cutting and grinding ferrous metals. Ceramic abrasive is suitable for fast cutting on almost all materials, including stainless steel, mild steel, and aerospace alloys.

What does 27 cutoff wheel mean?

A Type 27 Cut Off Wheel is often referred to as a depressed center wheel. The mounting hardware is in the depressed center, allowing for flush cutting. The Type 27 Cut Off Wheel must be used with an appropriate guard and a depressed center back flange. The center hub protects the user from cutting too deeply.

How thick of metal can a cut-off wheel cut?

Resinoid-bonded abrasive cutting wheels are available in various sizes and thicknesses. The most popular range is 2 to 16 inches in diameter, and common thicknesses are from 0.045 in. to 1⁄8 in. Thinner wheels remove less material during the cut.

What does a cut-off wheel do?

Cutting wheels, or cut-off wheels, differ from grinding wheels in their function and structure. Where grinding wheels use an abrasive to grind large pieces of material off a workpiece from a shallow angle, cutting wheels typically make narrow, precise cuts at 90-degree angles.

What is a cut-off wheel used for?

In short, cut-off wheels are used to change the shape of metal. Either to cut it off, or to cut out portions of it. They are not made for fine work. They leave the surface rough and it will likely need to be deburred and smoothed before using the pieces for their final application.

Article first time published on

What are the 3 types of grinding wheels we use?

There are three main types of grinding wheels, where various numbers differentiate between wheels with specific properties and uses — type 1 snagging wheels, type 27 grinding wheels and type 28 grinding wheels.

What is a CBN grinding wheel?

What is a CBN Grinding Wheel? A CBN wheel is made from cubic boron nitride. This material is one of the hardest materials available, second only to diamonds. The main feature of the material is that it features a high abrasion resistance and thermal conductivity that maintains its sharp cutting edges.

What are the standard types of grinding wheels?

Straight Grinding Wheels. You see them all the time. …
Large Diameter Grinding Wheels. Large diameter wheels are like straight wheels, but they are much larger. …
Grinding Cup Wheel. …
Grinding Dish Wheel. …
Segmented Grinding Wheel. …
Cutting Face Grinding Wheel. …
Grits Sizes. …
Electroplated Bond.

Will a metal grinding wheel on concrete?

Wheels intended for use on masonry are made with a silicon-carbide abrasive. Metal-cutting wheels contain either zirconia or aluminum oxide, depending on their intended use. … Silicon-carbide abrasive particles are sharper and harder, and thus continue cutting efficiently on concrete or other masonry surfaces.

Do angle grinders need a guard?

Wheel guards serve to deflect sparks and debris away from users, and to shield and protect them from abrasive cutting and grinding wheels, which can cause serious damage if (when) they fail and fly off. … OSHA regulations require the use of guarding on angle grinders.

What is a Type 41 wheel?

0.45 Thick Wheels – The best choice for efficient cutting. … Type 1 (41): A flat wheel that allows the operator to cut maximum depths into the material. Special aluminum oxide grain for longest lasting thin wheel. For Use On Metal – Ferrous and non-ferrous metals including iron, steel, welds, etc.

What is metal cut-off wheel?

Cut-off Wheels are made of abrasive grain bonded with an organic bond system and used for cutting, notching and grinding. They are used with both portable and stationary tools on numerous materials including aluminum, plastic, sheet metal, stainless steel and more.

What is Type 27 grinder?

The Type 27 grinding wheels are a very popular group of general purpose and specialized abrasive tools intended for rough grinding on various materials. … Most frequently they are operated at angles 20-35° and 90° when required by grinding requirements.

Can you grind with a cutoff wheel?

NO! Cutting-off wheels are for cutting on the periphery ONLY. … This reduces the strength of the wheel and can lead to breakage. Regardless of what type of grinding wheel you are using, grinding must only be performed on the surface of the wheel for which it is designed.

Can you cut stone with a cut-off wheel?

These masonry cut-off wheels work with your angle grinder to make fast, clean cuts in tile, brick or stone.

What cut steel for discs?

For standard everyday jobs on either stainless or mild steel using an angle grinder, choose a 1mm or 1.6mm thickness in your disc. For projects that involve thin metal such as sheet metal, choose a 1.0mm or 0.8mm thinner cutting disc.

How long does a diamond cutting disc last?

Diamond blades usually cost between $15 and $75. They can last between 12 and 120 hours of continuous use, depending on the quality of the blade and material they’re used to cut.

What are the types of grinding?

Surface grinding. …
Cylindrical grinding. …
Internal grinding. …
Centerless grinding. …
Contour grinding. …
Gear grinding. …
Thread grinding.

What is the most aggressive grinding wheel?

Diamond and CBN grinding wheels are the most aggressive grinding wheels on the market right now. Both provide dominant performance due to their high stock removal rates and ability to grind the most difficult materials.

What is resin bond wheel?

Resin bond Diamond & CBN grinding wheels are the most commonly used SuperAbrasive product currently consumed. Resin bond product, as the names describes, is a combination of resins and fillers pressed under heat and pressure that are easily dressed to straight, angle forms, , and special radius forms.

Can you dress a CBN grinding wheel?

Dressing/conditioning diamond and CBN Borazon grinding wheels, resin- and metal-bond only, is one of the most overlooked processes. And most dressing is done insufficiently. The simplest and basic dressing process is to use a white aluminum oxide dressing stick. … The same with CBN Borazon wheels.

What is used to dress a diamond grinding wheel?

More important, the profile of the grinding wheel wears so that the geometry and precision of the workpiece suffers. Haas uses a silicon carbide or corundum wheel as the dressing tool for its tapered diamond grinding wheels.

How do I know what grinding wheel I have?

The size of the grinding wheel is marked as dimensions in mm. For example, 230 x 3 x 22.2mm. This represents the wheel’s diameter x thickness x hole size.

Do grinding discs expire?

1 – Cutting and Grinding Discs Have Expiry Dates. This date is generally printed on the centre ring and is at a maximum three years from the manufacture of the disc. … The resin is used to bond the abrasive, and over time, this resin will absorb moisture, leading to deterioration in the cutting or grinding disc.

Can I cut concrete with a metal cutting disc?

Cutting discs are used as part of machines such as angle grinders to cut through hard, thick materials. These flat, thin and round discs look similar in shape to DVDs or compact discs and are able to cut through wood, concrete, stone and variety of metals, such as aluminium and steel.
