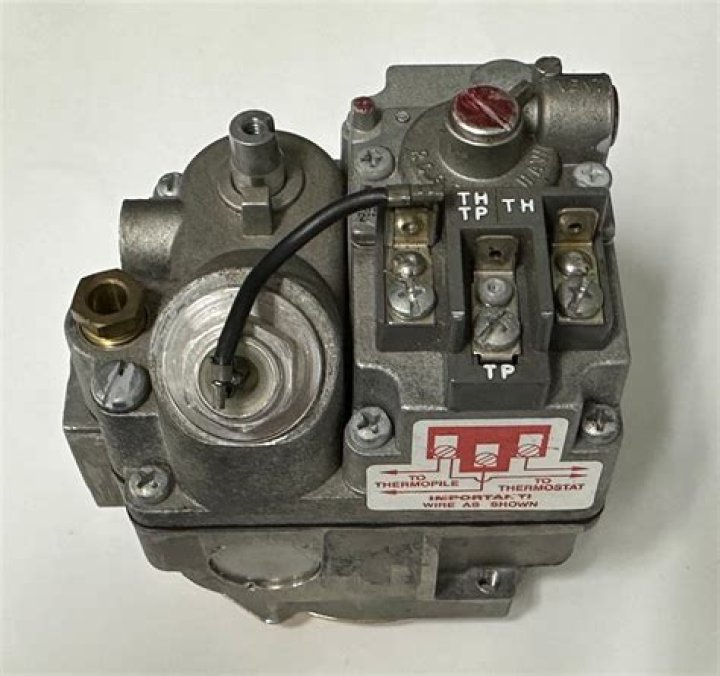

What is a unitrol valve

We’re going to discuss a Robertshaw uni-control valve. This is a temperature sensor that controls the temperature and thermostat, connected to a thermocouple that holds down the pilot.

What does a unitrol do?

This is a temperature sensor that controls the temperature and thermostat, connected to a thermocouple that holds down the pilot. … If temperature relief valves fail they can cause pressurising in the tank which can cause the tank to rupture and explosions to occur.

Should the water heater be on pilot or on?

You should set the water heater to “pilot”. If, however, your water heater is also the boiler for your central heating, then you’ll want to leave the heating running as normal so that your house doesn’t get damp as a result of cold and condensation.

Why does my water heater pilot keep going out?

The most common reason that your pilot light on your water heater keeps going out is a damaged, bent or dirty thermocouple.

Why is my electric hot water heater not working?

No Power or Gas If an electric water heater is not producing hot water, it could be a simple problem like a blown fuse or tripped circuit breaker. Additionally, some electric water heaters have a circuit-style safety switch located near or on the thermostat.

Should I run my RV water heater on electric or gas?

You can choose to leave your water heater on or switch it off between uses. However, it is important to note that leaving a propane heater running will empty your fuel tank pretty quickly. Additionally, leaving an electric heater on runs the risk of burning or frying an element should your tank somehow become empty.

How does a gas valve on a water heater work?

What Does A Water Heater Gas Control Valve Do? … The gas control valve allows the pilot to be ignited, and the lit pilot heats the thermocouple. Once the water heater thermocouple is heated, it sends a signal to the gas control valve which allows the burner to operate, heating the water in the tank.

What does it mean when your pilot light won't stay lit?

If your pilot light won’t stay alight, it might be the thermocouple. Sometimes dust buildup collects on the thermocouple and blocks the sensor. Try cleaning the thermocouple and then relighting the pilot light. If it continues to go out, the thermocouple might need to be replaced.

How do you fix a pilot light that keeps going out?

If it’s filthy shut your gas off so that the unit can cool down, then gently clean it by carefully rubbing it with fine grain sandpaper. When you’re done, simply turn the gas back on and light the pilot again. If dirt or grime was the issue, your light shouldn’t go out again!

Does gas leak if pilot light goes out?

If the pilot light goes out on a storage or instantaneous hot water heater, space heater or a ducted heater, you will not have a gas leak. This is because all modern gas appliances with pilot lights have a fail-safe device that closes off the gas to the appliance in the case when the pilot may go out.

Article first time published on

What is pilot mode in water heater?

On gas water heaters, the pilot light makes sure that there’s always flame available when the burner needs to kick in and heat water. If you run out of gas, install a new water heater or have to shut it down for some reason, lighting the pilot is the first step to turn on a water heater.

How long do you hold down the pilot light on a water heater?

All you have to do is hold the pilot knob down for 30 seconds and hold the ignition button at the same time. You do not need to use a lighter.

How many years does a water heater last?

It would be nice to know when the time is right to replace your water before it springs a leak and causes an inconvenience or worse yet, damage to your home. Typically a residential hot water heater lasts between 6 and 13 years. Beyond 12 years, you are on borrowed time!

What is the most common problem with water heaters?

Water leaks are perhaps the most common type of water heater issue you’ll face. Any water heater will start to leak eventually, as by nature water will eventually corrode your tank and create microscopic cracks or fractures.

Where is the fuse on an electric water heater?

The heater is usually fused in the main electrical panel but some electric water heaters may be fed from a separate fuse or circuit breaker box.

What is a millivolt gas valve?

1. Millivolt Gas Valve. … This type of valve makes use of a standing pilot that continuously burns to heat a device, either a thermocouple or thermopile, which then produces a small amount of electricity – less than a single volt, hence “milli”-volt.

What does TP mean on a gas valve?

TP = Temperature and Pressure. Water heater TP valve is a safety device that prevents water heater from exploding.

What does th stand for on gas valve?

Let’s look at what each of these terminals means: TH – The 24v hot leg from the thermostat on a call for heat (R+W closing) to the gas valve (TH terminal) to open the solenoid to allow gas to flow. This is assuming that the transformer is good and the high limit is closed.

How many millivolts are in a thermopile?

A healthy thermopile in an open circuit test will read between 650 to 850 millivolts or somewhere in between. If the open-circuit test reads below 400 millivolts, then the thermopile likely requires service or replacement.

What does millivolt ignition mean?

Millivolt ignition systems use a standing pilot light. This type of ignition system does not require any external power. … The pilot light can be turned off for extended periods of non-use and them re-ignited when needed. Millivolt are the most common ignition type on the market.

How many millivolts should a thermocouple produce?

Thermocouples designed for residential gas appliances, such as fireplaces, water heaters and furnaces, are made for 30 Millivolts. The reading should be between 25 and 30. Anything under or hovering around the 20 millivolts mark means the thermocouple needs to be replaced.

How do I know if my gas valve is bad?

If you notice strange noises from your furnace, airflow distribution is weak, or it starts to cycle between on and off settings continuously, you likely have problems that don’t involve the gas valve. A service visit to troubleshoot the problem is needed.

How do I know if my gas valve is bad on my water heater?

If the burner stays on, turn the gas supply off and replace the gas valve. If the pilot is lit, you have a tank of cold water, the thermostat turned up and the burner does not fire up, either the burner orifice is clogged or the water heater gas valve is bad.

What causes a gas valve to go bad?

The valve itself may have simply worn out or may be damaged due to basement seepage or submersion. Alternately, one of the electronic gas ignition components or a glitch in the safety circuit may be to blame. If your furnace has a standing pilot light, the thermocouple could be worn out.

Should I leave my RV water heater on all the time?

It’s safe to leave your RV water heater on all the time, just like at home. You’ll want to make sure that there is always water in the heater.

How much propane does a RV water heater use?

A camper or travel trailer with a 6-gallon Suburban RV water heater rated at 10,000 BTUs will burn through 20 pounds of propane in about 42 hours of continuous use.

Can you leave electric water heater on in camper?

Just like in your home, it is safe to leave your electric powered RV water heater on all the time whether stationary or on the road. There are other downsides such as cost and environmental impact of fuel consumption – but safety should not be a concern.

What is the DSI fault?

DSI fault means that the gas did not ignite during start up.

What does DSI mean on a RV water heater?

DSI means direct spark ignition. FLT means fault. That means it tried to ignite the burner on the water heater but failed. First thing is to check your propane supply.

How long does it take an RV water heater to heat?

RV water heaters typically take 20 minutes to heat up the water. It also depends on how many gallons of water is in it if there are 10 gallons it can take longer to heat up.
