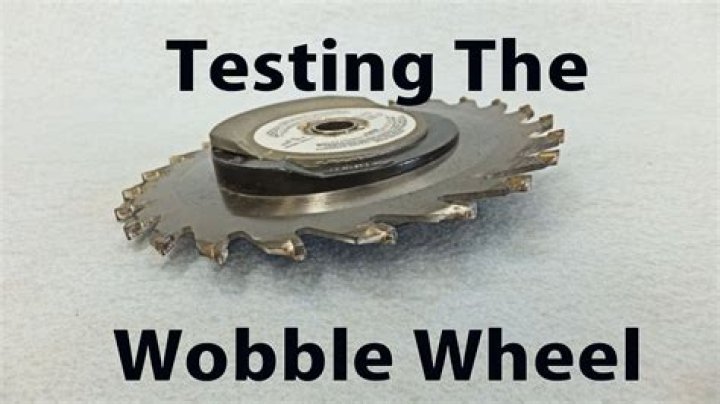

What is a wobble blade

Wobble Blade: when sitting in the table saw, rather than spinning true, it is offset and wobbles. As it spins the blade moves back and forth at a very high speed, cutting away the material being passed through.

What is a dado blade used for?

A dado blade is a circular saw blade that cuts grooves into the wood that are much wider than traditional saw blade cuts. They are used for interlocking applications. Interlocking joints are common in making bookshelves, drawers, door panels and cabinets.

Are wobble dado safe?

Frequently, wobble-style dado blades are considered because of a short arbor that will not safely handle a stacked dado blade set at its full width. That is a very real safety concern because the arbor nut must be fully seated on the shaft with at least one full thread protruding above it’s surface when tightened.

Why is it called a dado blade?

Stacked dado set consists of two circular saw blades fixed on either side of a set of removable chippers. As the dado set spins, the two outside blades cut the dado walls and the chippers remove the waste material in between and smooth the bottom of the dado.

Can I use a dado blade on a circular saw?

It will get stuck in the wood instead. This is why you should never put a dado blade on a circular saw since they have different sizes and shapes. … However, these blades will not work well if you try to push them from the bottom or through the side of a piece of wood.

What is a groove cut?

In joinery, a groove is a slot or trench cut into a member which runs parallel to the grain. A groove is thus differentiated from a dado, which runs across the grain. Grooves are used for a range of purposes in cabinet making and other woodworking fields.

Do I really need a dado blade?

9.1 Is a Dado Blade Necessary for Woodworking Projects? It is not necessary for woodworking projects, but it can make your job easier in many situations. If you need to cut joints used to join two wooden components together, a dado blade can do a reliable job.

Can you make a dado blade?

Instead of making a dado blade you can instead use a sled and then move the workpiece side to side on that to enlarge the dado. Make the outer cuts first and then you have a reference for where the blade should go; the middle cuts aren’t that important to get accurate.

What are the Middle blades on the dado called?

A stacked dado blade set uses the two outer blades, which look like standard tablesaw blades, in sequence with the middle blades (cutter blades) that have the same type of cutter on them getting oral blades would but have far less teeth to them.

Can I use an 8 inch blade on a 10 inch table saw?

As long as the diameter of the arbor hole on the stacked dado blade set matches the arbor diameter of your table saw or radial-arm saw—and the arbor is long enough for a dado blade—you can use an 8-inch dado blade on a 10-inch table saw.

Article first time published on

Can you put a dado blade on a Mitre saw?

Not everyone knows this, but you can make dadoes on your miter saw. Yep, on your miter saw. No need to put a dado head on your table saw, or set up a router bit in a hand-held router or on a router table. If your miter saw has the right flip down stop, you can use it to make dadoes.

Can you use a dado blade on a radial arm saw?

Exact same physical phenomenon. So, no, don’t try dado cuts on a radial arm saw. … Because the blade rotates with the direction of of the pull cut instead of against it, there is the potential danger of the blade climbing up over the workpiece toward the operator if you pull the saw carriage through the cut too quickly.

How wide do dado blades cut?

The overall range of widths that a dado blade can be set up to cut is pretty standard – 1/4 ” to 13/16 ” (sometimes 7/8 “). So this isn’t a factor when choosing a blade. The maximum depth of cut, determined by the diameter of the blade, is something to consider. Many dado set models come in both 6″ and 8″ diameters.

What is a housing dado?

A dado (US and Canada), housing (UK) or trench (Europe) is a slot or trench cut into the surface of a piece of machinable material, usually wood. When viewed in cross-section, a dado has three sides.

How do you cut a box joint without a dado blade?

Step 1: Make the Base and Guard. …
Step 2: Fit the Fence. …
Step 3: Making the Slider. …
Step 4: Calibrating the Slider. …
Step 5: Cut the First Side. …
Step 6: Cut the Second Side. …
Step 7: Enjoy Your Jig! …
2 Comments.

What is a dado in woodworking?

Dado cutting is the process of adding a groove to a board. In woodworking, dado cuts are commonly used to provide a slot to hold drawer bottoms or door panels. However, a dado groove can serve any function where a slot is needed in a board. … The blades are added together to make the required width of the dado groove.

What is the space between two protruding teeth on a saw blade called?

Gullet (handsaw) The space between a saw’s teeth, where the saw dust is carried out. It is an equilateral triangle, just like the file that shapes the teeth.

How do you groove wood without a router?

Table Saw. If you have a table saw available, you can use one of them to cut a proper groove. You will need a dado blade. …
Dremel. You can also use a Dremel tool to cut a groove properly. …
Rabbeting Plane.

What is the purpose of groove?

In manufacturing or mechanical engineering a groove is a long and narrow indentation built into a material, generally for the purpose of allowing another material or part to move within the groove and be guided by it. Examples include: A canal cut in a hard material, usually metal.

What is a rabbet and dado joint?

A rabbet is like a dado that’s missing a side. It’s essentially a notch cut into the edge of a board or piece of plywood. You can cut dadoes, grooves and rabbets in many different ways.

Who invented the dado blade?

The Rockler Miter Fold Dado Set combines a complete 8″ dado set with a special profiled blade designed by inventor and popular YouTube woodworker Andrew Klein.

Can you use smaller blades on a table saw?

The cut quality that can be achieved with the smaller blade, even compared to some of the best 10” saw blades on the market, is noteworthy. The reason for this is simple physics; the smaller diameter blade means less runout, and less runout means a smoother cut.

What is the arbor on a table saw?

The arbor is the shaft that holds the blade. On all American stationary saws that use a 10″ blade, the arbor is 5/8″ in diameter where the blade is attached.

Can you use a 7 inch blade on a 10 inch saw?

Cutting Depth If you’re using a 7-inch blade in a 7 ¼ inch saw, or a 9-inch blade in a 10 inch saw, then the effect will be minimal. However, toss a 7 ¼ inch blade on a 10-inch saw and you might not be able to cut through your workpiece.

What size blade does a table saw use?

What size blade does your saw require? Most table saws use 10″ blades, but some take smaller blades, and some take larger. Though not generally recommended, you can use a smaller blade than your saw is designed to handle (with the obvious loss in depth of cut). Never try to use a larger blade.

What is depth of cut on a miter saw?

Saws start to differ when you look at their blade diameter—commonly 10 inches or 12 inches. The bigger the blade, the deeper and wider its maximum cut. Typically, a 10-inch miter saw will cut a 2 x 6 at 90 degrees and a 2 x 4 at 45 degrees; a 12-inch miter saw will cut a 2 x 8 at 90 degrees and a 2 x 6 at 45 degrees.
