What is acceptable voltage drop

How much voltage drop is acceptable? A footnote (NEC 210-19 FPN No. 4) in the National Electrical Code states that a voltage drop of 5% at the furthest receptacle in a branch wiring circuit is acceptable for normal efficiency. … It also means that the circuit has a resistance that does not exceed 0.4 ohms.

What is acceptable voltage range?

The nominal voltage in the United States is 120 volts, but the National Electrical Code [NEC 210.19 (A)] specifies an acceptable drop of 5% to fartherest outlet, which is 114 volts. … This puts the acceptable voltage range of a nominal 120-volt receptacle at between 114 and 126 volts.

What is the voltage drop on a 120 volt circuit?

In a 120/208 volt system, the allowed voltage drop for a single phase 120 volt branch circuit load is (120 *. 03) = 3.6 volts.

What is the permissible voltage drop of 240v AC supply?

If the supply is single-phase at the usual level of 240 V, this means a maximum volt drop of 4% of 240 V which is 9.6 V, giving (in simple terms) a load voltage as low as 230.4 V. For a 415 V three-phase system, allowable volt drop will be 16.6 V with a line load voltage as low as 398.4 V.

What is a good rating for a voltage drop test?

With a good connection, there should be no drop, or at least very little (under 0.4 volts usually, and ideally under 0.1 volts). If the drop is more than a few tenths, then there’s too much resistance, the connection will have to be cleaned or repaired.

What is considered low voltage in a home?

Home Voltage As rated by the IEC, home electrical wiring is considered low voltage. However, housing voltage, which is from 100 to 250 VAC, is considered high voltage for home owners. Consequently, 5 to 24 volt devices are considered low voltage in homes.

What is acceptable voltage for 220v?

The normal supply voltage is 240 volt( 415/1.732). Supply voltage should be within +/- 6% i.e. between 225.6 to 254.4 volt. So 245–255 volt is quite safe.

What is the maximum voltage drop in a domestic property?

Maximum permitted levels of Voltage drop can be found in BS7671 Table 4Ab (i) 3% for lighting (6.9V) or 5% for other uses (11.5V).

Is 2% voltage drop acceptable?

Contrary to common belief, the NEC generally doesn’t require you to size conductors to accommodate voltage drop. … The NEC recommends that the maximum combined voltage drop for both the feeder and branch circuit shouldn’t exceed 5%, and the maximum on the feeder or branch circuit shouldn’t exceed 3% (Fig. 1).

Which of the following is the permissible voltage drop for domestic appliance?

The permissible voltage drop in a lighting circuit is 2% of the supply voltage plus one volt. The maximum permissible voltage drop in a power industrial circuit should not be more than 5% of the declared supply voltage.

Article first time published on

What is voltage drop for DC current?

Branch circuit only3%Branch circuit and feeder combined5%

What is the maximum allowable voltage drop for lighting and power loads?

Allowable Voltage Drops: The National Electrical Code recommends the voltage drop should not be exceeded more than 3 % from the source to utility. Example if you have a circuit voltage of 240 AC and you have a one light at 100 meter long.

How far can you run 12v DC?

24 AWG12 AWGDC 300mA72 feet1,169 feetDC 400mA54 feet877 feetDC 500mA43 feet701 feetDC 750mA28 feet467 feet

What is the normal voltage drop when starting a car?

You can test for proper cranking voltage with a voltmeter while—you guessed it—cranking the engine. The several hundred amperes of current the starter motor draws should pull the battery voltage down to a normal 9 to 10 volts.

How do you do a millivolt drop test?

The continuity tests described in this chapter are usually performed during troubleshooting and/or in service checks. The millivolt drop test and micro-ohmmeter tests should be performed during each maintenance interval.

What is the voltage drop specification for ground?

The voltage drop between the power and ground side of a particular circuit will generally be 0.1 volts or less. Expect a voltage drop of 0.2 volts or less from one end of a particular copper wire or cable to the other. A switch will usually create a voltage drop of 0.3 volts or less.

What is normal voltage for a house?

The most common electrical outlet in any home is a 110 volt. Sometimes you may hear 110 volt plugs referred to as 120 volt. Do not be confused by this; think of them as one and the same.

What is the normal voltage in Philippines?

The Philippines operates on a 220V supply voltage and 60Hz.

What's the normal voltage in a house?

These days, almost every residential customer can get 120 volts from their wall outlet. However, power is typically delivered into your home at a nominal voltage of 240 volts.

Is 110 a low voltage?

These ratings indicate the upper limit of voltage for a device or load to operate properly under normal conditions. Lower voltage ratings of 110 , 115, and 220 volts are for loads (appliances, motors, etc). These ratings indicate the lower limit of voltage for proper operation under normal conditions.

Is cat5 considered low voltage?

1- Almost certainly data/ethernet/cat5/cat6 cable falls under the “low voltage” umbrella. If a license is required to run coax or alarm cable in a building, it is required for Ethernet cable.

Is 12V considered low voltage?

Low voltage is defined as 50 volts (V) or less. Common low voltages are 12V, 24V, and 48V. Low voltage is normally used for doorbells, garage door opener controls, heating and cooling thermostats, alarm system sensors and controls, outdoor ground lighting, household and automobile batteries.

When should I be concerned about voltage drop?

Voltage drop becomes important when the length of a run of wire or cable becomes very long. Usually this is not a problem in circuits within a house, but may become an issue when running wire to an outbuilding, well pump, etc.

What is the voltage drop of two 12 AWG conductors?

What is the voltage drop of two 12 AWG THHN conductors that supply a 16A, 120V load located 100 ft from the power supply (see Figure 8–12)? The math is straightforward: VD = I x R. I = 16A; R = 2V per 1,000 ft, Chapter 9, Table 9: (2V/1,000 ft) x 200 ft = 0.4V.

Is voltage drop a code?

It is important to note that the voltage drop requirement for Sensitive Electronic Equipment in NEC 647.4(D) is a code-enforceable requirement, not an Informational Note.

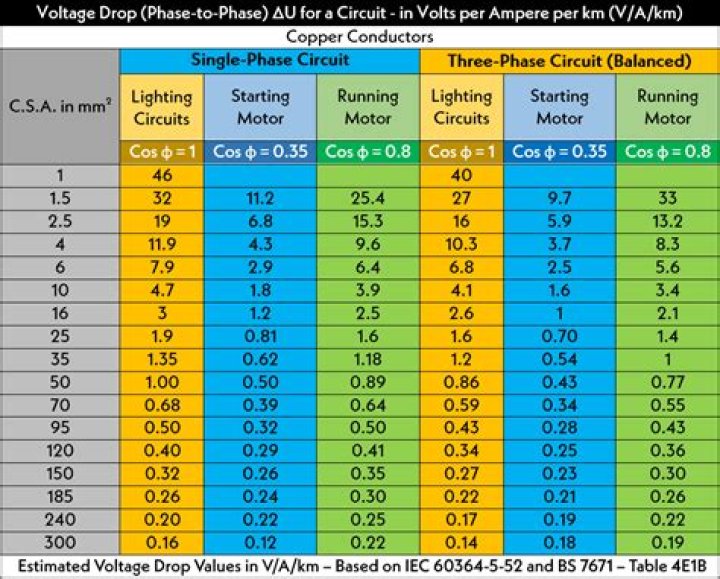

How do you find the actual voltage drop?

1. Multiply current in amperes by the length of the circuit in feet to get ampere-feet. Circuit length is the distance from the point of origin to the load end of the circuit.
2. Divide by 100.
3. Multiply by proper voltage drop value in tables. Result is voltage drop.

How do you check voltage drop?

Voltage drop may be determined by measurement of the combined live conductor resistance and calculation using this value and the full load current of the equipment with compensation for conductor temperature difference for measured and operating conductor values.

What is the maximum voltage drop across a contactor?

The maximum drop across the contacts should not be more than 3%. The maximum voltage drop should be no more than about 6 V for a 208-V system. A 20 V drop tells you the contactor needs to be replaced.

Is voltage drop the same for AC and DC?

It’s actually the opposite. DC has a lower loss over a long distance. The reason for that is that AC has inductive losses over the distance, while DC does not. AC is used for high power transmission over moderate distances because it’s really, really easy to convert the voltage from high to low using transformers.

How far can I run 4 0 aluminum?

Result: 1 conductors per phase utilizing a #400 Aluminum conductor will limit the voltage drop to 2.94% or less when supplying 100.0 amps for 250 feet on a 120 volt system.

How far can 24vdc travel?

24 AWG20 AWG10 VA (417mA)103 feet286 feet20 VA (833mA)52 feet142 feet30 VA (1,250mA)34 feet95 feet40 VA (1,667mA)26 feet71 feet
