What is ASTM c270

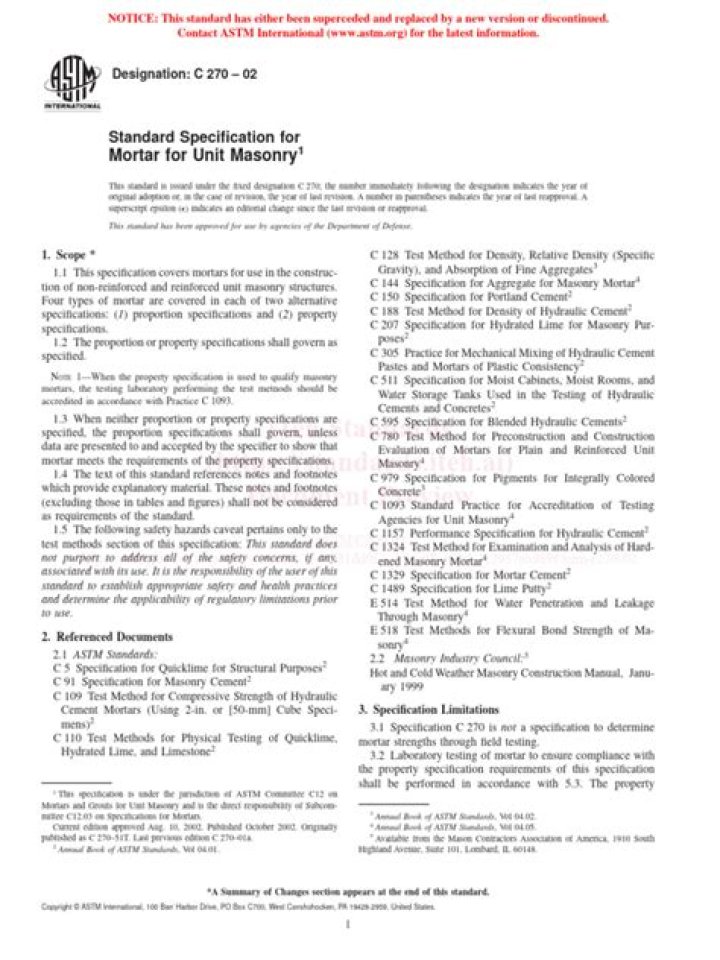

The ASTM Standard C270 (Mortar for Unit Masonry) provides the basis for specifying cement-lime mortars. This specification provides the basis for five different mortar types (Type K is listed in section X3 of the appendix) depending on the strength of mortar needed for an application.

What is Type O mortar?

Type O is a lime rich mortar and is also referred to as “pointing” mortar. It is used in above grade, non-load bearing situations in both interior and exterior environments. To get 1 cuyd of O mortar, you need 27 cubic feet of the components in a 1 to 2 to 9 proportion. Portland cement.

What is ASTM c780?

ASTM C 780 is a field test method which defines standard procedures for sampling and testing mortars before and during their use in construction. Mortars can be tested to determine composition or to obtain their plastic and harden properties.

What is ASTM C1314?

ASTM C1314 – 12 Standard Test Method for Compressive Strength of Masonry Prisms.

What is ASTM C109?

ASTM C109 is a compression test determine the compressive strength of hydraulic cement and other mortars. The results of the ASTM C109 compression test may be used to determine compliance with specifications. Further, the ASTM C109 test method is referenced by numerous other specifications and test methods.

How do you make Type S mortar?

Pre-mixed mortar is a combination of Portland Cement, Hydrated Lime, and Masonry Sand already blended together in the proper proportions to make a Type S mortar. All that is needed is to add sufficient water to achieve the desired consistency, usually about 5 to 6 quarts for an 80# bag.

Is Type S mortar stronger than type N?

Type S Mortar Like Type N mortar, type S is medium-strength (1,800 psi,) but it’s stronger than Type N and can be used for below-grade exterior walls and outdoor patios. … Type S mortar is made with two parts Portland cement, one part hydrated lime, and nine parts sand.

What is ASTM C31?

ASTM C31. This practice provides standardized requirements for making, curing, protecting, and transporting concrete test specimens under field conditions.

What is ASTM C140?

Description / Abstract: ASTM C140, 2013 Edition, March 15, 2013 – Standard Test Methods for Sampling and Testing Concrete Masonry Units and Related Units. These test methods provide various testing procedures commonly used for evaluating characteristics of concrete masonry units and related concrete units.

How do you test mortar strength?

Compressive strength of mortar is determined by using 2 inch or 50mm cubes as per ASTM C109 / C109M – Standard Test Method for Compressive Strength of Hydraulic Cement Mortars. Mortar is a combination of cement, sand mixed with water.

Article first time published on

How can you tell the quality of a mortar?

The best way to monitor the mortar is to watch it being mixed. Obviously, this is not always convenient. An alternate approach would be to determine the mortar aggregate ratio in accordance with A4 of ASTM C 780. This test determines the ratio of cementitious components to sand in the mortar mix.

What is ASTM c144?

ASTM C-144 is the ICPI standard gradation specification for joint sand. “This specification covers aggregate for use in masonry mortar. Aggregate for use in masonry mortar shall consist of natural sand or manufactured sand.

What is ASTM C91?

ASTM C91, the Standard Specification for Masonry Cement, defines requirements for three classifications of masonry cement: Type N – For use in preparation of ASTM C270 Type N mortar. Type S – For use in preparation of ASTM C270 Type S mortar without further addition of cements or hydrated lime.

What is ASTM C150?

The ASTM Standard Specification for Portland Cement (ASTM C150) provides for five types as follows: … Sometimes called moderate-heat cement, it is intermediate between Type I and the low-heat Type IV cement.

How thick can type S mortar be?

at 1/8 inch (3.2 mm) thick. Remember to allow for waste and spillage. 40 lb.

How long does it take Type S mortar to dry?

MORTAR CURE TIME Mortar typically will cure to 60% of its final compressive strength within the first 24 hours. It will then take about 28 days to reach its final cure strength.

How do you mix quikrete Type S mortar?

Color: gray Typical Mix Designs: For masonry mortars: Mix 1 part QUIKRETE® Masonry Cement with 2.25 to 3 parts masonry sand in compliance with ASTM C 270. Yield: Yield will vary with design. For example one bag of masonry cement mixed with 240 pounds (109 kg) of QUIKRETE® Mason’s Sand will yield approximately 2.75 cu.

What is the PSI of type S mortar?

Type S mortar is a medium strength mortar achieving a compressive strength of approximately 1800 PSI.

What is Miracle Morta Lok?

Description. MIRACLE MORTA-LOK® — preferred by professionals, a Type “S” mason’s hydrated lime with high elasticity, durability, water resistance, efflorescence control and workability.

What is a prism test for masonry?

A masonry prism is an assemblage of masonry units and mortar that is constructed to serve as a test specimen for determining properties of masonry assemblages. Prisms are constructed for compressive strength testing in accordance with ASTM A 447 Standard Test Methods for Compressive Strength of Masonry Prisms.

What does ASTM stand for?

Home » Resources » Glossary » American Society for Testing and Materials (ASTM) Currently known as ASTM International, “American Society for Testing and Materials”, ASTM is a developer of international voluntary consensus standards.

What ASTM standard is used to test a concrete masonry wall?

Standard Test Methods for Sampling and Testing Concrete Masonry Units and Related Units, ASTM C140-11b.

What is tamping rod?

Tamping rods are dimensionally accurate rods used to tamp fresh concrete into concrete cylinder molds and grout sample boxes to eliminate voids and excess air.

How many times should I Rod concrete?

Rod each layer 25 times throughout the layer depth distributing the roddings uniformly over the cross section. For subsequent layers, penetrate the previous layers about 1 inch. For 6 by 12 inch molds use a 5/8 inch diameter tamping rod and a 3/8 inch diameter rod for 4 by 8 inch molds.

How can you tell if concrete is cured?

Conclusion. The only way to know if a concrete slab is dry is to test it. The most accurate test for doing this is the in situ relative humidity test. Data logging throughout the drying process allows you to detect drying problems early, correct them, and will aid you to determine what is responsible for slow drying.

Is code 269 a book?

This standard covers the manufacture and chemical and physical requirements of 33 grade ordinary Portland cement. The standards given in Annex A contain provisions which, through reference in this text, constitute provisions of this standard.

Is mortar a strength code?

1.1 This standard IS 4031 ( Part 6 ) covers the procedure of finding out compressive strength of cement: The strength of cement is determined by compressive strength tests, on 70.6 mm mortar cubes, made with specified cement , sand & water mixed & compacted manually with a compacting bar as well as with vibrating …

What is the strength of 1/6 cement mortar?

The value of compressive strength of mortar is satisfied the criteria of IS 2250-1981 i.e. minimum compressive strength for 1:3 and 1:6 mortar cube at age of 28 days is 7.5 MPa and 3 MPa respectively.

Is cement code a mortar test?

The procedure for conducting chemical tests of hydraulic cement is covered in IS: 4032-1985*. (/irst revision). 2.1 The samples of the cement shall be taken in accordance with the requirements of IS: 3535- 1986* and the relevant standard specification for the type of cement being tested.

How do you test for weak mortar?

Testing is generally carried out by a visual assessment and lightly rubbing the mortar with a traditional flat head screwdriver in locations with visible erosion and undamaged areas. Laboratory mortar analysis is only considered in certain situations.

What is mortar cube test?

Compressive strength of cement is determined by cube test on cement mortar cubes compacted by means of a standard vibration hydraulic machine. … Standard vibration for making cube is 12000 +- 400 vibration per minute and it will vibrate for 2 minute.
