What is Cisco Nexus FabricPath

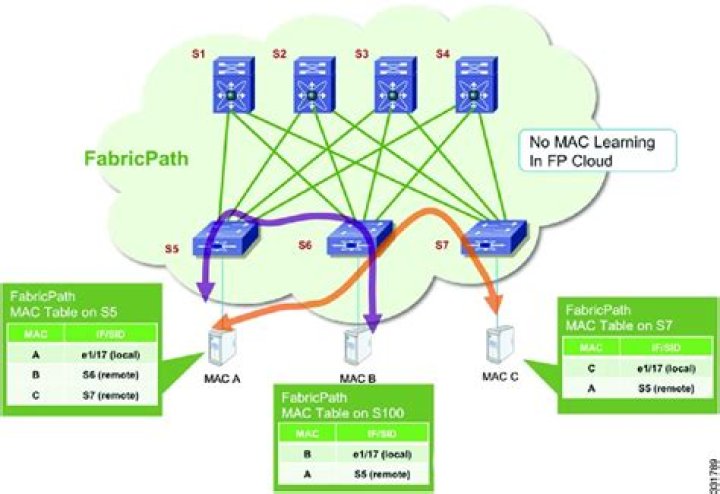

Cisco® FabricPath is an innovation in Cisco NX-OS Software that brings the stability and scalability of routing to Layer 2. … Cisco FabricPath introduces an entirely new Layer 2 data plane by encapsulating the frames entering the fabric with a header that consists of routable source and destination addresses.

What is Nexus FabricPath?

Fabricpath is a Cisco proprietary protocol, found on some of the Nexus switch range, such as the N5K and N7K. Fabricpath is not supported on the N3K or N9K series. These switches support VxLAN based fabric. This is an alternate way to put non-blocking uplinks in place.

What is Cisco Nexus used for?

The Nexus 3000 is a foundational component of Cisco’s Open Network Environment (ONE) designed to help networks become more open, programmable and application-aware. It offers flexibility, high density, and performance for top-of-rack deployments, supporting mobility and tenant isolation with VXLAN.

What is the use of FabricPath?

Cisco FabricPath is about routing your data center traffic and helps doing load-sharing. It combines both Layer 2 and Layer 3 functions, thus giving simplicity of Layer 2 and also the intelligence of Layer 3. On the other hand, STP is only plug and play and does not have any Layer 3 intelligence.

What is swid SSID lid?

The numbers correspond to the SWID – Switch ID, SSID – Sub Switch ID and LID – Local ID. The SWID is a unique value assigned per switch what ISIS uses to route traffic within the fabric. The SSID is used when VPC+ is configured and is locally significant to each switch.

What is the difference between port channel and vPC?

vPC (Virtual Port-Channel), also known as multichassis EtherChannel (MEC) is a feature on the Cisco Nexus switches that provides the ability to configure a Port-Channel across multiple switches (i.e. vPC peers). vPC is similar to Virtual Switch System (VSS) on the Catalyst 6500s.

What is the difference between Cisco Nexus and Catalyst?

The main difference between the Cisco Catalyst switch and the Cisco Nexus switch is that Cisco Catalyst Switches use IOS as the operating system, whereas Nexus switch uses NX-OS. Catalyst switches support both LACP and PAGP for creating Ether channel, whereas Nexus Switches will only support LACP.

What is spine leaf architecture?

A spine-leaf architecture is data center network topology that consists of two switching layers—a spine and leaf. The leaf layer consists of access switches that aggregate traffic from servers and connect directly into the spine or network core. Spine switches interconnect all leaf switches in a full-mesh topology.

What is the function of STP in a scalable network?

STP is an important component in a scalable network because it allows redundant physical connections between Layer 2 devices to be implemented without creating Layer 2 loops. STP prevents Layer 2 loops from forming by disabling interfaces on Layer 2 devices when they would create a loop.

What is Cisco OTV?

Overlay transport virtualization (OTV) is a Cisco proprietary protocol for relaying layer 2 communications between layer 3 computer networks.

Article first time published on

What is Nexus dashboard?

The NEXUS Dashboard offers RBAC controls and offers an admin view where sites are onboarded and configured and day 2 applications are added and configured. An operator view where the operator can go into the day 2 applications and monitor the network using the admin’s sites and applications.

What is the Cisco Nexus kickstart image?

Now, related to NX-OS, the kickstart image is the Kernel, and the system image is the set of tools and programs that run on top of that kernel. The NX-OS is based on a Linux kernel. So if you see both the start up of a Nexus or a GNU/Linux System, you will see that they are very similar.

What is meant by Catalyst switch?

Catalyst switches offer advanced customization and manageability. The switches can be configured using a serial console, telnet or Secure Shell. Simple Network Management Protocol (SNMP) allows monitoring of many states, and measurement of traffic flows. Many devices can also run an HTTP server.

Is Nexus a router or switch?

The Cisco Nexus series switches are modular and fixed port network switches designed for the data center. Cisco Systems introduced the Nexus Series of switches on January 28, 2008.

What is the difference between switch and Catalyst switch?

Amongst the array of switches are the Cisco Nexus and Catalyst switches that are the most popular. While Nexus switches are a flexible and feature-rich solution that offers ease of integration and usage, the Catalyst switches allow better control over the throughput traffic.

Does Nexus support PoE?

Nexus 9500 SwitchesCatalyst 9500 SwitchesNative wireless support–NoPowerIntegrated PoEyesNoPoE/PoE+/UPOEN+1No

What is vPC in Nexus and what are its benefits?

Cisco virtual Port Channel (vPC) is a virtualization technology, launched in 2009, which allows links that are physically connected to two different Cisco Nexus Series devices to appear as a single port channel to a third endpoint. …

What happens if vPC peer link fails?

vPC peer-link failure If peer-link fails, then all the member ports from vPC secondary node will be suspended. Here important to note, keep-alive is active in this scenario, which allowing nodes to exchange heartbeat.

What is the result of a Layer 2 broadcast storm?

Spanning Tree Concepts A broadcast storm occurs when there are so many broadcast frames caught in a Layer 2 loop that all available bandwidth is consumed. Consequently, no bandwidth is available for legitimate traffic and the network becomes unavailable for data communication.

Which switch will be the root bridge?

The root bridge is selected by manually configuring its bridge priority to a low value. 32768 is the default value out of a range from 0 to 61440. If all switches in a single spanning tree have the same bridge priority, the switch with the lowest MAC address will become the root bridge.

What method can be used to enable an OSPF router to advertise a default route to neighboring OSPF routers?

What method can be used to enable an OSPF router to advertise a default route to neighboring OSPF routers? Use a static route pointing to the ISP and redistribute it.

What is another name for spine leaf architecture?

A Spine-Leaf or “fat tree” architecture features multiple connections between interconnection switches (spine switches) and access switches (leaf switches) to support high-performance computer clustering.

What is Cisco spine?

In Cisco Spine and Leaf Architecture, every leaf switch is connected to each of the spine switches in a full-mesh topology. The leaf layer includes access switches that connect to devices such as servers while the spine layer is the backbone of the network and is responsible for interconnecting all leaf switches.

What is VXLAN used for?

VXLAN is an encapsulation protocol that provides data center connectivity using tunneling to stretch Layer 2 connections over an underlying Layer 3 network. In data centers, VXLAN is the most commonly used protocol to create overlay networks that sit on top of the physical network, enabling the use of virtual networks.

What is OTV in Nexus switch?

Recently, there were discussions going around about Cisco’s new datacenter technology – Overlay Transport Virtualization (OTV), implemented in Nexus 7k data-center switches (limited demo deployments only). … It is said that OTV is a better solution compared to well-known VPLS, or any other Layer 2 VPN technology.

Is OTV supported on Nexus 9000?

PARAMETERSNEXUS 7KNEXUS 9KOTV and LISPSupportedNot Supported

What is the difference between OTV and Vxlan?

Well VXLAN is extending the VLANs or layer 2 traffic within the datacenter while OTV is the extension of the layer 2 Traffic across the datacenter. … Cisco is using the concept of VXLAN in ACI infrastructure for the datacenter environment and also used in the SDA infrastructure in Campus or Enterprise networks.

What are the key Cisco differentiators of the Nexus dashboard?

The Nexus Dashboard incorporates Nexus Insights, Network Assurance, and Multi-Site Orchestrator, as well as seamless access to network controllers and third-party tools and cloud-based services.

What is Cisco Tetration?

Cisco Tetration offers holistic workload protection for multicloud data centers by enabling a zero-trust model using segmentation. This approach allows you to identify security incidents faster, contain lateral movement, and reduce your attack surface.

What is Cisco Nexus Data Broker?

About Cisco Nexus Data Broker Cisco Nexus Data Broker with Cisco Nexus Switches provides a software-defined, programmable solution to aggregate copies of network traffic using Switched Port Analyzer (SPAN) or network Test Access Point (TAP) for monitoring and visibility.

What is difference between kickstart image and system image?

The Kickstart image is around 31Mb-70Mb in size depending on the NX-OS version and contains the Linux kernel, basic drivers and initial file system. The System image is much larger, around 400Mb-650Mb in size depending on the NX-OS version and contains the system software and infrastructure code.
