What is cooling tower cell

A cooling tower is a specialized heat exchanger in which air and water are brought into direct contact with each other in order to reduce the water’s temperature. As this occurs, a small volume of water is evaporated, reducing the temperature of the water being circulated through the tower.

What is cooling tower and how it works?

Cooling towers are essentially large boxes designed to maximize evaporation of water. To do this, they contain material, typically PVC plastic sheets, that create large surface areas for water evaporation to occur. This material is what fills the inside of the cooling tower and is called “Cooling Tower Fill”.

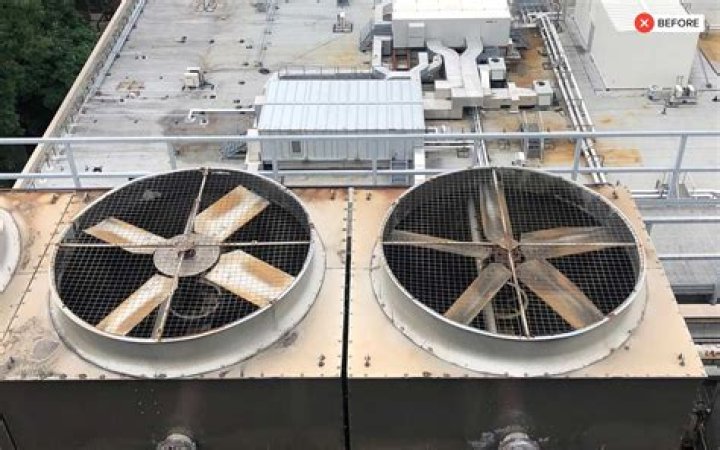

What is a 2 cell cooling tower?

A broken AC cooling tower fan which supported the heating, ventilation, and air conditioning systems inside the hospital. …

How many cells are in a cooling tower?

Cooling Tower Number of CellsBaseline RulesOne cell per tower and one tower per chiller.

What are different types of cooling towers?

There are three main types of cooling towers that are defined by how water or air pass through them. These types include crossflow, counterflow, and hyperbolic. There are also two varieties classified solely on airflow, known as induced draft and passive draft cooling towers.

Is cooling tower a heat exchanger?

A cooling tower is a specialized heat exchanger in which air and water are brought into direct contact with each other in order to reduce the water’s temperature. As this occurs, a small volume of water is evaporated, reducing the temperature of the water being circulated through the tower.

How does a cooling tower operate?

Cooling tower systems work by using water to extract waste heat from a system and ejecting it into the atmosphere primarily through evaporation. … The water is then distributed over the top of the cooling tower where air travels past the warm water causing a portion of the water to evaporate.

Which type of water and air flow is used in cooling tower?

In a cooling tower, hot water is distributed above fill media which flows down and is cooled due to evaporation with the intermixing air. Air draft is achieved with use of fans. Thus some power is consumed in pumping the water to a height above the fill and also by fans creating the draft.

What is dry cooling tower?

Dry cooling towers conduct heat transfer through air-cooled heat exchangers that separate the working fluid from the cooling air. Because there is no direct contact between the working fluid and the ambient air, there is no water loss in this system. Dry cooling towers have two basic types: direct and indirect systems.

Are cooling towers bad for the environment?

Cooling towers interact with the environment through the discharge of blowdown to a lake or stream and through the emission of moisture and warmed air to the atmosphere. … Blowdown parameters used in this evaluation are temperature, pH, flow rate, total dissolved solids, biocide, and inhibitor concentrations.

Article first time published on

What buildings use cooling towers?

Heating, ventilation and air conditioning (HVAC) In areas with a hot climate, large office buildings, hospitals, and schools typically use one or more cooling towers as part of their air conditioning systems. Generally, industrial cooling towers are much larger than HVAC towers.

Why cooling towers are used?

What are cooling towers used for? Cooling towers are primarily used for heating, ventilation, and air conditioning (HVAC) and industrial purposes. Cooling towers provide a cost-effective and energy efficient operation of systems in need of cooling.

What is the difference between cooling tower and condenser?

Condensers turn a substance from gas to liquid by way of cooling it (with either air or water that would come from a cooling tower). … The cooling tower water of a so-called open loop cooling tower normally circulates over a condenser or heat exchanger to transport excess heat from the processes.

What is TDS cooling tower?

Cooling towers are used within some businesses for process water cooling or as part of an air-conditioning system. … ‘Bleed’, ‘blow-down’ or ‘dump’ cycles – as water is evaporated, concentrations of total dissolved solids (TDS) increase which is detrimental to the efficient operation of the unit.

What is the most common type of cooling tower?

Mechanicaldraft cooling towers are the most widely used in buildings and rely on power-driven fans to draw or force the air through the tower. They are normally located outside the building. The two most common types of mechanical draft towers to the HVAC industry are induced draft and forced draft.

Where are cooling towers located?

Cooling towers are usually located on rooftops or other outdoor sites. Because they are frequently out of sight, they are often neglected by operation-and-maintenance technicians, resulting in lower cooling-system efficiency.

How do you maintain a cooling tower?

1. Remove Scale Deposits. Because cooling towers work using evaporation, there is a build-up of scale deposits, which has to be removed regularly. …
2. Keep Air Flow Running. …
3. Keep the Tubes Clean. …
4. Inspect Your Water Pump. …
5. Treat Your Water.

How is cooling tower capacity calculated?

This should be expressed in Fahrenheit and is denoted as dt in the formula. Multiply 500 times the water flow rate, times the temperature difference, divided by 12,000 or 500 x q x dt/12,000. The result is the tons of capacity of the cooling tower.

What is the difference between heat exchanger and cooler?

The major difference between a heat exchanger and a chiller is in the design. While chiller systems possess refrigeration units that cool their circulating chiller fluid, a heat exchanger lacks a refrigeration unit and achieves temperature regulation by direct fluid heat transfer.

What is cooling tower Slideshare?

Cooling towers are usually specified to cool a certain flow rate from one temperature to another temperature at a certain wet bulb temperature. For example, the cooling tower might be specified to cool 4540 m3/hr from 48.9oC to 32.2oC at 26.7oC wet bulb temperature.

Is heat exchanger and cooler same?

Ah, a heat exchanger is just that, a device used to transfer heat from one fluid to another. A radiator and an oil cooler are two types of heat exchangers, and the bricks you refer to are called charge air coolers, also a type of heat exchanger.

What is hybrid cooling tower?

The hybrid cooling towers represent a suitable combination of wet and dry cooling with a favourable impact on the environment, meeting demanding environmental requirements. The hybrid cooling towers reduce the consumption of water and provide total heat rate as required by the customer. …

What is the difference between chiller and cooler?

As nouns the difference between chiller and cooler is that chiller is something that chills, especially a machine that produces cold air, either for air conditioning, to prepare chilled foods etc while cooler is (countable) anything which cools.

What is a chiller used for?

The purpose of a chiller is to utilize the power of outside air and water to maintain the target temperature at a constant level. Therefore, it can be used to cool or heat. Because it is necessary to keep the temperature constant at all times, it is not limited to cooling.

What is LG ratio in cooling tower?

The L/G ratio of a cooling tower is the ratio between the water and the air mass flow rates. Cooling towers have certain design values, but seasonal variations require adjustment and tuning of water and air flow rates to get the best cooling tower effectiveness.

What is louvers in cooling tower?

AIR INLET LOUVRES FOR COOLING TOWERS Our cellular inlet louvres improve the air flow into the cooling tower. They not only hold back unwanted elements (e.g. leaves) but also prevent water splash-out which can cause icing and loss of expensive water and treatment chemicals.

What is the efficiency of cooling tower?

In practice, the cooling tower efficiency will be in between 70 to 75%.

How long do cooling towers last?

Cooling Tower Replacement can be a costly proposition and the average life expectancy of a commercial cooling tower, according to most manufacturers, is 15 – 20 years*, before they need to be rebuilt or replaced. Many cooling towers were installed in 1980’s and are 30 years old now.

Do cooling towers cause global warming?

It is not smoke, it is water vapor, and no, on balance it does not contribute to global warming, since a fossil fuel plant’s cooling towers would do the same, while the fossil fuel plant also warms the earth by emitting carbon dioxide.

Why are cooling towers so tall?

Reason for general shape: hollow structure is required through which hot air from the bottom, to a cooler top, which is at a lower pressure. More air flowing through the tower means better cooling, so a tower allowing more air to pass through is best (wider tower, more gaps at bottom).

How were cooling towers built?

They are often constructed as hyperboloid, doubly-curved concrete shell structures supported on a series of concrete struts. The foundations typically consist of an inclined pond wall forming a circular ‘tee’ beam with a wide concrete strip. The beam acts to resist the lateral load of the tower’s shell structure.
