What is difference between arc fault and GFCI breakers

The AFCI (Arc Fault Circuit Interrupter) protects against fires caused by arcing faults. Arcing faults often occur in damaged or deteriorated wires and cords. … The GFCI (Ground Fault Circuit Interrupter) is designed to protect people from severe or fatal electric shocks.

Can you use GFCI with arc fault breaker?

The 2008 National Electrical Code (NEC) requires AFCI breakers in nearly all new construction. … They will not interfere with the operation of ground fault circuit interrupter (GFCI) outlets, so it’s safe to install AFCIs on circuits that include GFCI outlets.

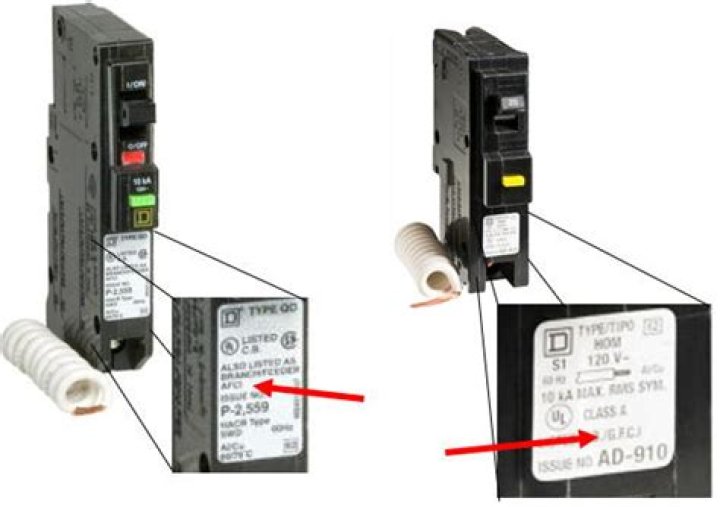

How do you know if a breaker is arc fault?

You can tell if you have AFCI breakers by looking at your electrical panel. A few breakers should have buttons for testing and be labeled as “AFCI”. However, this should not be confused with GFCI breakers (Ground Fault Circuit Interrupter) that protect wet areas.

Where do I need arc fault breakers?

AFCI protection is currently required for all 15 and 20 amp branch circuits providing power to outlets* in residential family rooms, dining rooms, living rooms, parlors, libraries, dens, bedrooms, sunrooms, recreation rooms, closets, hallways, and similar rooms or areas.

Can an AFCI replace a GFCI?

Can a separate AFCI Receptacle and a GFCI Receptacle be used on the same circuit? Yes, they both can be used on the same circuit; however, the Dual Function AFCI/GFCI Receptacle offers the option of providing both AFCI and GFCI protection in a single device.

Should I upgrade to arc fault breakers?

AFCIs have proven so effective at preventing electrical fires that the National Electrical Code (NEC) requires AFCIs to be installed in almost every room in newly built houses. … The NEC also requires the installation of AFCIs in existing homes whenever an addition, an extra circuit, or even an extra outlet is added.

Why is my AFCI breaker tripping?

The two main causes for nuisance tripping at AFCI circuit breakers are improperly wired circuits and incompatibility with electronic devices. … Another wiring problem is more of an incompatibility issue than a wiring issue, and it has to do with multi-wire circuits.

Should I use AFCI breakers?

16 states that AFCI protection is required for all 120-Volt, single phase, 15 and 20 amp branch circuits supplying outlets or devices installed in living rooms, parlors, libraries, dens, bedrooms, sunrooms, recreation rooms, closets, hallways, laundry areas, and similar rooms or areas.

Does refrigerator need AFCI?

Refrigerator Circuit A modern refrigerator requires a dedicated 20-amp circuit. … This circuit usually does not require GFCI protection unless the outlet is within 6 feet of a sink or located in a garage or basement, but it generally does require AFCI protection.

How an arc fault breaker works?

Arc Fault Breakers work by monitoring the electrical circuit for signs of electrical arcs faults. When the arc fault breaker registers an arc fault, it immediately breaks the circuit cutting power to prevent electrical fires.

Article first time published on

How long do AFCI breakers last?

For example, the average lifespan of Arc Fault Circuit Interrupters (AFCI) and Ground Fault Circuit Interrupters (GFCI) is determined to be around 15 – 20 years.

Why are AFCI breakers so expensive?

Poorly installed electronics (such as a ceiling fan) can cause your newly installed AFCI breaker to constantly trip. If this is the case, the electrician will need to fix the faulty wiring in order for the AFCI breaker to work properly and this will increase your overall cost.

Does a washing machine need to be arc-fault protected?

Therefore, by default, the clothes washing machine in a dwelling unit laundry area will be AFCI protected. Nearly every room/ area in a dwelling unit requires AFCI protection, so no matter where you put a clothes washer, it will be AFCI protected in a newer home.

Where are arc-fault breakers not required 2020?

As long as branch circuits are not extended more than 6 feet, AFCI protection is not required. In the 2020 NEC, a public input (code change proposal) was accepted to clarify “6 feet”.

Do all houses have AFCI?

AFCIs are required on all 120-volt, single-phase circuits with 15 to 20 amps supplying receptacles in all dwelling rooms. If, for example, if you use your basement as a living room, playroom, or recreational room, then you will need to install an AFCI protection. However, basements (garages, attics, etc.)

Does microwave need AFCI?

A dedicated 20-amp circuit is needed to feed the microwave oven. Since the appliance is plugged into an outlet, AFCI protection is required.

What rooms need AFCI breakers?

As of the 2014 NEC, AFCI protection is required on all branch circuits supplying outlets or devices installed in dwelling unit kitchens, along with the 2008 NEC additions of family rooms, dining rooms, living rooms, parlors, libraries, dens, bedrooms, sunrooms, recreation rooms, closets, hallways, laundry areas, and …

Does a dishwasher need an arc-fault?

All 15 and 20 Amp receptacles rated at 125 Volts located in or on a dwelling and not included in the above exceptions must be provided with arc-fault protection. This includes: Receptacles mounted under sinks and in cupboards for specific appliances such as garburators, dishwashers, switched low voltage lighting, etc.

What does it mean when the arc fault light comes on?

The term arc fault refers to a situation in which loose or corroded wiring connections create an intermittent contact that causes electrical current to spark, or arc, between metal contact points. When you hear a light switch or outlet buzzing or hissing, you are hearing arcing as it happens.

What is an arc fault outlet?

What is an Arc Fault Circuit Interrupter (AFCI) outlet and how does it work? AFCI outlets are designed to recognize many types of potentially hazardous arc-faults and respond by interrupting power, reducing the likelihood of the home’s electrical system being an ignition source of a fire.

Why does my circuit breaker keep popping?

Common reasons for your circuit breaker tripping are because of either a circuit overload, short circuit or a ground fault. … Your circuit breaker has tripped again. Sure, you can just reset the circuit breaker each time it trips.

How much does it cost to install AFCI?

Adding AFCI protection for an entire branch circuit typically requires the installation of a AFCI circuit breaker. These circuit breakers cost about $30 – $50 each, and installing them means replacing existing circuit breakers, which I don’t consider to be a good “starter” electrical project.

How many times can you reset a breaker?

Now, if you happened to plug in several appliances to that circuit AND you know the draw of the total of those appliances is greater then 15 Amps, then, and only then should you reduce the load on that circuit (unplug things), reset the breaker – only once.

Can MCB fail?

These ratings signify the maximum Prospective Fault Current (PFC) that the MCB can withstand and still operate correctly by disconnecting the circuit. Should the PFC be exceeded, the MCB could fail resulting in the contacts welding shut. As you have now read, an MCB protects against both overload and short circuit.

How much does it cost to replace an arc-fault breaker?

Replacing breakers costs between $35-$60 each. A replacement of a standard Arc Fault Circuit Interrupter (AFCI) 15-20 Amp circuit breakers will cost between $65 and $85.

Do dryers need AFCI breakers?

No — the 2014 NEC only calls out AFCIs for 120V, 15 and 20A outlets — the dryer is 240V, so it doesn’t need an AFCI. 210.12 Arc-Fault Circuit-Interrupter Protection.

Why does my washer trip the GFCI?

To narrow this problem down, there are three places that could be causing the GFCI to trip, a malfunction in the washing machine, a problem with the downstream wiring (aka load side of the GFCI), or the GFCI outlet itself.
