What is distribution bars in slab

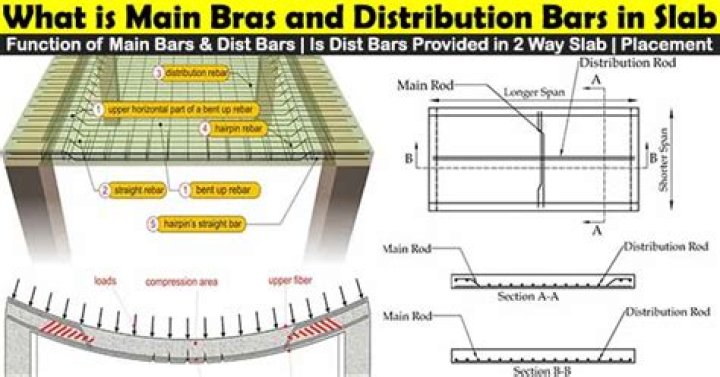

Main Reinforcement Bars are used to transfer the bending moment developed at the bottom of the slab. Distribution Bars are used to hold the slabs on either way and to resist the cracks and shear stress developed at the top.

What is main and distribution bar?

Main reinforcement bar is normally used at the bottom of the slab. Distribution bars are placed on the top of the main bar. 2. Main bar is used in shorter direction but distribution bar is used in longer span. … Main reinforcement bar is used to transfer the bending moment to beams.

How do you calculate slab distribution bar?

Formula = (total length – clear cover)/center to center spacing + 1 main bar, = (5000 – (25+25))/100 + 1, = 4950 divided by 100 + 1, = 51 bars., distribution bar = (2000 – (25+25))/125 + 1, = 1950 divided by 125 + 1, = 17 bars.

Why distribution reinforcement is provided in slab?

Distribution reinforcement is given to deal with shrinkage stress and temperature effects. … As the slab is inflexibly fixed at the ends, this shrinkage will be limited by the support, which will prompt liable tensile stress in the slab.

What is distribution reinforcement?

In one way slab main reinforcements are provided along shorter direction and reinforcement parallel to longer direction are called as distribution reinforcement. Functions of Distribution Reinforcements are as follows: (a) Provided to resist any shear stress that may develop any cracks in slab on top.

What is bar structure?

Bar structure means a surface or structure on a licensed premises if on or at any place of the surface or structure an alcoholic product is: Sample 1. Sample 2.

What is the minimum thickness of slab?

Minimum Thickness of Slab The minimum thickness of the RCC slab is 4″ or 100mm, 3″ for sidewalk, 4″ for patios, 6″ for driveway, and minimum 4″ thick for parking. It will be restricted to 4 times the nominal size of aggregate.

What is main bar?

The reinforcement bars that are placed in the tension zone of the slab to resist the bending moment & to transfer the superimposed loads to the supports that are provided for the slab are called main bars.

What is the minimum dia of bar?

As per IS 456:2000, in rcc slab, minimum diameter of main bar should not be less than 8mm (highly yield strength deform bar HYSD) or 10mm (plain bar) and distribution bar should not less than 8mm.

What is the value of maximum spacing in bar in slab?

What Is The Maximum Bar Spacing In Slab As Per IS-Code? In the case of the RCC slab, the maximum spacing between the two parallel main reinforcement bars should be 3D or 300 mm or whatever. In the case of the RCC slab, the maximum spacing between two secondary parallel wires should be 5D or 450 mm or whatever.

Article first time published on

Which mm rod is used for slab?

Bars in slab like in slab we generally use 8mm, 10mm , 12mm because load is less as compared to beam , column, footing.

How much steel is 1m3 of concrete?

Maximum quantity of steel required for 1m3 concrete slab is 1.5%, now 1.5% of 1m3 = 0.015m3, and we know that 1m3 steel weight is 7850 Kg, so weight of 0.015m3 steel = 0.015 × 7850 = 118 kg, so maximum quantity of steel required for 1m3 concrete slab is 118 Kg.

What is unit of steel?

Unit Weights of Steel The unit weight of steel is around 7850 kg/m3 or 7.85 g/cm3 or 490 lbs/ft3 or 13231 lbs/yd3. The steel bars are majorly used as reinforcement to strengthen the tensile property of concrete structures. The steel weight is generally measured in Kg, Ton, and pound.

Why is temperature bar provided?

Steel rods placed horizontally in concrete slabs for prevention of cracks due to temperature changes or drying; placed parallel to the reinforcing rods. The steel rods are placed at right angles to the main reinforcing bars.

What is the minimum reinforcement in slab?

Minimum reinforcement in slab In slab, minimum reinforcement shall be 0.12% of gross sectional area (B×D), taking B= 1m width of slab and D= overall depth including cover, then minimum reinforcement will be = 0.12/100× × 100× D = 0.12D sq. cm.

What is main rod?

n. A rod that transmits motion or power from one moving part to another, especially the rod connecting the crankshaft of a motor vehicle to a piston.

Is RCC a slab code?

Reinforced Concrete Slab Design and Detailing Guide IS456: 2000.

What is the size of RCC slab?

The minimum RCC beam size should not be less than 9 ʺ × 9 ʺ or 225mm × 225mm with the addition of a 125mm slab thickness. The size of the columns depends on the total load on the columns. The minimum column size should not be less than 9 “x9”.

Is 5 inch slab enough?

Thickness of slab varies from 5 inches to 8 inches mostly, The minimum thickness of slab which ACI recommends is 5″ and it should not be less than that. Minimum thickness of slab is restricted to 4 times the nominal size of aggregate.

What is difference between Rod and bar?

is that bar is a solid, more or less rigid object with a uniform cross-section smaller than its length or bar can be a non-si unit of pressure equal to 100,000 pascals, approximately equal to atmospheric pressure at sea level while rod is a straight, round stick, shaft, bar, cane, or staff.

What is the difference between beams and bars?

A beam is Structural member; bar is a building material. Beam can be made of RCC or steel or any other composite material; whereas bar is usually made of Steel ( In Structural Engineering).

What is difference between beam and rod?

The main difference between Bar/Rod & Beam is in the basis of loading conditions. A rod and Bar are subjected to Axial load only, this can be either tensile or compressive but not torsion or bending. And a Beam can be subjected to any type of load, tension compression, torsion and bending, shear etc.

Can we use 10mm bar in column?

According to general thumb rule, we will assume a structure of G+1/2 storey/two floor residential building, using standard 9″ thick walls, the best mm bar used for 2 storey/G+1 building, we should use steel bar of 10mm dia for footing, combination of 12mm & 16mm dia of steel bar used for column, 12mm dia of steel bar …

What is TMT steel bars?

TMT steel bars are steel bars that are manufactured with unique metallurgical process known as “Thermo Mechanical Treatment”. These TMT bars are approved by the Bureau of Indian Standards for building and construction projects. The Fe 500 and Fe 500D are some of the best TMT Bars in India.

Which bar is used for slab?

Crank bar, also known as bent up bar is very important for slabs. It is also important for preparing a bar bending schedule.

What is negative bar in slab?

Postive bars are provided to resist positive moments, and they are provided at the bottom of the two way slab whereas negative bars are provided to resist negative moments and they are provided on the top of the two way slab.

What is negative and positive Bar?

A beam is a horizontal member and it takes load by bending itself only. … Sagging is also called positive bending and hogging is called negative bending. If sagging occurs- it means beam is undergoing positive bending moment so the reinforcement provided for this moment resistance will be termed as Positive Steel.

What is a bar for?

Bars, by definition, are the places where people go to consume numerous alcoholic beverages. The primary objective of bars is to provide you with as many different alcoholic drinks or liquors as possible. … There seems to be a bar for every individual and drink, ranging from a dive bar to a sports bar.

What is AST minimum in beam?

Minimum area of tension steel Ast,min (mm2) = 0.205 % of the gross area of section.

How do you calculate AST?

It is the area of the tension steel (bar). there are diffrent minimum area for tension in many codes but it is generally taken as P min=Ast min=0.5/fyk, fyk=the characterstic compressive strength of the steel.

What is the distance between two bars?

Generally the spacing between two bars in beams depends upon maximum aggregate size used for concrete. Minimum spacing between two bars can be taken as approximately 50–75 mm.
