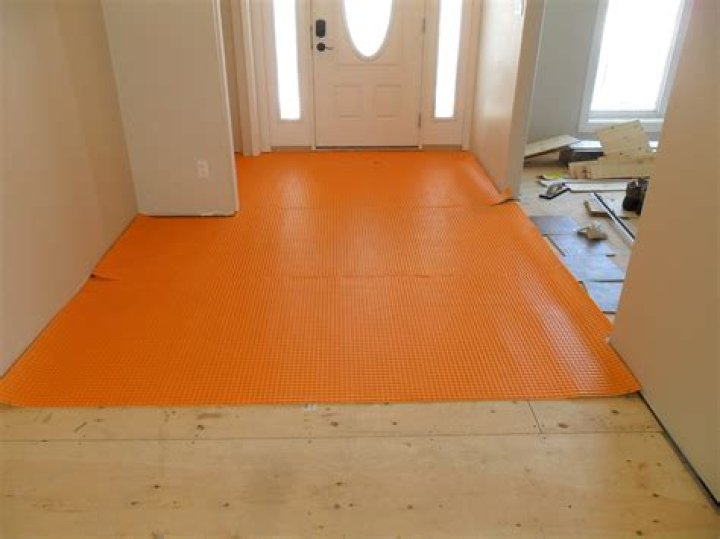

What is Ditra matting used for

DITRA Matting can be used on a wide range of surfaces, including: concrete, mortar screeds, gypsum based screeds, radiant heated screeds and masonry/mixed substrates. DITRA Matting is particularly useful when installing underfloor heating and provides a decoupling layer between the underfloor heating and the tiles.

What does DITRA matting do?

Schluter DITRA Matting is designed for tile and natural stone installations, and serves as a waterproofing membrane, a vapour pressure equalisation layer to accommodate moisture occurring at the underside of the substrate and an uncoupling layer for problematic substrates. The substrate must be even and load bearing.

Should I use DITRA or cement board?

Ditra is waterproof, while cement board lets water through but won’t be damaged by it. This may make Ditra a better choice if moisture from below is a concern, such as with some outdoor applications or installations over concrete.

What is DITRA membrane used for?

Ditra is an uncoupling membrane designed for ceramic and stone tile installations on floors. It provides uncoupling to prevent cracked tile and grout. It is made of polyethylene creating a waterproofing layer protecting the substrate.

Can I use DITRA mat on floorboards?

Installation of ceramic tiles to Schlüter®-DITRA on timber floors with UltraTile adhesive: … Using a 3x3mm notched trowel, apply a layer of UltraTile ProFlex SP over the floorboards to a sufficient depth to secure the fabric fleece on the Schlüter®-DITRA underside of the matting.

Does DITRA really work?

5.0 out of 5 stars The go to decoupler of tile to subfloor. Very good product and since using have had no problems with tile or grout cracking. Easy to install. Given the size of tile and its cost today, not having to replace tile or re-install is terrific.

Is DITRA mat waterproof?

DITRA and DITRA-XL installations can be made waterproof with minimal effort. Since the matting is made of waterproof polypropylene, the only extra step necessary is to seal the seams and floor/wall connections. … KERDI-DRAIN or KERDI-LINE may be used to provide drainage in DITRA and DITRA-XL installations.

Can you walk on Ditra?

Pro-Tip: DITRA can be walked on immediately after; there’s no need to wait for the mortar to cure.

Is Ditra good for porcelain tile?

Since DITRA is impervious, it does not deprive the mortar of its moisture. … Therefore, extended cure times would be required before grouting if using modified thin-set mortars between DITRA and ceramic tile, including porcelain tile. If extended cure times were not observed, the results could be unpredictable.

How thick is Ditra when installed?

DITRA is 1/8″ (3 mm) thick, which minimizes tile assembly thickness and reduces transitions to lower surface coverings (e.g., carpet, engineered wood, and vinyl). DITRA allows for ceramic tile application over single-layer plywood or OSB subfloors on joists spaced up to 19.2″ (488 mm) o.c.

Article first time published on

What subfloor is needed for tile?

Exterior-Grade Plywood Exterior plywood is an acceptable underlayment for tile and is preferred to interior-grade plywoods because the bonding adhesives used are waterproof. If water seeps through the tile installation to the underlayment, it will not cause the wood to swell, as happens with interior-grade plywood.

Can you lay tiles on a wooden floor?

Tiling on wood. Can you tile on wood? Yes, but because wooden floors naturally bend, bounce and expand, tiles can end up cracking under the pressure if installed incorrectly. Tiling on wood surfaces is all about ensuring there is enough rigidity in the wooden subfloor and selecting the correct flexible tile adhesive.

Can I tile over floorboards?

Good news, yes you can! Tiling over floorboards is possible with the use of plywood or backer boards. In short, a layer of ‘board’ over your floorboards will keep the surface you’re tiling strong and sturdy, and help you minimise any movement from your old floorboards.

Can you lay underfloor heating on Ditra mat?

Can you put Ditra under shower?

The simple answer is yes. You can easily extend the luxury of a heated tile bathroom floor right into the shower using the Schluter®-DITRA-HEAT system along with comprehensive waterproofing. Have a look at how you can install DITRA-HEAT in the shower below.

How thick is Ditra matting?

Tiles that are installed in floor coverings with Schlüter®-DITRA 25 should have a minimum size of 5 x 5 cm and be at least 5.5 mm thick.

Is DITRA necessary on concrete?

Yes, writes Doug McEvers, Ditra will insulate the concrete slab from the tile and lower the potential for thermal storage. “There is nothing wrong with tile laid directly on concrete providing all precautions are taken regarding moisture proofing,” he says. “Tile and grout work loose if the underlayment flexes.

Is uncoupling membrane necessary?

Most commonly, uncoupling membranes are used when laying tile over concrete. … Other less common and more challenging substrates like asphalt and metal require an uncoupling membrane to ensure the tile will adhere to these surfaces.

How much does it cost to install Ditra?

Uncoupling membrane Schluter-DITRA has the advantage of being waterproof. It is also the thinnest, ideal for use where you don’t want height buildup. DITRA (1/8”) and DITRA XL (5/16”) cost $1.35 to $2.15 per square foot for the material. Installed cost is $3.00 to $4.00.

Which thinset to use with Ditra?

To set DITRA over concrete or gypsum, Schluter-Systems recommends an unmodified thin-set mortar meeting the requirements of ANSI A118.

How soon can you tile after installing Ditra?

How long do I have to wait before I can install tile on the Schluter®-DITRA membrane? Once DITRA has been installed on the substrate, tile can be installed right away. No need to wait for the mortar to cure.

How long does thinset take to dry on Ditra?

24 to 48 Hours You should wait at least 24 hours before grouting the tiles. You may notice that the edges of the thinset or the thinset showing through the grout lines looks dry. Don’t be fooled by this. The thinset under the tiles isn’t receiving as much air as the edges and is therefor not fully cured.

What thinset is used for porcelain tile?

ANSWER – Porcelain Tile should be installed with a latex modified thin-set or a polymer modified thin-set. The Custom Marble Granite Mortar I believe is a polymer modified thin-set. For larger tiles 12×12 or larger should use a 1/4″ sq. notch trowel.

How thick should subfloor be for Ditra?

Proper Floor Preparation However, the plywood subfloor must be thick enough to support the tile floor. This means: A minimum of 5/8” nominal plywood or OSB thickness installed over joists on 16” centers.

Is Ditra heat the same thickness as Ditra?

Only 1/4″ (5.5 mm)-thick, DITRA-HEAT provides the thinnest possible assembly without sacrificing performance. With its integrated thermal break, DITRA-HEAT-TB is ideal for concrete substrates as it increases efficiency and produces warm floors faster, resulting in saved energy costs.

How thick will tile and thinset be?

In most installations, a layer of thinset 3/16 to 1/8-inch thick is sufficient. Too much thinset creates a mess and inhibits proper bonding between the tile and the substrate. For most tiles, apply a layer of thinset 3/16–1/8-inch thick.

Can I just screw down cement board?

Screw and Joints Do not use drywall screws as they are not recommended to be used to hold the backer board in place. All of your backer board pieces should be cut before they are placed on the floor. … It is important to highlight that screws shall not be installed all the way down to the floor joists.

Can I tile directly to plywood?

Tile can be laid on plywood. But do not install tile directly on the plywood subfloor itself. Use an intervening layer of a sheet of thinner plywood.

What is the best underlayment for a bathroom floor?

Most floor coverings are best installed over a rigid underlayment applied over the subfloor: Plywood: Sheets of 4-by-8-foot A/C grade plywood cut to size are an excellent underlayment.
