What is Ltpd in acceptance sampling

The LTPD of a sampling plan is a level of quality routinely rejected by the sampling plan. It is generally defined as that level of quality (percent defective, defects per hundred units, etc.) that the sampling plan will accept 10% of the time.

How do you calculate Ltpd?

The LTPD of a sampling plan is the level of quality routinely rejected by the sampling plan. It is generally defined as the percent defective (number of defectives per hundred units X 100%) that the sampling plan will reject 90% of the time.

What is lot size in sampling?

Lot size has only a minor effect limited to the case when 10% or more of the lot is inspected. As a result, the single sampling plan n=13 and a=0 provides the same protection regardless of whether the lot size is 50, 200, or 200,000.

What is LQ in sampling?

The Limiting Quality (LQ) for a given sampling plan is the rate of non-conforming items at which a lot will be accepted with a low probability, usually 10 %. The Limiting Quality (LQ) is applied when a lot is considered in isolation.

What is RQL sampling?

The rejectable quality level (RQL) is the highest defective rate or defect rate that the consumer is willing to tolerate in an individual lot. The RQL describes what the sampling plan will reject, and the AQL describes what the sampling plan will accept.

What is LTPD and AQL?

The Acceptance Quality Limit (AQL) is generally defined as the percent defectives that the plan will accept 95% of the time. … The Lot Tolerance Percent Defective (LTPD) is generally defined as percent defective that the plan will reject 90% of the time.

What does Ltpd stand for?

LTPD – Lot Tolerance Percent Defective. The LTPD of a sampling plan is a level of quality routinely rejected by the sampling plan. It is generally defined as that level of quality (percent defective, defects per hundred units, etc.) that the sampling plan will accept 10% of the time.

What is ATI curve?

The average total inspection (ATI) plot depicts the relationship between the quality of the incoming material and the number of items that need to be inspected, assuming that rejected lots will be 100% inspected and that a rectifying inspection of defective items will be performed.

What is ASN curve?

The ASN curve shows the average number of units inspected (y-axis) for different incoming qualities (bottom axis). For single sampling plans the ASN is a constant so the ASN curve is a straight across line.

How many types of acceptance sampling are there?

This article throws light upon the three main types of sampling plans used for acceptance sampling. The types are: 1. Single Sampling Plan 2. Double Sampling Plan 3.

Article first time published on

What is acceptance number in sampling?

c, the acceptance number, is the largest number of nonconforming items from the sample of size n for which the lot should still be accepted. c + 1, the rejection number, is the smallest number of nonconforming items from the sample of size n for which the lot should be rejected.

How is lot acceptance rate calculated?

Lot Acceptance Rate (LAR) = the number of accepted lots in a timeframe divided by the number of lots started by the same covered establishment in the current reporting timeframe. This metric is an indicator of manufacturing process performance.

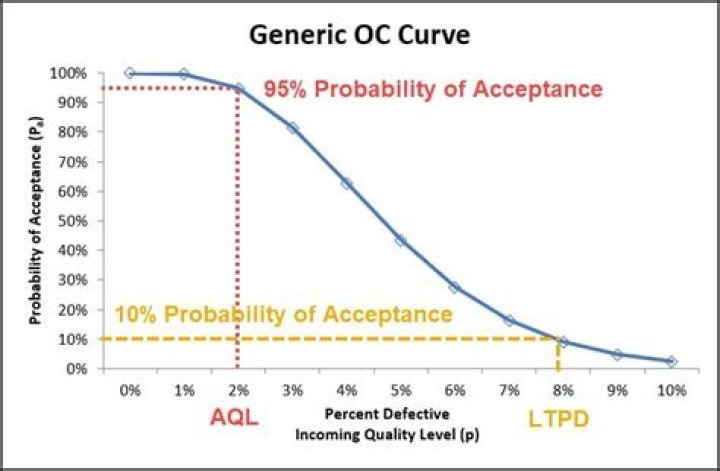

What is OC curve in statistics?

The Operating Characteristic (OC) curve describes the probability of accepting a Lot as a function of the Lots quality (where a Lot is a batch or section of continuous work). As the proportion defective increases, the probability of acceptance of the lot in question decreases.

What is acceptance sampling in bulk production process?

Acceptance sampling is a statistical measure used in quality control. It allows a company to determine the quality of a batch of products by selecting a specified number for testing. … Testing a small sample would be indicative without ruining the bulk of the product run.

How do you calculate an OC curve?

P_aP_d0.9800.020.9300.030.8450.040.7390.05

What is acceptance quality level Mcq?

Acceptable quality level : It is the maximum percentage of defective parts for sampling inspection which are considered satisfactory as a process average. It is considered as percentage defective which has 95% probability of acceptance.

What is AOQL in quality control?

AOQL – Average Outgoing Quality Limit. AOQL – Average Outgoing Quality Limit. The AOQL of a sampling plan is maximum value on the AOQ curve. It is applicable for defective units, defects per unit, and defects per quantity.

What is sampling plan for inspection?

Sampling inspection plans are usually designed to protect the interest of the producer and consumer. This is accomplished by specifying quality levels and the associated risks of acceptance and rejection. The most popular indices for the design of a plan are the AQL, LQL, producer’s and consumer’s risks.

How is AQL level calculated?

Acceptable Quality Level (AQL) is the maximum percent defective (or maximum number of defects per 100 units) that can be considered acceptable. AQL is measured in defects per 100 units.

What does AQL 4.0 mean?

0% for critical defects (totally unacceptable: a user might get harmed, or regulations are not respected). 2.5% for major defects (these products would usually not be considered acceptable by the end user). 4.0% for minor defects (there is some departure from specifications, but most users would not mind it).

What is the difference between AQL and RQL?

RQL is the %nonconforming value at which there is β% chance that the product will be accepted by the customer. The RQL value corresponding to the beta value is much more important than the AQL value. The RQL value has a direct relationship with the Reliability/Confidence values.

How is ASN calculated?

The general formula for an average sample number curve of a double-sampling plan with complete inspection of the second sample is \mbox{ASN} = n_1 P_1 + (n_1 + n_2)(1-P_1) = n_1 + n_2(1-P_1) \, . where P_1 is the probability of a decision on the first sample.

What is sequential or double sampling?

(iii) Sequential Sampling Plan: This plan is simply an extension of double sampling plan. At each stage of sampling, the cumulated results are analysed to take a decision of accepting or rejecting a lot. If at any stage no final decision can be taken, then another sample is drawn to take further decision.

Which of the following is false regarding when acceptance sampling is useful?

Q.Which of the following is false regarding when acceptance sampling is useful:C.When there are potentially serious product liability riskD.When 100% inspection is not technically feasibleAnswer» b. When 100% inspection cost is very low

Which is the correct listing of the elements of an acceptance sampling plan?

Which is the correct listing of the elements of an acceptance sampling plan? The lot size, sample size, and acceptance number.

How do you find the probability of acceptance?

The probability of acceptance is the probability that d, the number of defectives, is less than or equal to c, the acceptance number. This means that P_a = P(d \le c) = \sum_{d=0}^c \frac{n!}{

What is acceptance sampling PPT?

Conclusion  Acceptance sampling is a statistical procedure used to determine whether to accept or reject a production lot of material.  A wide variety of sampling plans are available. Plans have an accepted AQL & a rejected LTPD & an AOQL.

What is inspection and acceptance sampling?

Acceptance sampling is a quality control procedure, which uses the inspection of small samples instead of 100 percent inspection in making the decision to accept or reject much larger quantities, called a lot. … When acceptance sampling is used, the management decides on an Acceptable Quality Level, or AQL.

Why do we need acceptance sampling?

A point to remember is that the main purpose of acceptance sampling is to decide whether or not the lot is likely to be acceptable, not to estimate the quality of the lot. Acceptance sampling is employed when one or several of the following hold: Testing is destructive. The cost of 100% inspection is very high.

What is the example of acceptance sampling?

For example, suppose you’re receiving 10,000 transistors. You will inspect 89 of them. If there are 0, 1, or 2 defective transistors, you can accept the shipment. But if the sample contains more than 2 defectives, you’ll reject the lot.

What is lot acceptance testing?

Lot acceptance testing (LAT) is used to ensure that manufacturers continue to produce helmets that conform to contract specifications. A random sample of helmets is selected from the production lot, and the helmet shells as well as hardware are tested according to the LAT protocol.
