What is multi wire

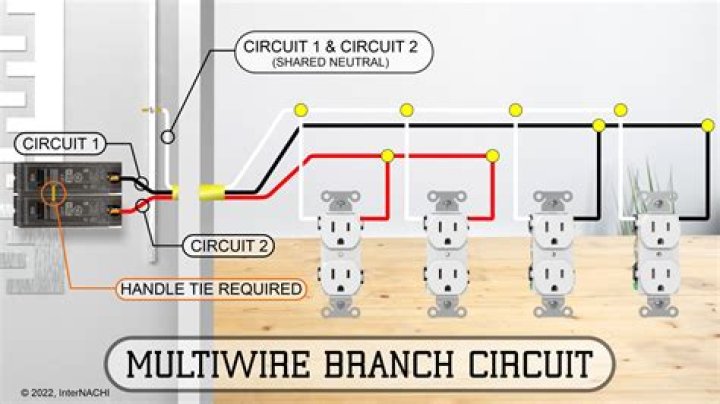

A multiwire branch circuit is a branch circuit with a shared neutral. This means there are two or more ungrounded (hot) phase or system conductors with a voltage between them and a shared neutral.

What is an MWBC?

MWBC is an acronym for multi-wire branch circuit. It is a method of wiring when an electrician uses one cable, for two circuits. The two circuits share one neutral. A more technical definition would be when two ungrounded conductors share one grounded conductor.

Why would you use a multiwire branch circuit?

With a multiwire branch circuit, if the ungrounded conductors have the same load on each ungrounded conductor, there will be balanced loads on all of the ungrounded circuits, so the loss of a neutral may not be as noticeable since there will be very little, if any, imbalance.

Are multi wire branch circuits legal?

The National Electrical Code permits multiwire branch circuits, but adds requirements to make them safer. Section 210.4(B) states that in the panelboard where the branch circuit originates, all ungrounded conductors must be provided with a means to disconnect them simultaneously.

Can you share neutrals in residential?

If the two circuits are from the same line, the main danger is overloading the neutral with too much current. A fire hazard as the neutral is not connected to a breaker. In short, stay safe and run separate neutrals for each circuit. you definitely do not want to share neutrals from different circuits.

What is a split wired circuit?

A split-wired circuit, also known as a multi-wire circuit, can be recognized by the red, black and white wires entering the receptacle outlet box from a single cable. In a multi-wire circuit, the red and black hot wires share a common neutral.

Can I split a neutral wire?

3 Answers. Yes, the proper term for that is “multi-wire branch circuit”. Two hot wires share a neutral. The neutral handles only the difference in current, becuase the hots are on opposite poles.

Can you connect 2 hot wires together?

Connect all your hots together, and all your negatives, you increase amps. The same can be done with two power supplies, connecting hots together and negatives together increases amps.

How do you identify a multi wire branch circuit?

A multiwire branch circuit is a branch circuit with a shared neutral. This means there are two or more ungrounded (hot) phase or system conductors with a voltage between them and a shared neutral.

How many hot wires can share a neutral?

(Basically, two hot wires are sharing a neutral wire.) This circuit has also been referred to as: The Edison Circuit. Common Neutral Circuit.

Article first time published on

Can a multiwire branch circuit supply an emergency lighting circuit?

Code Change Summary: A new code section makes it clear that specific emergency circuits cannot be supplied from a multiwire branch circuit. Emergency circuits provide limited power and emergency lighting so that occupants can safely egress the building during an emergency. …

Can 2 circuits share a ground?

The code requires each branch circuit to have an equipment ground (either a wire, or conduit, or cable tray as in 250.120A), they can be shared when they are in the same raceway.

Why are there two neutral wires?

We normally use a common neutral point to make two saperate circuits to share the signals between them. Generally, The phase being the higher potential will provide the AC current which will be delivered back to the source by the neutral wire after serving the load.

Can I connect all neutral wires together?

All of the neutral wires that are connected together should belong to a single circuit. You can generally tell if it is a single circuit if you only have to turn off 1 breaker. If this is the case, then you should keep all the neutrals together.

Can you connect 3 neutral wires together?

Neutrals, like grounds, can be tied together, but it is best if they are all part of the same circuit . Wire nuts have a rating for how many wires you can safely tie together.

Can I wire lights and outlets on the same circuit?

Yes, you can. The average home uses an indoor distribution board that houses the breakers of the majority of circuits in the home. A circuit controlled by a 15A circuit breaker (which a lot of contractors use for general lighting) can also accommodate outlets.

Where are electrical receptacles not permitted to be located?

For example, a sun-room in a dwelling has no wall space because of floor-to-ceiling windows. Receptacles are not usually installed in the ceiling because receptacles located more than 5.5 feet (1.7 meters) above the floor cannot be counted as required receptacles.

How do you split a circuit?

1. Step 1: Disconnect One Line in your Double-tap Breaker. …
2. Step 2: Install Additional Circuit Breaker and Connect the Extra Line. …
3. Step 1: Find the Linked Wire in Your Junction Box. …
4. Step 2: Install a New Line. …
5. Step 3: Connect the Line.

What are kitchen receptacles?

a) A receptacle shall be installed for any counter that is 12 inches wide or greater; and, b) No point on the kitchen counter, measured at the wall may be more that 24 inches away from a receptacle. Also known as the 2ft. / 4ft.

Is it safe to split an outlet?

The National Electrical Code now requires that the two hot wires in a split receptacle must be connected to a double-pole circuit breaker, so that when the breaker is shut off, the action will automatically disconnect both receptacles. That way, the outlet will be safe to work on.

How many branch circuits are required in a home?

As mentioned in June, a minimum of two small-appliance branch circuits are required in kitchens. [210.52(B)(1)] Kitchen countertop surfaces have the same requirement. At least two small-appliance branch circuits are required to feed the receptacles that serve countertop surfaces in a kitchen. (See Figure 1.)

What is a feeder circuit?

Definition of Branch Circuit and Feeder Circuit Branch Circuit: Any circuit that extends beyond the final overcurrent protective device is called a branch circuit. … Feeder Circuit: The conductors between the service equipment and the branch-circuit overcurrent devices are called feeders.

What is a common neutral?

Shared neutral. A shared neutral is a connection in which a plurality of circuits use the same neutral connection. This is also known as a common neutral, and the circuits and neutral together are sometimes referred to as an Edison circuit.

What happens if you touch two live wires together?

You will receive a shock if you touch two wires at different voltages at the same time. You will receive a shock if you touch a live wire and are grounded at the same time. When a circuit, electrical component, or equipment is energized, a potential shock hazard is present.

What happens if you connect 2 live wires?

Connecting two live wires in such a way to the switch will do nothing if both live wires are from the same source, as no current will flow as they should both possess the same potential measured in volts ( An electrical current flows between points of different potentials) BUT if the ‘Live’ wires are from different …

What happens if you touch two hot wires?

A short circuit happens when a “hot” wire (black) touches another hot wire or touches a “neutral” wire (white) in one of your outlets. When these two wires touch, a large amount of current flows, creating more heat than the circuit can handle, so it shuts off.

Can neutral wire be smaller than hot?

In a single phase circuit the neutral should never be thinner than the hot wire. Even with 3 phase systems you can’t assume that the neutral current is always low. In an office where the three phases are used for three separate single phase circuits, they won’t always be balanced.

Can multiple conductors be placed under one terminal?

The listing of this panelboard states that it is permissible to install two conductors under one terminal, but the conductors must be equipment grounding conductors. Installing two grounded or neutral conductors under one terminal shall not be permitted. … Requirements for conductor splices are in 110.14(B).

What is the minimum separation between cells when installing batteries?

The individual batteries should be placed on the rack tier/shelf with 1/2″ (1.27 cm) spacing between the units. This is important to assure the inter-unit connecting cables properly align with the adjacent battery terminals and to allow air space for proper cooling of the batteries.

Can a 3 way switch be used as a disconnecting means?

Now snap switches, 3-way and 4-way switches cannot be used as a disconnecting means for residential garages or outbuildings.

Does emergency power have to be in conduit?

Section 517.30(C)(3) in the 2002 National Electrical Code (NEC) requires emergency branch circuits to be mechanically protected by installation in a nonflexible metal raceway or cable with minor exceptions. While this seems to be a fairly simple statement, it is not an easy task to execute.
