What is reverse phase dimming

When you dim a light or light source, you’re not lowering the voltage, you’re actually removing power from the circuit. … However, if the voltage is ridden gently, and then just shut off, it ends up being much easier on the electronic circuitry. This is called reverse phase dimming.

What is reverse phase dimmer?

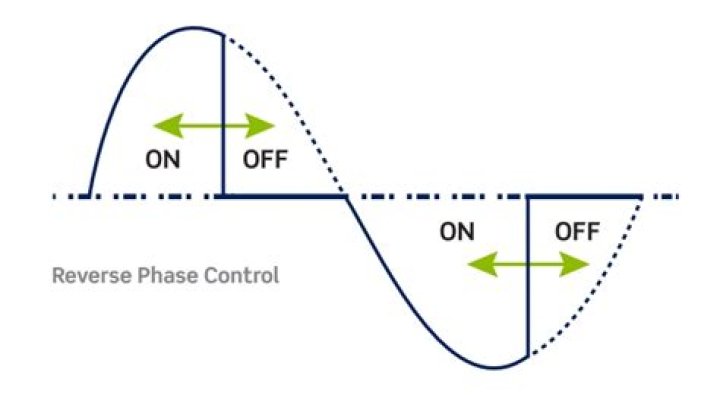

Also called Trailing-edge dimming, the reverse phase control works very similarly to forward phase dimming by cutting each half cycle of the power wave. But this time, the power is ON during the initial part of the half cycle and then turns off in the middle of the cycle.

What does phase dimming mean?

Phase-Cut Dimming “Phase-cut” dimmers work by taking the line input power (120V “house power”) and modulating the signal to reduce the power to the load. By “chopping” the signal, the load experiences a lower voltage, resulting in a lower light output.

What is the difference between forward phase and reverse phase dimming?

Reverse phase dimming usually gives you better overall control and smooth dimming down to 5% light levels, while forward phase normally dims smoothly down to 10%. Generally works better with LED light sources and all electronic low-voltage systems.

Is ELV dimming forward or reverse phase?

Reverse Phase (ELV): Reverse phase-cut dimming is designed specifically for low-voltage (ELV) systems and almost always requires the use of a neutral wire. It usually uses a MOSFET dimmer that phase cuts the trailing edge of the AC sine wave.

What are the two types of phase cut dimming?

Phase-cut dimmers can operate on the leading edge (forward phase-cut) or trailing edge (reverse phase-cut) of the waveform.

What is triac dimming?

TRIAC dimming controls act as a high-speed switch and are used to control the amount of electrical energy passing to a bulb. A ‘trigger’ dictates what point the device starts to conduct the electricity, essentially “chopping up” the voltage waveform, stopping the voltage from being supplied at full load.

How does a 0-10V dimmer work?

0-10V dimming is a lighting control method that – on direct current voltage (DC) between 0 and 10 volts – can produce light at varying intensity levels. … At 0 volts, the light will dim to its minimum light level, although sometimes a switch is required to turn the lights off completely.

What is MLV lighting?

Magnetic Low Voltage (MLV): Dimmers designed to be used with a magnetic driver. This feeds the power out in a way that the driver can read and respond to without damaging the driver hardware. Electronic Low Voltage (ELV): Like the MLV dimmer, the ELV dimmer is designed for us with an electronic driver.

What is the difference between 0-10V and 1 10V dimming?

The main difference between 0-10V and 1-10V is the direction of the current between the dimmer and the driver. 0-10V conduction at 0.3V;When 1-10 V is turned on at 0.7-0.8 V, the bulb will not be able to turn off completely.

Article first time published on

What are the different types of dimmers?

Incandescent and halogen bulbs.
Dimmable compact fluorescent light bulbs.
Magnetic Low Frequency (MLV)
Electronic Low Frequency (ELV)

What are the different types of dimming?

Switched Mains (Non Dimming) If you don’t need to dim your LED fitting then this is the driver type to choose. …
Mains Dimming (Leading Edge) …
1-10v Dimming. …
Mains Dimming (Trailing Edge) …
DMX. …
DALI.

What does a LUT MLC do?

The LUT-MLC load adapter is provided to help ensure proper operation of the switch with LED, CFL, fluorescent, and ELV lighting loads. When controlling one of these load types, a LUT-MLC may be required, especially at lower wattages.

What is a DALI dimmer?

A DALI dimmer is a product that allows the DALI network to communicate with and control lighting fixtures. By assigning a DALI address to a dimmer it can then receive and decode dimming commands. DALI lighting control uses an additional low voltage cable run separate to the mains feed for control signals.

Is triac and MLV the same?

In other words, a “Leading Edge Dimmer”. Or a “Forward Phase” dimmer. Or, an MLV dimmer! They’re all the same thing.

What is SCR dimmer?

Silicon-controlled Rectifier dimming, or SCR, has been a popular method of dimming for decades due to its stability. Also known as an autotransformer dimmer, this device has been used with incandescent lights for years to provide consistent and inexpensive dimming solutions.

What is a CL dimmer?

C.L dimmers are designed and UL listed for controlling not only a broad range of dimmable CFLs and LEDs, but also incandescent and halogen bulbs. … This technology ensures that CFLs and LEDs dim reliably each and every time you turn on the lights.

How do you dimmer LED lights?

Can led lights be dimmed using resistors? Dimming an LED light is as easy as adding resistors to the connection or even several resistors, to ensure you get the right brightness – this is called analog dimming.

How does a 1 10V dimmer work?

1–10V. It works in a similar fashion to 0-10v dimming, but the voltage is ‘sinked’ by the driver and will only go as low as 10% before the power to the circuit needs to be physically switched off. This method provides a very smooth dimming curve which is especially useful for colour changing LEDs.

What is triac dimming vs 0-10V?

0-10V dimming is also called 0-10V signal dimming. It is an analog dimming method. It differs from the triac dimming that it has two 0-10V interfaces on the 0-10V power supply (+10V and -10V), which controls the output current of the power supply by changing the voltage of 0-10V to achieve dimming.

Are light dimmers analog or digital?

The Difference Between Digital and Analog With the dimmer, I can vary the brightness of the light anywhere within a defined range of values. The dimmer switch is an analog device because of this. The light can be fully on, fully off, or take on some level of brightness in between.

How do CL dimmers work?

A CL dimmer uses resistors to alter the power output and you will be able to use your bulb of choice, even if that’s an LED or fluorescent light. You do need to make sure the lights themselves are dimmable. If you attempt to use an incandescent dimmer with these lights, it will either not work at all or malfunction.

What is ELV driver?

ELV (Electronic Low Voltage) dimmable drivers are compact power supplies that can be placed in remote locations, and provide stable and efficient power. Advanced technology reads the signal from a TRIAC dimmer switch for smooth dimming.

What is a MLV transformer?

A device is required to convert line-voltage (120, 230, or 277 V) power into low-voltage needed for the lighting load. This device is either a magnetic low-voltage (MLV) transformer or an electronic low-voltage (ELV) transformer.

How does a DC dimmer switch work?

Modern dimmers take electricity that is flowing through a light’s circuit and switch it on and then off. When this happens, it diverts electricity from the light bulb. The amount of electrical current flowing through the lightbulb is reduced.

What are purple and gray wires?

The dimming signal, which is connected to the source (driver) typically has a purple wire that represents +10 volts and a gray wire representing the signal. When both wires are not touching, the dimming control output will be 10 volts, or 100%. When they are touching, the dimming control output will be 0 volts.

What is analog dimming?

Analogue dimming is usually referred to as 1 – 10v dimming. In this case, a dc voltage is sent to the driver which dims the LEDs in response to the voltage. With digital dimming, the driver receives a digital signal which tells it how to respond. The advantage of digital dimming is that fixtures are addressable.

What does DC 10V mean?

0-10V dimming applies a direct current voltage (DC) between 0 and 10 Volts to produce light at varying intensity levels. At 10V, the lights controlled by the dimmer are at 100% brightness. At 1V, the lights are at 10% measured brightness, which may actually be perceived as 32% brightness.

Can you use a 0-10V dimmer on a 1 10V driver?

If a 1-10V dimmer is used with a 0-10V driver, the minimum level achieved will not match the minimum level available on driver. On the flip side, when a 0-10V dimmer is used with a 1-10V driver, strobing or other low-end performance issues will likely happen.

Are dimmer switch potentiometer?

No. A lamp dimmer switch contains a potentiometer plus other electronics unless you’re going to remove the pot it won’t work. Better to order a pot online. You can’t read the resistance of the pot by measuring the resistance across the dimmers leads because the pot is not connected across those leads.

Are dimmer switches PWM?

A PWM dimmer switch helps to control light output. And it does this through dimming wires. That is, the dimmer switch has terminals that make contact with the driver dimming wires.
