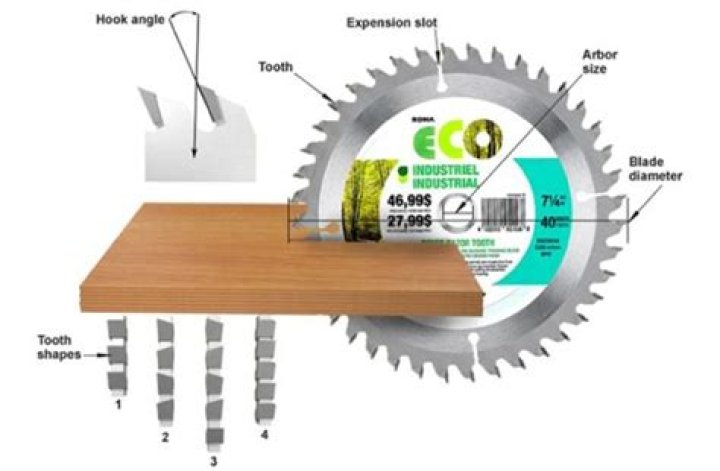

What is saw blade Arbor

The arbor is the shaft that holds the blade. On all American stationary saws that use a 10″ blade, the arbor is 5/8″ in diameter where the blade is attached.

What is arbor hole mean?

An arbor hole is the central hole that is found in a saw blade and provides the point at which the blade is connected to the arbor, another part of the saw. The term is also used to refer to the hole that is used to receive an arbor that is connected to a brush on various types of machines.

What is a saw blade bore size?

The bore is the hole at the centre of your saw blade, which is where you attach the blade to your saw. You can select a saw blade that with a bore that has a higher diameter than the bore shaft of your saw, however, you must use a reducer ring to get the right fit.

What is table saw arbor length?

Most modern table saws and radial-arm saws have a 5/8-inch arbor onto which the blade will fit.

What is an arbor adapter?

An arbor adaptor is a simple threaded attachment that allows you to fit smaller sized hole saws to your large arbor. The arbor adaptor fits over your drill bit and screws onto to the large arbor’s collar threads. You can then attach a smaller hole saw to the adaptor’s threads.

What is circular saw blade arbor?

Arbor: The arbor is also known as bore shaft / spindle / mandrel on which the blade is mounted on. It is simply a motor shaft specifically designed for mounting the circular saw blade. The blade rotates on its axis when the power is supplied to circular saw motor.

What is a Mitre saw arbor?

The saw blade is mounted on an arbor so the blade can cut through wood and other materials that require straight, precise cuts. A miter saw is generally used in construction projects. The arbor is aligned with a long, thin hole in the frame, which allows materials to be cut clean through.

Can you make a saw blade arbor hole bigger?

If the blade did somehow move off center while you are working on enlarging the hole, you could always glue a larger piece of fiberboard to the center of the plywood disc and turn a centering piece the exact size of the hole at that point. That process would center the blade exactly again.

What turns the arbor on a table saw?

The motor of the saw turns the arbor, in turn causing the blade to rotate safely. … An arbor holds the blade of a table saw firmly in place and also determines the tilt of the blade. The arbor has a machine-made flange on its right side to prevent the blade from sliding far away.

Can I use a bigger blade on my circular saw?

Can I use larger blades? Short answer: No. Long answer: You should only ever use larger circular saw blades, when the difference is fairly negligible (1 mm / 1/16″). The reason for that is that for safety reasons most saws are built to tight tolerances.

Article first time published on

What is a HSS blade used for?

HSS Saw Blades are designed for cutting non-ferrous metal and plastic where maximum cutting life between sharpening is required . Ideal for sawing a wide variety of sizes and shapes such as extrusions, tubes, sheets, plates and some bar stock.

Are hole saw arbors interchangeable?

Hole saw mandrels are also called “hole saw arbors,” so the terms are interchangeable.

What is the space between two protruding teeth on a saw blade called?

Gullet (handsaw) The space between a saw’s teeth, where the saw dust is carried out. It is an equilateral triangle, just like the file that shapes the teeth.

How should you clear away scraps that are close to the saw blade?

Use a piece of scrap stock to remove scrap pieces; do not use your hands. Keep floor area surrounding the saw clear of scraps. If the blade breaks, stand clear and shut off the power if possible. … Use a push stick or guide for cuts near the saw blade.

Whats the difference between a chop saw and a Mitre saw?

Whereas chop saws are rugged and relatively simple tools, mitre saws are designed and manufactured to make precision cuts at many different angles. Although a mitre saw can cut non-ferrous metal when used with the correct blade, they are most often used by joiners, kitchen fitters and cabinet makers to cut wood.

How do you use a hole saw without arbor?

1. Step 1: Screw Bolt Into Hole Saw. Take the bolt and carefully screw it into the hole saw. Since the threads are not precisely aligned, try to work it in slowly. …
2. Step 2: Lock Pliers Onto Hex Bolt. Lock the pliers onto the hex bolt. …
3. Step 3: Drill Hole. Start to slowly drill into the wood by pushing down into the wood.

Are hole saw arbors a standard size?

Standard Arbors with pilot drill are suitable for use with Hole Saws from 9/16″ diameter to 8-9/32″ diameter.

Can You Use a hole saw with a cordless drill?

There are plug-ejecting hole saws, but they’re not very common and only available in limited sizes. … Then use a cordless drill to drive a 3-inch screw into each hole. Alternately, drive each screw in a little at a time. When the screws bottom out against the inside of the hole saw, they’ll push out the plug.

Which saw blade makes the smoothest cut?

The 44-tooth blade (left) makes a smooth cut and is used for trim carpentry and cabinet making. The coarse 24-tooth blade (right) cuts quicker and is used for rough carpentry work.

Are Diablo saw blades any good?

The consensus is that Diablo saw blades balance great quality with excellent value, and are a good choice when replacing or upgrading the OEM blades that are often bundled with new saws. … These blades were used and tested with a Dewalt DW745 table saw, and a Makita LS1016L sliding compound miter saw.

Why do circular saw blades have a knockout?

Some saw arbors use a diamond-shape to prevent blade slippage on the arbor. However, most saws I have seen use the 5/8″ circular arbor. The knockout is there so you can use the blade on a saw that has the diamond-shaped arbor. … I can imagine that such a saw would have no chance of the blade ever slipping.

What is the difference between an arbor saw and a table saw?

Also known as the table saw, the tilting arbor saw is the single most important workshop tool for many. … The tilting arbor saw, with its pulley and belt drive, usually allows more of the sawblade to be used. And, in general, it’s much quieter than the direct-drive motor-on-arbor saw.)

Is an arbor a shaft?

As nouns the difference between shaft and arbor is that shaft is the long narrow body of a spear or arrow while arbor is a shady sitting place, usually in a park or garden, and usually surrounded by climbing shrubs or vines and other vegetation or arbor can be an axis or shaft supporting a rotating part on a lathe.

What direction do the teeth on a table saw blade need to be pointing?

Like miter saws, table saw blades rotate clockwise, meaning the teeth should be pointing down.

What is arbor size on saw blade?

The arbor is the shaft that holds the blade. On all American stationary saws that use a 10″ blade, the arbor is 5/8″ in diameter where the blade is attached.

What does bore size mean on circular saw?

The bore measurement means the size of the hole in the saw blade, this should match the boss/spigot on the saw clamping collars on your machine. If your m/c has a smaller diameter fitting it may be possible to adapt by fitting the adaptor washers supplied with the blades.

Can you drill a hole in a circular saw blade?

Unfortunately, a good saw blade has a Rockwell hardness around Rc50, which is hard enough to foil most HSS or cobalt drill bits. … You may be able to spot anneal the blade or use a very sharp bit with lots of coolant, but these are workarounds for a tool that is not appropriate for the task.

Can I put a 10 inch blade on a 12-inch saw?

Can we use a 10-inch miter saw blade on a 12-inch Miter Saw? – Quora. Yes. You just won’t have the blade reach. Meaning that you won’t be able to cut through bigger stock.

Can you use a 7-inch blade on a 10 inch saw?

Cutting Depth If you’re using a 7-inch blade in a 7 ¼ inch saw, or a 9-inch blade in a 10 inch saw, then the effect will be minimal. However, toss a 7 ¼ inch blade on a 10-inch saw and you might not be able to cut through your workpiece.

Can a 6 1 2 inch circular saw cut a 2x4?

The larger the blade, the deeper the cut. The most common blade diameter is 7-1/4 inches. Most saws with blade capacities of 6 inches or more can cut through 2-inch dimensional lumber at a 45-degree angle in a single pass.

Can I cut wood with a HSS blade?

HSS saw blades are most suitable for use in cutting solid wood, although they are also ideal for use in cutting other materials. Similarly, the blades of such circular saws, although widely used in circular saws for cutting wood, are rare.
