What is Segger J Link

SEGGER J-Links are the most widely used line of debug probes on the market. They have provided solid value to embedded development for over a decade. Unparalleled performance, an extensive feature set, many supported CPUs & compatibility with popular environments all make J-Link an unbeatable choice.

What is J-link used for?

J-Link BASE is a USB powered JTAG debug probe supporting a large number of CPU cores. Based on a 32-bit RISC CPU, it can communicate at high speed with the supported target CPUs. J-Link is used around the world in tens of thousand places for development and production (flash programming) purposes.

How do I connect my J-Link?

Connect the J-Link via USB to the PC.
Power the target device.
Connect the target device with the J-Link.
Start J-Link Commander and follow the startup configuration instructions.

What is J-Link JTAG?

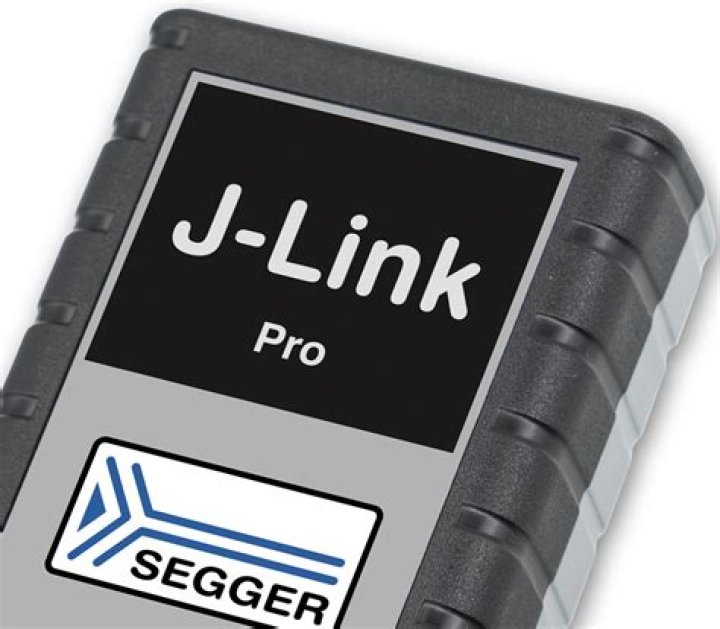

The J-LINK is a JTAG emulator designed for ARM cores. It connects via USB to a PC running Microsoft Windows 2000 or later. The J-LINK ULTRA+, J-LINK PRO and J-LINK EDU JTAG emulators are compatible to the J-Link and use the same software. The J-TRACE includes a trace function.

What is segger RTT?

SEGGER’s Real Time Transfer (RTT) is the proven technology for system monitoring and interactive user I/O in embedded applications. It combines the advantages of SWO and semihosting at very high performance. Bi-directional communication with the target application.

What JTAG means?

JTAG (named after the Joint Test Action Group which codified it) is an industry standard for verifying designs and testing printed circuit boards after manufacture. … JTAG implements standards for on-chip instrumentation in electronic design automation (EDA) as a complementary tool to digital simulation.

What is SWD interface?

SWD, also known as Serial Wire Debug is a 2-pin interface (SWDIO/SWCLK) of which it’s also an alternative JTAG interface that has the same JTAG protocol. SWD uses an ARM CPU standard bi-directional wire protocol, defined in the ARM Debug programmer.

What is the difference between JTAG and SWD?

SWD is an ARM specific protocol designed specifically for micro debugging. JTAG (Joint Test Action Group) was designed largely for chip and board testing. It is used for boundary scans, checking faults in chips/boards in production. Debugging and flashing micros was an evolution in its application over time.

What is J-Link Programmer?

The J-Link BASE is a USB powered JTAG debug probe supporting a large number of CPU cores. Based on a 32-bit RISC CPU, it can communicate at high speed with the supported target CPUs. … The J-Link Base is a great option for those getting started with JTAG/SWD programming and debugging.

What is ETM trace?

ETM trace is a high-speed trace and offers a powerful debug mode that helps you get down to the most difficult problems. One of the greatest features of ETM trace is that it is non-intrusive. This means that it is possible to trace all instructions in the core without affecting the execution of your system.

Article first time published on

How does SWD work?

SWD uses an ARM CPU standard bi-directional wire protocol, defined in the ARM Debug Interface v5. This enables the debugger to become another AMBA bus master for access to system memory and peripheral or debug registers. … External device to communicate directly with Serial Wire Debug Port (SW-DP) over SWDIO/SCLK pins.

What is JTAG debugger?

JTAG is a common hardware interface that provides your computer with a way to communicate directly with the chips on a board. … Today JTAG is used for debugging, programming and testing on virtually ALL embedded devices.

What is J-link RTT viewer?

J-Link RTT Viewer is a GUI application available for Windows, MacOS and Linux and can be downloaded as part of the J-Link Software and Documentation Pack. It enables you to use all features of RTT in one application. It supports: Displaying terminal output of Channel 0. Up to 16 virtual Terminals on Channel 0.

How do you use J-link RTT?

Make sure J-Link and target device are connected and powered up. Start RTT Viewer by opening the executable (JLinkRTTViewer.exe) from the installation folder of the J-Link Software or the start menu. The Configuration Dialog will pop up. Configure the Connection Settings as described below and click OK.

What is a RTT log?

The UART/RTT logging library provides functions to output logging information over SEGGER’s Real Time Transfer (RTT), UART, or raw UART. The library can be used both to output messages and to read input.

What is SWD in microcontroller?

SWD stands for Serial Wire Debug is the protocol designed by ARM for programming and debugging their microcontrollers. Since SWD specializes in programming and debugging, it comes with many special features that is usually not available anywhere else like sending debug info to the computer via the IO line.

Is reset needed for SWD?

Yes, eventhough the name is Single Wire Debug, you will usually need 4 connections: SWDIO (to transmit data from the programmer to the target) SWDCLK (to clock the data that is being transmited) RST (to perform a reset of the target)

What does SWD stand for in electronics?

SWD stands for Switching Duty. HID signifies rated for High Intensity Discharge lighting. The UL489 Standard for MCBs states that SWD circuit breaker can be rated up to 20A, no more. HID breakers are rated up to 50A.

What is JTAG emulator?

JTAG emulators are the “umbilical cord” between PC software tools and DSP boards during development. … When combined with a JTAG emulator, CCS provides crucial board debug and “bring up” capabilities such as single-step, breakpoint, memory and symbol display and “watch”, executable code download, and data file transfer.

What is UART and JTAG?

JTAG is a serial programming / data access protocol designed for interfacing with microcontrollers and similar devices. A UART is a chip or sub-component of a microcontroller which provides the hardware to generate an asynchronous serial stream such as RS-232 or RS-485.

What is a debug probe?

A debug probe is special hardware which allows you to control execution of a Zephyr application running on a separate board. Debug probes usually allow reading and writing registers and memory, and support breakpoint debugging of the Zephyr application on your host workstation using tools like GDB.

What is JTAG in microcontroller?

JTAG stands for Joint Test Access Group and is an association that was formed initially to derive a specification to test connectivity between chips in a PCB. … Colloquially JTAG refers to the debug and programming dongle that is used to communicate to a microcontroller during development/hacking.

What is SWD clock?

In SWD mode, two pins are used for debugging: one bi-directional pin (SWDIO) transfers the information and the second pin (SWDCLK) clocks the data. A third pin (SWO) delivers the trace data at minimum system cost.

What is boundary scan in VLSI?

Boundary scan is a method for testing interconnects (wire lines) on printed circuit boards or sub-blocks inside an integrated circuit. Boundary scan is also widely used as a debugging method to watch integrated circuit pin states, measure voltage, or analyze sub-blocks inside an integrated circuit.

What is ETM and ITM trace?

Someone of KEIL technical persons said ETM is for instruction trace and SWO(ITM) is for Data trace but in “Embedded Trace Macrocell™ ETMv1. 0 to ETMv3. 5 Architecture Specification”, it is telling that ETM is for both instruction trace and data trace.

What is DAP ARM architecture?

The Debug Access Port (DAP) is an implementation of an ARM Debug Interface version 5.1 (ADIv5. … The debug port and access ports together are referred to as the DAP. The DAP provides real-time access for the debugger without halting the processor to: AMBA system memory and peripheral registers.

What is ARM DAP?

The DAP is an implementation of the ARM Debug Interface Architecture Specification 2. The specification defines a set of Debug Port Registers that can be accessed to perform operations on the chip as well as the pinout a MCU needs to expose so external debuggers can attach to it.

What is SWD in physiotherapy?

Short Wave Diathermy (SWD) is a treatment that uses electromagnetic energy to produce deep heating in joints and soft tissues. This form of heat can be applied to deeper structures than other forms of heat treatment.

What is SWD arm?

The ARM Serial Wire Debug Interface uses a single bi-directional data connection. It is implementation defined whether the serial interface: provides a separate clock connection, and transfers data synchronously. …

What is ARM JTAG?

ARM JTAG 20. The ARM JTAG 20 connector is a 20-way 2.54mm pitch connector. It can be used in either standard JTAG (IEEE 1149.1) mode or Serial Wire Debug (SWD) mode.

What is J Flash?

The J-Flash is a stand alone flash programming software for PCs running Microsoft Windows. … In addition to its traditional Windows GUI, J-Flash supports a command line mode as well. This makes it possible to use J-Flash for batch processing purposes. It includes 6 months of free support and updates.
