What is soffit ventilation

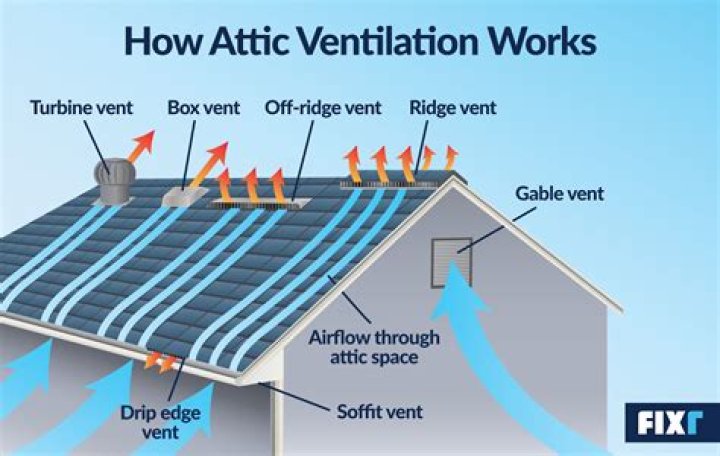

Soffit vents are roof ventilation devices installed underneath the eaves of a roof that extend past the warm wall line. When properly combined with other roof ventilation devices, soffit vents allow fresh air to enter into an attic creating air flow. … There are two types of soffit vents: Continuous and individual.

Are soffit vents necessary?

A roof may need soffit vents if there is no other ventilation allowing for adequate air movement. However, if the attic space is properly sealed and insulated, there is no need for this type of ventilation. … Soffit vents are an easy, aesthetically pleasing way to vent the attic space.

How do I know if my house has soffit vents?

The only way to be sure is to crawl up into the attic and go near the roof edge to see if you can see any daylight indicating open soffit venting. You might see a little light where the roof sheathing meets the fascia board but that might be it.

What is the purpose of a soffit vent?

These vents allow outside air to enter the attic at the lowest point of the roof—along the underside of the eave. They’re most effective when used in conjunction with a continuous ridge vent. Soffit vents come in several sizes and styles, including small round discs and rectangular grilles.

Do soffit vents help?

A well-ventilated attic makes for a healthier house. Here’s how to keep the air moving with soffit vents. Roof and soffit vents reduce cooling costs in summer, prevents ice dams in the winter, extend the life of your shingles and prevent mildew and rot by reducing moisture buildup.

How much does it cost to install soffit vents?

Cost to Install Soffit Vents Installation typically costs a homeowner between $315 and $465. Traditional units range in price from $3.30 to $4.50 per linear foot. Continuous soffit models are single units that run the length of your eaves and average $8 to $10 per linear foot.

Do soffits lead to attic?

Soffit vents are roof ventilation devices installed underneath the eaves of a roof that extend past the warm wall line. When properly combined with other roof ventilation devices, soffit vents allow fresh air to enter into an attic creating air flow.

How many soffit vents do I need?

Most professionals recommend one square foot of ventilation for every 150 square feet of attic area. This will help you determine how many soffit vents you need. For example, a 15′ x 40′ attic would have a total area of 600 square feet; divided by 150 equals 4 square feet of total ventilated space needed.

Where should soffit vents be placed?

Space the soffit vents evenly around the bottom of the low sides of your roof. There are several different types of soffit vents available including continuous, circular, and perforated vents made for vinyl siding.

Which way do soffit vents face?

It’s best to install soffit vents with the open part of the louver facing in toward the house to keep windblown debris out of the attic and prevent water from coming in when the eaves are cleaned with a garden hose or pressure washer.

Article first time published on

Can you have too much soffit venting?

You can’t have too much soffit venting, but it’s worth noting the minimum requirements. Usually, 4-in. by 16-in. soffit vents are rated for 26 sq.

How many roof vents do I need for my house?

A general guideline is homeowners need one square foot of roof vent for every 300 square feet of ceiling space, if your home has a roof with a vapor barrier, or 1:300. If not, you should have one square foot of roof vent for every 150 square feet, or 1:150.

How many eaves vents do I need?

Soffit vents are required to cool the attic space and help circulate air from outside. The general rule of thumb for the amount of soffit ventilation required is to have at least one square foot of ventilation for every 150 square feet of attic space.

How do you install soffit vents?

1. use vent itself as template for where to cut. Mark the Rafter and Cutting Locations. …
2. drill some holes in wood soffit. Drill Holes into The Soffit. …
3. use jig saw to make cuts inside scribe. Cut and Remove the Area. …
4. install vent using self tapping screws. Install the Vent.

How can I vent my attic without soffits?

To ventilate your attic without soffits you can use gable vents, eyebrow vents, a venting drip edge, a shingle-over intake vent, wind turbines, or power vents. All are good alternatives if you cannot install soffit vents; however, a very important factor for good ventilation is good insulation.

How do you tell if your attic is properly ventilated?

1. Look at your eaves and roof. …
2. Touch your ceiling on a warm, sunny day. …
3. Thick ridges of ice on your eaves in winter are a sign of poor attic ventilation. …
4. Warm air that escapes living space also carries moisture that will condense on rafters or roof sheathing.

Are soffit vents required by code?

What does the code require? If you plan to install insulation on your attic floor, then most building codes require that the attic be vented. … If a roof has only soffit vents and no ridge vents, most codes require 1 square foot of net free ventilation area for every 150 square feet of attic floor area.

Do soffit vents need screens?

The holes in the continuous soffit venting should be small enough to prevent insects from entering. Aluminum soffits, with continuous venting, were intended to be installed without screening.

How far should soffit vents be apart?

How Far Apart Should Soffit Vents Be? The ideal space between soffit vents will depend on your roof’s total square footage (or attic) and the number of soffit vents used to ventilate it. It’s recommended that all soffit vents be spaced at equal distances from one another on the sides of your roof under the eaves.

Should I use vented or solid soffit?

Vented Soffit Panels Increase Air Circulation Due to the small perforations, vented soffit panels increase the air circulation of the attic area. Solid soffit panels, on the contrary, effectively seal off the attic space from fresh air, causing the air inside to become trapped and grow stale.

Do eaves need vents?

Therefore, eaves ventilation must be provided via vented soffits or over-fascia ventilation. … Vented soffits or over fascia vents are not required on properties that were built prior to the Building Regulations coming into enforcement or those that were originally constructed without ventilation.

How do you improve soffit ventilation?

1. Assess Your Needs. Before you make any changes, it’s important to determine if your attic actually needs additional ventilation, and if so, how much. …
2. Insert Roof Vents. …
3. Add Soffit Vents. …
4. Install Gable Vents. …
5. Use Fans to Improve Airflow.

What happens if a roof is not vented?

They say that poor or non-existent ventilation might cause attic temperatures to rise to 150 degrees or higher in the summer. That can lead to damaged shingles and other roofing materials as well as a buildup of condensation and development of mildew and mold.

What kind of roof vents are best?

In most cases, we recommend soffit vents for intake and a ridge vent for exhaust. For homes that cannot have a ridge vent, box vents are generally the second best option for exhaust. And for homes that cannot have soffit ventilation, you will find that fascia vents to be your second best bet.
