What is STP port

The Spanning Tree Protocol (STP) is a network protocol that builds a loop-free logical topology for Ethernet networks. … RSTP provides significantly faster recovery in response to network changes or failures, introducing new convergence behaviors and bridge port roles to do this.

What is STP port priority?

When a loop occurs in a network topology, spanning tree can use the port priority value for the ports to decide which port must be put in forwarding state. The port priority is only used to determine the topology if the loop in the network cannot be resolved using bridge IDs or path cost.

Which port is blocked in STP?

A port is considered blocked when user data is prevented from entering or leaving that port. This does not include bridge protocol data unit (BPDU) frames that are used by STP to prevent loops. Blocking the redundant paths is critical to preventing loops on the network.

What are the five STP port states?

Blocking State : Switch port enters the blocking state at time of election process, when a switch receives a BPDU on a port that indicates a better path to the Root Switch or if a port is not a Root Port. …
Listening State : …
Learning State : …
Forwarding State : …
Disabled State :

What is difference between STP and RSTP?

The main difference between Rapid Spanning Tree Protocol (RSTP IEEE 802.1W) and Spanning Tree Protocol (STP IEEE 802.1D) is that Rapid Spanning Tree Protocol (RSTP IEEE 802.1W) assumes the three Spanning Tree Protocol (STP) ports states Listening, Blocking, and Disabled are same (these states do not forward Ethernet …

What is STP and its types?

1. 802.1D – This is also known as CST (Common Spanning Tree). It is a spanning tree standard developed by IEEE which elects only one root bridge per whole topology.

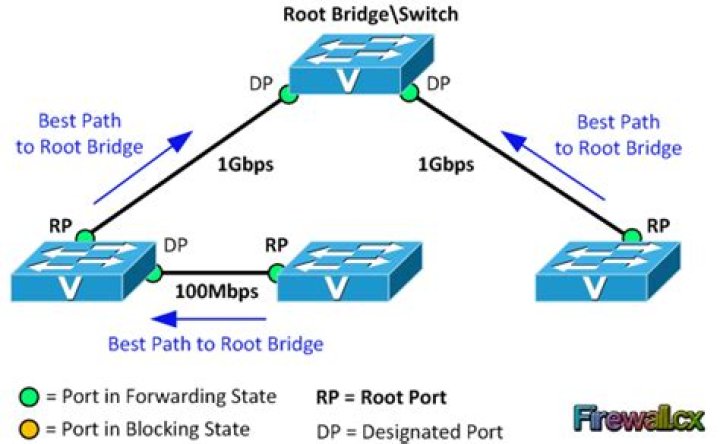

How does STP elect root port?

Lowest bridge ID (Priority:MAC Address) switch becomes the Root-Bridge.
Each non-root bridge should have ONE root port (RP) which is the port having lowest path-cost to Root Bridge.
All ports in Root Bridge become Designated Ports (DP)
Each segment should have one Designated Port (DP)

What does Bpdu mean?

(Bridge Protocol Data Unit) A spanning tree protocol (STP) message unit that describes the attributes of a switch port such as its MAC address, priority and cost to reach. BPDUs enable switches that participate in a spanning tree protocol to gather information about each other.

How does STP work in networking?

all switches in a network elect a root switch. …
all other switches, called nonroot switches, determine the best path to get to the root switch. …
on the shared Ethernet segments, the switch with the best path to reach the root switch is placed in forwarding state.

What is non designated port?

Non-Designated Port: Non-designated port is the port that is selected as having the higher port cost than the designated port. Non-designated port would be marked as blocking port and will not forward any frames.

Article first time published on

What port is FTP?

FTP is an unusual service in that it utilizes two ports, a ‘data’ port and a ‘command’ port (also known as the control port). Traditionally these are port 21 for the command port and port 20 for the data port.

What is difference between RSTP and MSTP?

RSTP provides rapid convergence of the spanning tree. MSTP, which uses RSTP to provide rapid convergence, enables VLANs to be grouped into a spanning-tree instance, provides for multiple forwarding paths for data traffic, and enables load balancing.

What is RSTP in CCNA?

Rapid Spanning Tree Protocol (RSTP) is a network protocol that ensures a loop-free topology for Ethernet networks. … RSTP defines three port states: discarding, learning, and forwarding and five port roles: root, designated, alternate, backup, and disabled.

How is RSTP faster than STP?

The STP process to determine network state transitions is slower than the RSTP process because it is timer-based. A device must reinitialize every time a topology change occurs. … RSTP converges faster because it uses a handshake mechanism based on point-to-point links instead of the timer-based process used by STP.

What is STP and RSTP in networking?

The Spanning Tree Protocol (STP) is a network protocol that builds a loop-free logical topology for Ethernet networks. The basic function of STP is to prevent bridge loops and the broadcast radiation that results from them. … In 2001, the IEEE introduced Rapid Spanning Tree Protocol (RSTP) as 802.1w.

What is BPDU packet?

Acronym for bridge protocol data unit. BPDUs are data messages that are exchanged across the switches within an extended LAN that uses a spanning tree protocol topology. BPDU packets contain information on ports, addresses, priorities and costs and ensure that the data ends up where it was intended to go.

What is STP BPDU guard?

BPDU Guard feature protects the port from receiving STP BPDUs, however the port can transmit STP BPDUs. When a STP BPDU is received on a BPDU Guard enabled port, the port is shutdown and the state of the port changes to ErrDis (Error-Disable) state.

What is root guard?

Root guard is an STP feature that is enabled on a port-by-port basis; it prevents a configured port from becoming a root port. Root guard prevents a downstream switch (often misconfigured or rogue) from becoming a root bridge in a topology. … Root guard is enabled with the interface command spanning-tree guard root.

Why do we use STP?

STP most commonly is used when performing calculations on gases, such as gas density. The standard temperature is 273 K (0° Celsius or 32° Fahrenheit) and the standard pressure is 1 atm pressure. This is the freezing point of pure water at sea level atmospheric pressure.

What are the three different types of STP ports?

The original STP (802.1D) It is also referred to as the Common STP, standardized as 802.1D. …
Per VLAN spanning tree (PVST) and PVST+ It is the advancement or the modification by Cisco to the 802.1d standard. …
Rapid Spanning Tree Protocol (RSTP) …
Rapid PVST and Rapid PVST+

What is STP in networking PDF?

Spanning Tree Protocol (STP) was developed to prevent the broadcast storms caused by switching loops. STP was originally defined in IEEE 802.1D. Switches running STP will build a map or topology of the entire switching network.

Where STP protocol is used?

Spanning Tree Protocol (STP) is a link management protocol that provides path redundancy while preventing undesirable loops in the network. When it comes to ethernet networks, only one active path can exist between two stations in order for them to function properly.

What role does STP play in the LAN environment?

STP can help prevent bridge looping on LANs that include redundant links. … STP monitors all network links, identifies redundant connections and disables the ports that can lead to looping.

What is layer 2 switching loop?

A switching loop or bridge loop occurs in computer networks when there is more than one layer 2 path between two endpoints (e.g. multiple connections between two network switches or two ports on the same switch connected to each other).

Is BPDUs a broadcast?

Bridge Protocol Data Units (BPDUs) are messages exchanged between the switches inside an interconnected redundant Local Area Network (LAN). … The basic purpose of the Bridge Protocol Data Units (BPDUs) and the Spanning Tree Algorithm (STA) is to avoid Layer 2 Switching loops and Broadcast storms.

What is the use of BPDUs?

A bridge protocol data unit (BPDU) is a data message transmitted across a local area network to detect loops in network topologies. A BPDU contains information regarding ports, switches, port priority and addresses. BPDUs contain the information necessary to configure and maintain spanning tree topology.

Which ports are designated?

All ports on a Root Bridge (Root Switch) are designated ports. If one end of a LAN segment is a Designated Port, the other end is referred to as a Non-Designated Port (marked as NDP) if it is not a Root Port. A root port can never be a designated port.

What ports are blocked?

PortTransportProtocol110TCPPOP3135 -139TCP/UDPNetBIOS161 -162TCP/UDPSNMP445TCPMS-DS-SMB

What port number is 21?

Port 21 is commonly associated with FTP. FTP has been assigned to Port 21 by the Internet Assigned Numbers Authority (IANA). The IANA also oversees global IP address allocation. FTP is often thought of as a “not secure” file transfer protocol.

What is port 21 and 20 for FTP?

The Protocol Port numbers 21 and 20 are used for FTP. Port 21 is used to establish the connection between the 2 computers (or hosts) and port 20 to transfer data (via the Data channel).

What port does FileZilla use?

Obviously, if you want to connect to any server, you need to tell your firewall that FileZilla should be allowed to open connections to other servers. Most normal FTP servers use port 21, SFTP servers use port 22 and FTP over TLS (implicit mode) use port 990 by default.
