What is the B wire on a thermostat

O, B, O/B: These wires are responsible for switching the changeover valve in a heat pump system. The O wire reverses the valve from heating to cooling, and the B wire switches the valve from cooling to heating.

What is the B terminal on a thermostat?

W/B: The W/B terminal controls the heat relay or valve. When the thermostat calls for heat, a signal is sent to power up the furnace and the blower fan or the boiler, heating your home.

What is the B wire on a Trane thermostat?

In most thermostat wiring hookups the white wire is used to switch heat on or off from the thermostat. C – common 24VAC power used to power the thermostat. Trane uses B for this connection. In most thermostat wiring hookups the yellow wire is used to switch cooling on or off from the thermostat.

What color is b wire on thermostat?

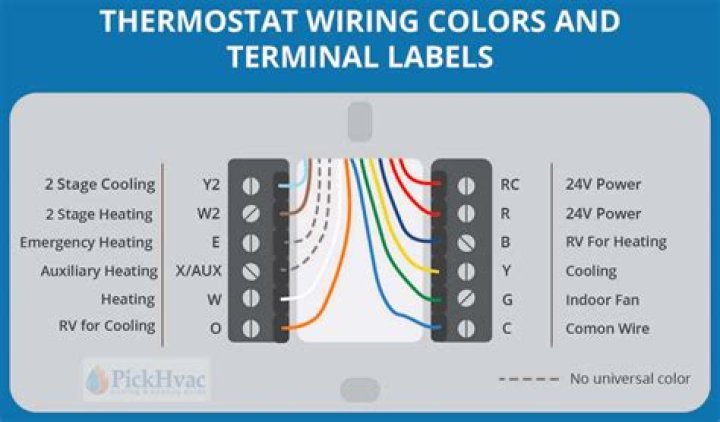

MarkingWire Color CodeDescriptionY2YellowSecondary cool call relayGGreenFan relayOOrangeChange-over relay to cool relayBBlueChange-over relay to heat relay

What color is the B wire?

This wire goes to the outside heat pump condenser, for reversing valve control. Finally, this is for heat pump thermostats. Orange Wire for O and Dark Blue Wire for B, depending on the installer of the heat pump and the manufacturer.

Is my heat pump O or B?

O stands for orange and B for dark blue. The O and B terminals are for heat pumps; the B terminal is used in conjunction with Rheem, Ruud, or any other manufacturer that energizes the reversing valve in the heat pump’s heating mode.

Is B wire the same as C wire?

The common wire, usually labeled C, should go in the C Terminal of the Zen Thermostat. A wire labeled O, B, or O/B is used to control whether a heat pump is in heating or cooling mode. However, on some thermostats, a wire labeled B is the common wire C. In most cases, the common wire is labeled C.

What do the different color wires mean on a thermostat?

This is the most typical thermostat wiring style, and it applies to systems that regulate both heat and air conditioning. The wires are typically arranged as follows: red for 24-volt hot, white for heat, yellow for cooling, green for the fan, and blue for common (although the common wire may be a different color).

What color is the C wire?

Blue wires are also called “C” wires because they are the Common wire. C wires are necessary for any “smart” thermostat that needs to be connected to a power source 24/7, regardless of your heat pump type.

What is the white wire on thermostat?

The white wire underneath your thermostat connects to your heating system. It terminates at your air handler or furnace. The white wire connects to terminal W in industry-standard thermostats.

Article first time published on

What wire controls heat on thermostat?

Thermostat Wiring Tips The W wire is connected to your heating system. If your thermostat controls your heat, you will have a white wire. The Y wire is yellow and connects to your air conditioning compressor. The G wire is green and connects to the fan.

What does the RH wire do on a thermostat?

The RH wire refers to “red heating” which means that this is the connection you need in order to power the heating system of your air conditioning unit. Yes, even your air conditioning unit has a heating system to keep the temperature in balance.

How many wires does a thermostat need?

The most basic thermostat has 2 wires; usually a red and a white wire. Two wire thermostat wiring is used for furnaces only and usually doesn’t need a “C” or “Common” wire. That’s why we only need two wires: Red wire for power (24h).

What is Pek thermostat?

If you’re lacking a C wire and have at least four wires at your thermostat to work with (refer to this article if you only have two wires), you’ll want to install the Power Extender Kit (PEK). The PEK gets installed at your furnace control board and is wired in with your existing thermostat wires to create a C.

What color is C wire on thermostat?

These are the most common colors and the labels used for thermostat wires: Blue or Black – C – The common wire. Red – R – 24 VAC power from the transformer in your furnace.

What happens if you wire a thermostat wrong?

Potential consequences of improper installation could include: Electric shock. Blowing a circuit breaker. Damaging the thermostat unit, the electrical system or even the AC/furnace unit itself.

What is B on heat pump?

The O/B terminal is for heat pump systems and is used for the reversing valve. … If the “B” option/position is selected the reversing valve defaults to the cooling mode. It is extremely import that the correct mode is selected. If you get it reversed the heat pump will cool in the heat mode, and heat in the cool mode.

What is W on a thermostat?

W=the heat load. On a call for heating the thermostat closes a switch between R and W, sending 24v to energize the heating circuit.

Where do the red and white wires go on a thermostat?

The white wire is usually connected to the “W” terminal. The thermostat acts as a switch, like a light switch. The Red to white switch turns on the heat. Red to Green turns on the fan, Red to Yellow turns on the air conditioner.

How do you identify C wire?

It is easy to see if you already have a c-wire connected to your system. Simply remove your current thermostat face from its baseplate and look for the terminal labeled with the letter “c.” If this terminal has a wire attached to it, you have an active “c-wire.”

What color wire goes where on a Honeywell thermostat?

Meaning of Wiring Terminal Letters W (white) controls the auxiliary heating elements. Y (yellow) controls the compressor on the cooling system. G (green) controls the fan. C (blue or black) provides a return path to the transformer.

Where does the C-wire go on a furnace?

If your system has a C-wire, it might be in use or just tucked away behind your current thermostat. If your system doesn’t have a C-wire, you’ll need to run a new cable from your furnace to your thermostat to install most of the modern smart thermostat models.

What is the Blue C-wire on a thermostat?

The blue wire, or C-wire, is known as the common wire. It’s there to provide power to the thermostat. Older thermostats usually don’t have a C-wire because they either don’t need power or, if they do, they get it from a battery.

Does R go to RC or RH?

Here are some general guidelines: An R wire can go into a Nest Learning Thermostat’s Rc or Rh connector. The Nest Thermostat E only has an R connector, which is typically where an R wire would go. … These are not jumper wires, and you can insert the Rc wire into the Rc connector and the Rh wire into the Rh connector.

Is r the same as Rh on thermostat?

The “R” still indicates it’s a hot wire and terminal connection, and the “H” simply means heating. The RH wire connects to the RH terminal and controls the heating part of the thermostat.

Why RH wire has no power?

To fix an E74 error or no power to the Rh wire error on your Nest thermostat, check for loose connections and fix them. If that does not work, clean out the drain pipes and check if the condensate pump associated with your HVAC is clogged.

What does no power to R wire mean?

This is by far the most common error to encounter and if you get the error message “E195 – No power to R detected”, there can be a variety of causes but is most likely caused by a tripped float switch and you don’t want to ignore it!

Does a thermostat need a neutral?

Typical thermostat connections In all cases, the thermostats is a simple switch, connecting a switched output to live when heat is required. Where the thermostat contains an accelerator heater or electronics, a neutral connection is also required.

How does the Pek work?

But what exactly is the PEK, and how does it work? The Ecobee Power Extender Kit works by connecting to your home’s existing thermostat wires to create a complete circuit; this provides continuous 24-volt AC power to your thermostat for homes that don’t have a C wire.

How does nest work without C wire?

In a system with a C-wire, the Nest charges itself from the C-wire’s current and all is fine. In a system without a C-wire, though, Nest recharges its battery when the heating or cooling runs. It diverts a little bit of the power to itself and charges its own battery.
