What is the cradle on a vehicle
By Christopher Green

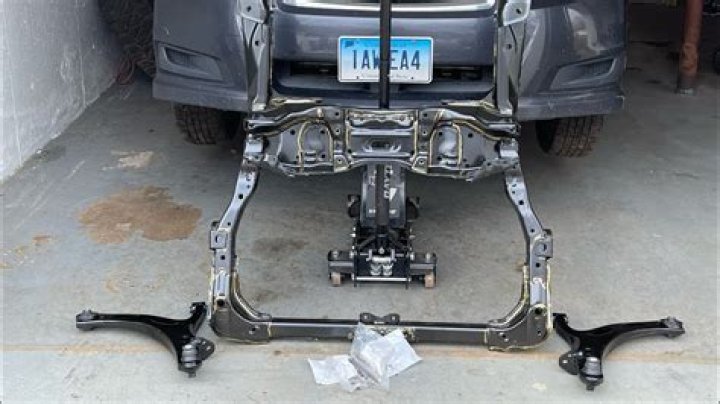

The cradle, or sub-frame, is a structural component that holds everything together. This essential part helps to evenly distribute weight and helps to reduce vibrations from the rest of your vehicle.
What does an engine cradle do?
Engine Cradle Alignment The engine cradle has both lower control arms attached. These control arms affect the vehicle’s alignment angles. A crooked or misaligned engine cradle will affect a vehicle’s camber angle. Camber angles result in pull and tire wear.
What is a cradle frame?
Single cradle frame It comprises steel tubes of various diameters and strength ratings welded together to form a structure that holds together the various components of a motorcycle. Single cradle frames are also often referred to as single downtube frames.
Can you drive a car with a bent cradle?
Yes, it is almost always physically possible to drive a car with a bent frame. As far as safety, drive ability, and cost effectiveness, sometimes not so much. A bent frame will in most cases still allow you to operate the vehicle but; 1.How much does a new subframe cost?
“You’ve got to figure about $300 to $600 for a decent used part, and anything from $300 to $1,000 in labor to replace it; plus whatever things break or die or have to be replaced during the swap – including fluids, and exhaust components.
Is Cradle same as subframe?
The subframe is the structure below the frame that supports the axle, suspension and powertrain. For internal combustion engines, in the front, it is often referred as the engine cradle, or in some cases, the K-frame.
How do you know if your engine cradle is bad?
One of the most common symptoms associated with worn engine mounts are impact noises coming from the engine bay. Worn, damaged, or broken motor mounts can cause clunking, banging, and other impact type sounds as a result of the weight of the engine shifting excessively to the point of contact.
How much does it cost to fix a bent frame?
The average cost of frame straightening is $800. But the cost for straightening the frame on a car or truck is entirely dependent on how severe the damage is and how many hours it will take to straighten the frame out. Generally speaking, the cost of straightening per hour is $100.How do you know if your car has structural damage?
- Visible Bending Or Damage. After a serious accident, you may be able to see that the frame of your car has been bent or damaged. …
- Poor Car Alignment. …
- Unusual Noises. …
- Uneven Wear On Shocks & Suspension. …
- Uneven Wear On Tires. …
- Incorrect Fit Of Other Parts. …
- Poor Wheel Tracking.
- Alignment Is Off. One of the main symptoms of a bent frame is the wheels are misaligned. …
- Wheels Track Sideways. A similar issue can come with the wheels. …
- Damage Is Visible. …
- Components Don’t Fit Tightly. …
- Engine Produces Unusual Noises.
What is a cradle on a truck?
Cradle trucks are designed to hold and transport pipes, bar stock, conduit, tubing, and more.
What is cradle alignment?
A misaligned or loose engine cradle affects a FWD vehicle’s wheel alignment angles. The engine cradle has the lower control arms attached. Inspect the cradle for damage or excessive wear, especially the lower control arm bushings.
Why do cars have subframes?
The purpose of using a subframe in an automobile is to distribute high local loads over a wider area of the body structure (most relevant in thin-walled monocoque body designs) and to isolate vibration and harshness from the rest of the body. The subframes are bolted or welded to the vehicle body.
What is Chrome subframe?
Subframe is a separate process for websites loaded through an iframe. You can double-click on subframe and then the tab with this subframe will become active. You can also complete subframe to free memory. If I am not mistaken, the subframes can be part of extension.
Is a subframe worth replacing?
Despite what you read on the internet, you should not attempt to repair a severely rusted subframe. The subframe is a structural part of the vehicle—and patching it up can compromise its integrity. When there’s severe rust, replacing the subframe is the only recommended method of repair.
Can you drive with a cracked subframe?
It’s probably not safe to drive with a cracked sub frame. I’d keep it to speeds under 30-35 mph. Everyone has different tolerances for risk, but it were me, I’d do a claim through insurance and make sure its done right the first time. The risk is too high (IMO) to save a couple of hundred dollars.
How often do motor mounts need to be replaced?
Usually, engine mounts should last between at least 5-7 years, depending on the application. Still, we recommend getting them checked regularly when the vehicle is being serviced or when any other work is being carried out. This should maintain your engine and keep your driving experience as smooth as possible.
What are the signs of bad transmission mount?
- Excess vibration while the engine is running.
- Clanking or clunking noises when shifting gears.
- Transmission is difficult to put into gear or shift.
How much does it cost to replace a motor mount?
The average replacement cost for an engine mount is anywhere from $200 to $600. The cost of the parts and labor can vary, depending on the make and model of your vehicle. The parts cost will likely be between $50 and $150, while the labor costs will be between $150 and $450.
What are subframe connectors?
Subframe connectors are steel tube reinforcements that are welded to the bottom of the car. They connect the stock front and rear subframes together. This strengthens the flexible floorpan between the two subframes, and greatly increases the rigidity of the Mustang’s unibody chassis.
What is a door subframe?
Definition of subframe : a secondary frame especially : one that is used for the attachment and support of a finish frame (as of a door or window) or of finish panels (as of a wall) Strictly speaking, the vertical members of a curtain wall’s subframe are called mullions, while horizontal members are called transoms. —
Can you fix structural damage on a car?
It’s possible for a trained mechanic to repair a car that’s had structural damage. Though damaged sections of a unibody frame can be replaced, driving a vehicle that’s undergone structural damage should be considered a safety risk. What’s more, the underlying damage can cause additional mechanical problems later on.
What is considered major damage to a vehicle?
Insurance Companies’ Idea of “Major” Damage Leaking coolant. Deployed airbags. Damaged suspension. Missing lights.
Is car totaled if frame is damaged?
However, frame damage does not guarantee the vehicle is considered a total loss. … However, if the cost of necessary repairs is less than the value of the vehicle, it is not officially considered to be totaled as a frame shop can perform the repair and get the automobile back on the road.
What causes frame damage to a car?
Typically frame damage is caused by a collision; whether with an object or another vehicle. While on the surface you might have just a few dents or scratches, underneath you could find that your vehicle’s frame has actually been damaged which could have repercussions later.
Should you buy a used car with frame damage?
In short, unless you have a ton of money to blow on preserving a one-off edition of some sports or luxury car from the 1960s, it’s generally good practice to avoid buying a car with structural damage. … Frame damage can be fixable but would likely costs a fortune, and generally isn’t worth the money.
Can you sell a car with frame damage?
In any case, if you wish to sell your frame damaged car to someone, you are obligated to disclose all of the damage the vehicle has and if anything goes unknown you may be held liable even after you sell the vehicle.
How much does it cost to fix the frame of a car?
This is technically considered frame damage but the cost of vehicle frame repair without paintwork could run you from $600-$1000.
Is a bent chassis a write off?
A car is generally classed as a statutory write-off because it would be unsafe to repair it. This might be due to structural damage (like a bent chassis) or extensive damage. If you buy a car that’s a statutory write-off, you won’t be able to repair it or get it road registered.
What does a bent frame cause?
A bent frame will put more pressure on some parts of your suspension than others, which causes the shocks and suspension system to wear out unevenly. If you have a problem with your suspension that keeps reoccurring, you may have a bent frame that is causing the problem.
What does cradle mean in history?
2a : the earliest period of life : infancy from the cradle to the grave. b : a place of origin the cradle of civilization. 3 : a rocking device used in panning for gold.
