What is the difference between EAP and PEAP

With PEAP-MSCHAPv2, the user must enter their credentials to be sent to the RADIUS Server that verifies the credentials and authenticates them for network access. EAP-TLS utilizes certificate-based authentication. … The EAP-TLS process has almost half as many steps to authenticate.

What is the difference between PEAP and EAP TTLS?

PEAP is a SSL wrapper around EAP carrying EAP. TTLS is a SSL wrapper around diameter TLVs carrying RADIUS authentication attributes.

Why is PEAP less secure than EAP-TLS?

If you have weak passwords or careless users, PEAP can be a serious security risk. It is obviously less secure than EAP-TLS. EAP-TLS requires someone to obtain a certificate first so they would need to be on your network first, have an authenticated account to connect to a certificate server and obtain a certificate.

What is PEAP used for?

PEAP (Protected Extensible Authentication Protocol) provides a method to transport securely authentication data, including legacy password-based protocols, via 802.11 Wi-Fi networks. PEAP accomplishes this by using tunneling between PEAP clients and an authentication server.

What is the main advantage of EAP fast over EAP-TLS and PEAP?

FAST was created by Cisco Systems as an alternative to PEAP that allows for faster re-authentications and supports faster wireless roaming. Just like PEAP, FAST forms a TLS outer-tunnel and then transmits the client credentials within that TLS tunnel.

What is Cisco PEAP?

PEAP is an 802.1X authentication type for wireless LANs (WLANs). PEAP provides strong security, user database extensibility, and support for one-time token authentication and password change or aging. PEAP is a component of the Cisco Wireless Security Suite.

What is wpa2 PEAP?

PEAP-MSCHAPv2 is a credential-based authentication system that requires a valid set of credentials to connect. To authenticate, an approved network user will connect to the secure SSID and promptly send their username and password.

What is WPA2 used for?

WPA2 is a type of encryption used to secure the vast majority of Wi-Fi networks. A WPA2 network provides unique encryption keys for each wireless client that connects to it.

How does EAP PEAP work?

Overview. PEAP is similar in design to EAP-TTLS, requiring only a server-side PKI certificate to create a secure TLS tunnel to protect user authentication, and uses server-side public key certificates to authenticate the server. It then creates an encrypted TLS tunnel between the client and the authentication server.

Does PEAP require certificate?

PEAP-MSCHAPV2 and PEAP-EAP-GTC—Requires two certificates: a server certificate and private key on the RADIUS server, and a trusted root certificate on the client. The client’s trusted root certificate must be for the CA that signed the RADIUS server’s certificate.

Article first time published on

What are PEAP credentials?

PEAP (Protected Extensible Authentication Protocol) is a version of EAP, the authentication protocol used in wireless networks and Point-to-Point connections. PEAP is designed to provide more secure authentication for 802.11 WLANs (wireless local area networks) that support 802.1X port access control.

How secure is PEAP?

PEAP stands for Protected Extensible Authentication Protocol. … EAP-PEAP is the most common and widely deployed EAP used on wireless networks world wide. It is also very secure, if configured and deployed properly. EAP-PEAP has a few different versions.

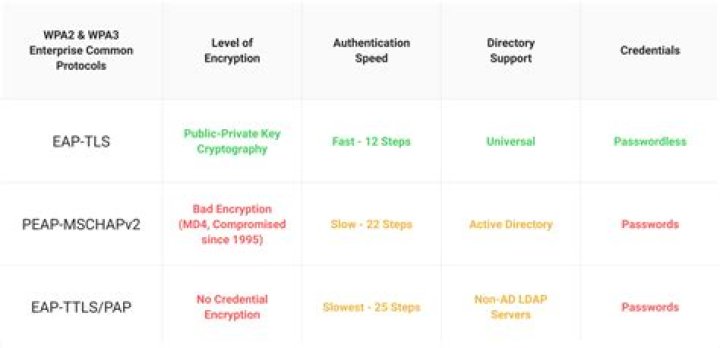

Which is more secure EAP-TLS or PEAP?

While both EAP methods protect the data being sent over-the-air, they differ in overall security, efficiency, and user experience. EAP-TLS with certificate-based authentication is simply more secure and offers a superior user experience with benefits in efficiency and protection.

What are three requirements of EAP-TLS?

EAP-TLS authentication involves 3 parties, the supplicant (user’s device), the authenticator (switch or controller), and the authentication server (RADIUS server).

What are the three versions of EAP used within wireless networks?

EAP-TLS (Transport Layer Security) …
EAP-TTLS (Tunneled TLS) …
LEAP (Lightweight EAP) …
PEAP (Protected EAP) …
EAP-FAST (Flexible Authentication via Secure Tunneling) …
EAP-SIM (Subscriber Identity Module) …
EAP-MD5 (Message Digest 5)

What is Radius Federation?

Federation is when you can link a user’s identity across multiple authentication systems. This is commonly used if you’re at a third-party location, and you would like to authenticate using credentials that were created for a different location. RADIUS Federation commonly uses 802.1X as the authentication method.

What does TKIP and AES stand for?

TKIP (short for Temporal Key Integrity Protocol) is an encryption method. TKIP provides per-packet key mixing a message integrity and re-keying mechanism. AES (short for Advanced Encryption Standard) is the Wi-Fi® authorized strong encryption standard.

What is the difference between AES and TKIP?

The short version is that TKIP is an older encryption standard used by the WPA standard. AES is a newer Wi-Fi encryption solution used by the new-and-secure WPA2 standard.

Does PEAP provide mutual authentication?

EAP- TTLS and PEAP maintain similar security properties to TLS like mutual authentication and a shared secret for session WEP key.

What is Cisco Systems Inc on my computer?

Share: Cisco Systems is an IT and networking brand that specializes in switches, routers, cybersecurity, and IoT and whose logo seems to be on every office telephone or conference hardware.

What is Cisco EAP?

Extensible Authentication Protocol (EAP) is an authentication protocol that supports multiple authentication methods, passwords, RADIUS, and so on. Lightweight Extensible Authentication Protocol (LEAP) is the Cisco authentication protocol. LEAP is based on EAP, an extension to PPP.

What are Cisco products?

Products in this category are Cisco’s range of routers, switches, wireless systems, security systems, WAN acceleration hardware, energy and building management systems and media aware network equipment. unified computing, unified fabric, data centre switching, storage networking and cloud computing services.

How do I connect to PEAP WiFi?

Click “Settings” then select “Wireless & Networks” and “WiFi settings”.
If WiFi is not enabled, please enable it.
Select “eduroam”.
You may now be asked for a password to protect the credential storage on your device. …
For “EAP method” select “PEAP”.

Is PEAP a word?

initialism Protected Extensible Authentication Protocol. A protocol proposed by Microsoft , Cisco and RSA Security for 802.1X authentication on wireless LANs ( WLANs ).

What is a CA certificate WiFi?

In the Wi-Fi CERTIFIED Passpoint® certification program, mobile devices use Online Sign-Up (OSU) to accomplish registration and credential provisioning to obtain secure network access. A CA is a collection of computer hardware, software, and the people who operate it. …

Is WPA2 same as WiFi password?

When connecting to a WPA2-guarded WiFi, you need to enter the WPA2 password first. Once you connect successfully, your device can access the internet for however long. WPA2 passphrase and wifi passwords are the same.

How do I change my router to WPA2?

While you’re logged into your router’s settings, find the wireless network configuration section on the wireless security or wireless network page.
Select the WPA or WPA 2 option.
Click “Save” and “Apply”. You might need to reboot the router for the new settings to take effect.

What is WPA2 AES or WPA3?

The 128-bit AES encryption employed with WPA2 is still in effect with WPA3, but the enterprise version requires 192-bit AES support. It’s optional for the personal edition. WPA3 uses the Simultaneous Authentication of Equals (SAE) to replace WPA2’s Pre-Shared Key (PSK) exchange protocol.

How do I get a PEAP certificate?

Select Microsoft: Protected EAP (PEAP), and click OK.
Select Microsoft: Protected EAP (PEAP), and click Edit to open the Properties window.
Click the Certificate issued to pop-up menu, and choose the name of the certificate you noted earlier.

What certificate does NPS use?

With PEAP-MS-CHAP v2, PEAP-TLS, or EAP-TLS as the authentication method, the NPS must use a server certificate that meets the minimum server certificate requirements.

Does Windows 10 support EAP TLS?

In the Windows 10 November update, EAP was updated to support TLS 1.2. This implies that, if the server advertises support for TLS 1.2 during TLS negotiation, TLS 1.2 will be used.
