What is the gasket between transmission and transfer case

By David Edwards February 13, 2026

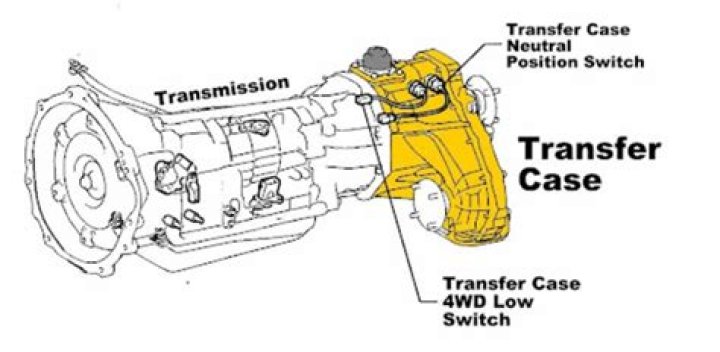

Usually the gaskets between the transmission and the transfer case are known as the transfer case gasket or the transfer case adapter gasket. The gasket may be listed as the type of transfer case and then followed by the words adapter and gasket.

What is the name of the gasket that is between the engine and transmission?

The rear main seal keeps oil sealed inside the rear of the engine, where the crankshaft connects with the transmission. It can be expensive to repair, often $600 or more, because it typically involves removing the transmission and, in some cases, all or part of the engine.

Can a transfer case leak transmission fluid?

Fluid leaking from the transfer case If the rubber transfer case seals dry out or crack they can leak gear oil or transmission fluid. A fluid leak can put the transfer case at risk of suffering internal damage due to low lubrication.

What does transfer case gasket do?

This is the gasket that is installed between the transmission rear output adapter and the transfer case to seal and prevent leaks. … The 4WD transmission output adapter does not have an output shaft seal, so a gasket is needed to prevent the transmission fluid from leaking.

What is a front transmission seal?

What are Transmission Seals? The input shaft seal, also called the front transmission seal, prevents fluid from slipping past the input shaft. The input shaft inserts into the torque converter or clutch disk, depending on whether the vehicle is equipped with an automatic or manual transmission.

How much does it cost to replace gasket between engine and transmission?

This will degrade over time and need replacement, and we are going to walk you through replacement process. It can cost anywhere from $200 to $1,500 to get the transmission pan gasket changed out. The labor can start around $150 for less expensive cars and go up to $1,450 for some high-end vehicles.

Is there a gasket between gearbox and engine?

Leak location The rear main seal in your vehicle is at the back of the engine and seals the crankshaft as it exits the engine. Your vehicle’s flywheel or flexplate is then bolted onto the crankshaft flange sandwiching your rear main seal between your engine and transmission.

What happens if transfer case leaks?

If the seals leak, fluid escapes and cannot properly lubricate the internal components of the transfer case. With time and use the parts inside will wear out and overheat. This can render the transfer case useless and the vehicle will no longer be able to shift into four-wheel drive.

Why would a transfer case leak?

The transfer case is a self-contained unit that has its own fluid. A leak could be from a bad seal or an issue locked within the case itself. … These seals can dry up, wear out and break. Once this occurs, the fluid can no longer lubricate the parts within the transfer case.

What's the difference between transmission and transfer case?

With an all-wheel-drive system, power is transmitted from the transmission to a center differential. … From the transfer case, the power is transferred directly to the rear differential as well as the front differential. The main difference between the two drive options is in your involvement as the driver.

Article first time published on

How do I know if my transfer case is bad?

Shifting Issues. …
Hard to stay in 4WD? …
4WD Won’t Engage or Disengage. …
Fluid Puddle Under the Transfer Case’s Location. …
Strange Grinding, Growling or Humming Noises. …
Possible Causes of a Bad Transfer Case. …
So why S&G?

How do I know if my transmission seal is bad?

Check the Dipstick. …
Dashboard Warning Light. …
Fluid Leaks. …
Grinding Gears. …
Clunking Sounds. …
Strange Vibration. …
Burning Smell. …
Delay In Acceleration.

How many seals are there in a transmission?

Seals and Gaskets There are two main external seals: the front seal and the rear seal. The front seal seals the point where the torque converter mounts to the transmission case. This seal allows fluid to freely move from the converter to the transmission but keeps the fluid from leaking out.

How much does it cost to replace a seal on a transmission?

The cost to fix a transmission fluid leak in a vehicle can be as little as $150 to replace a seal and around $1,000 to for a new torque converter.

Does the transmission have a gasket?

There are various seals and gaskets throughout the transmission system. This might include the rear main engine seal and the front input seal. The rubber may deteriorate or something could come out of alignment and cause a transmission fluid leak.

Is Blue Devil bad for your engine?

BlueDevil contains no solid or particulate matter, and will not clog or harm your engine. It bonds to metal, aluminum, cast, alloy, or plastic, and it’s safe and easy to use.

Why does my car leak oil when parked?

Oil leaks manifest in many different ways, but if your car is leaking oil when parked, the vast majority of leaks are due to degraded engine gaskets, oil pan leaks, or bad oil seals and connections. … The oil drain plug, located at the base of the oil pan, must be loosened and removed in order to drain the old oil.

How long does a transmission gasket last?

At a minimum, you should expect your transmission rebuild seals to last as long as the unit’s original seals — that is, for about 100,000-150,000 miles. However, in order to achieve that kind of success with an overhaul kit, you have to be absolutely sure of the quality of the seals inside.

How long should a transmission pan gasket last?

Transmission pan gaskets are replaced once every 40,000-60,000 miles on vehicles with service intervals call for regular transmission fluid changes.

Should I replace rear main seal when replacing transmission?

yup, dont fix it unless its broke!

Can you drive in 2wd with a bad transfer case?

Should you drive your car with a bad transfer case? Driving your car with a bad transfer case is a bad idea. If you continue to drive with a transfer case that has a serious mechanical problem, you could destroy it beyond the point of repair, and possibly damage your transmission, driveshafts and axles in the process.

What happens if transfer case has no fluid?

As transmission fluid escapes and overall fluid levels drop, your transfer case ends up without the lubrication it needs. This loss of lubricant increases metal-on-metal contact, thus increasing the volume of the sounds produced by the transfer case.

What kind of fluid does a transfer case take?

Most transfer cases are filled with an automatic transmission fluid, which is usually red in colour. Others use a thicker gear oil, and some use a specialized fluid that is specifically made just for that transfer case.

Can a bad transfer case cause transmission problems?

Can Bad Transfer Case Damage the Transmission? There are instances where a catastrophic transfer case failure can damage other parts of your vehicle, including the transmission. It’s always a good idea to address any known issues with your vehicle as soon as possible to avoid additional problems.

How do I know if my transfer case needs oil?

Difficulty shifting gears.
Grinding noises coming from underneath the vehicle.
Vehicle jumps in and out of four-wheel drive.

How much does it cost to rebuild a transfer case?

Transfer Case Replacement Cost – RepairPal Estimate. Labor costs are estimated between $432 and $545 while parts are priced at $2,075. This range does not include taxes and fees, and does not factor in your specific vehicle or unique location. Related repairs may also be needed.

How often should I change transfer case fluid?

Manufacturers tend to recommend different maintenance intervals based on the type of vehicle and intended use, but generally speaking, it’s safe to perform a transfer case fluid service every 30,000 miles. Vehicles that are used for towing or frequent off-roading should probably get this fluid changed more frequently.

Does a transfer case do anything in 2WD?

The transfer case is located between the transmission and front and rear differentials via the driveshafts, creating a two-wheel drive (2WD) or four-wheel drive vehicle. … When the transfer case engages the front shaft, which feeds power to the front wheels, the vehicle then becomes a four-wheel drive.

Is the transfer case always engaged?

Based on my understanding of how transfer cases work, there IS always power going THROUGH the transfer case, it just passes straight THROUGH from the input shaft to the rear output shaft without being transferred to the front output shaft.

Why does my transmission make a clicking noise?

A transmission fluid leak, as with any transmission problem, is not something to ignore. The transmission fluid serves to cool and lubricate. There is a clicking noise in the transmission while in 4-wheel drive. There is a clunking from under the vehicle when you change gears.

What causes a rear main seal to go out?

Excessive heat, old age, high mileage, infrequent use, and worn bearings can also be factors contributing to rear main seal failure.
