What is the liquid limit test

Liquid limit is the water content where the soil starts to behave as a liquid. Liquid limit is measured by placing a clay sample in a standard cup and making a separation (groove) using a spatula. … Liquid limit of a clay (LL) is defined as the water content that corresponds to 25 blows.

Why do we do liquid limit test?

If the natural moisture content of soil is higher than liquid limit, the soil can be considered as soft and if the moisture content is lesser than liquid limit, the soil is brittle and stiffer. The value of liquid limit is used in classification of the soil and it gives an idea about plasticity of the soil.

What is liquid limit in civil engineering?

The liquid limit is the moisture content at which the groove, formed by a standard tool into the sample of soil taken in the standard cup, closes for 10 mm on being given 25 blows in a standard manner. This is the limiting moisture content at which the cohesive soil passes from liquid state to plastic state.

What is liquid limit formula?

Use the number of drops along with the water content of the samples to calculate the liquid limit. … Subtract the weight of a dry soil sample from the weight of a wet soil sample and multiply by 100. Divide the result by the weight of the wet sample to get the percent water content for that sample.

Is CBR a 2720 test?

Penetration DepthUnit Standard LoadTotal Standard Load2∙57013705∙01052055

Is liquid limit a percentage?

2.1 The liquid limit of a soil is the moisture content, expressed as a percentage of the weight of the oven-dried soil, at the boundary between the liquid and plastic states of consistency.

Which apparatus uses the liquid limit test?

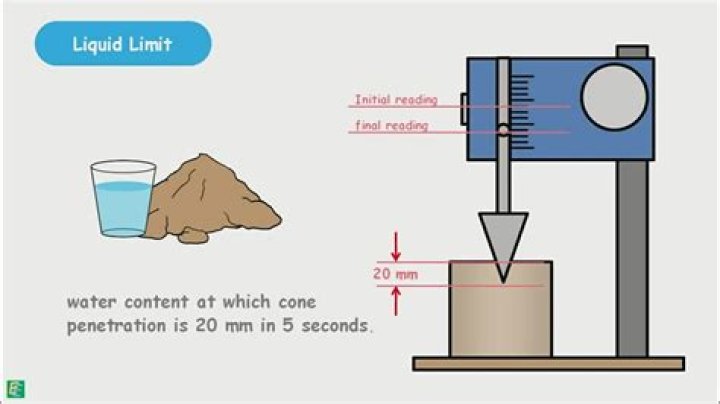

The Cone Penetrometer is used to carry on liquid limit tests onsoil samples. It is a static test depending on the soil shear strength. The test is based on the relationship between moisture content and the penetration of a cone into the soil sample under pre-set … For determining the liquid limit of soils.

What is the minimum CBR value for subgrade?

According to the subgrade characterization which recommends 10% as minimum CBR value for the layer [1], the subgrade material proved adequate as this value appears to have been exceeded by a wide margin at most of the sections along the road. …

What is shrinkage limit test?

A shrinkage limit test gives a quantitative indication of how much moisture can change before any significant volume change and to also indication of change in volume. The shrinkage limit is useful in areas where soils undergo large volume changes when going through wet and dry cycles (e.g. earth dams)

What is a good CBR test result?

C.B.R. values are usually calculated for penetration of 2.5 mm and 5 mm. … If C.B.R. for 5 mm exceeds that for 2.5 mm, the test should be repeated. If identical results follow, the C.B.R. corresponding to 5 mm penetration should be taken for design.

Article first time published on

Is CBR a code?

CBR (CALIFORNIA BEARING RATIO) TEST OF SOIL(IS-2720-PART-16-1979)

What does high liquid limit mean?

A high liquid limit normally indicates a high compressibility and a high shrinkage/swelling potential. A high-plasticity index Ip generally results in a low shear strength. A low Ip means that a soil used as foundation will change significantly in consistency even with a small change in water content.

How do you calculate CC and CU?

Cu – Uniformity coefficient. Cu = D60/D10. Cc – Coefficient of curvature. Cc = (D30)^2 /(D60)(D10).

What is plastic limit and liquid limit?

The Liquid Limit (LL) is the moisture content at which a fine-grained soil no longer flows like a liquid. • The Plastic Limit (PL) is the moisture content at which a fine-grained soil can no longer be remolded without cracking.

Which sieve is used for determination of liquid limit?

400 mm sieve and mix thoroughly before determination of the liquid limit and plastic limit. Adjust the liquid limit device by means of the adjustment plate on the device and the gauge on the handle of the grooving tool. Adjust so the centre of the wear point on bottom of cup is lifted exactly 1 cm above the base.

Is code for GSA of soil?

GRAIN SIZE ANALYSIS OF SOIL BY DRY SIEVING METHOD, lS: 2720 (Part-4): 1985. Scope: To determine grain size of soils fraction retained on 4.75 mm IS sieve by dry method.

Is soil a code test?

IS CodeTitleDownload LinkIS 2720-5 1985Methods of test for soils, Part 5: Determination of liquid and plastic limitDownloadIS 2720-6 1972Methods of test for soils, Part 6: Determination of shrinkage factorsDownload

What is Casagrande apparatus?

An appliance to determine the liquid limit of a soil. It consists of a brass dish, handle, and cam mounted on a hard rubber base. The dish falls through a distance of 1 cm per rotation.

What does liquidity index mean?

The liquidity index calculates the days required to convert a company’s trade receivables and inventory into cash. The index is used to estimate the ability of a business to generate the cash needed to meet its current liabilities. It is commonly used by credit analysts to evaluate the creditworthiness of customers.

What is a pat of soil?

The shrinkage limit of cohesive soils is defined as the water content at which further loss of moisture will not cause a decrease in volume. … The soil pat is then oven-dried. After coating in melted wax, the volume of the soil pat is computed by weighing in water and noting the difference from its weight in the air.

What are cohesive soils?

Cohesive soil means clay (fine grained soil), or soil with a high clay content, which has cohesive strength. … Cohesive soil is hard to break up when dry, and exhibits significant cohesion when submerged. Cohesive soils include clayey silt, sandy clay, silty clay, clay and organic clay.

What is the CBR of clay?

A CBR value of 2% is usually found for clay, high-quality sub-base will have CBR values between 80% and 100%, and some sands may have values around 10%. The CBR testing can be applied to soils with a maximum particle size of 20 mm.

Why CBR test is important?

The purpose of doing a CBR test is to find out the California Bearing Ratio (CBR) of a material which has to be used for the subgrade of flexible pavements. … We can read the required thickness for which we need to design the subgrade layer if we know the CBR of our material and the design traffic.

Can CBR test be conducted on sand?

Also, CBR test was performed on sand specimen without addition of geofiber. Figure 4 shows that CBR values increased as the geofiber content increased and kept increasing within the amount of geofiber used in this study. CBR value increased from 19 to 55 at 0 and 0.4% geofiber respectively.

How do you read CBR results?

The harder the surface, the higher the CBR value. Typically, a value of 2% equates to clay, while some sands may have a CBR value of 10%. High quality sub-base will have a value of between 80-100% (maximum). The CBR test is carried out on soils with a maximum particle size of 20mm.

How is CBR calculated?

C.B.R. = (PT/PS) X 100 The C.B.R. values are usually calculated for penetration of 2.5 mm and 5 mm. Generally the C.B.R. value at 2.5 mm will be greater than at 5 mm and in such a case/the former shall be taken as C.B.R. for design purpose.

What is CBR test PDF?

The laboratory CBR test consists essentially of preparing a sample of soil in a cylindrical steel mould and then forcing a cylindrical steel plunger, of nominal diameter 50 mm, into the sample at a controlled rate, whilst measuring the force required to penetrate the sample.

What is soaked CBR test?

CBR strength of soil is a vital parameter in the design of flexible pavements. CBR value can also be used to evaluate the coefficient of subgrade reaction. … For soaked CBR test, the prepared soil specimen is generally soaked in water for a period of 96 h or 4 days.

Is CBR a 2720?

2.2 California Bearing Ratio (CBR) – The ratio expressed in percentage of force per unit area required to penetrate a soil mass with a circular plunger of 50 mm diameter at the rate of 1’25 mm/min to that required for. corresponding penetration in a standard material.

What is CBR in civil engineering?

The California Bearing Ratio (CBR) is a measure of the strength of the subgrade of a road or other paved area, and of the materials used in its construction. The ratio is measured using a standardized penetration test first developed by the California Division of Highways for highway engineering.

How does liquid limit affect the shear strength of soil?

Undrained shear strength of a soil at the liquid limit can be considered to be around 1.7 kN/m2. … The undrained shear strength-water content relationship has been found to be log-linear for a wide range of water contents beginning from lower than the plastic limit to higher than the liquid limit.
