What is the pressure tank for in a well system

What is a well pressure tank? A well pressure tank maintains the water pressure in the household and more importantly, protects the life of the well pump. Every time a faucet gets turned on, a toilet flushes, or someone runs a bath, water is demanded from your well.

How do I know if my well pressure tank is bad?

1. The Water Tank Is Waterlogged.
2. Your Water Pump Is Short-Cycling.
3. Jumpy Pressure Gauge Needle.
4. No Water or Low Water Pressure.

What happens if pressure tank pressure is low?

If tank pressure drops, the bladder may have a tear or hole in it. A tank is waterlogged if it is completely filled with water or has too much water to function correctly. Waterlogged bladder pressure tanks contribute to the following problems : The pump motor cycles – turns on and off – too often.

Do I need a pressure tank for my well?

A pressure tank is important because it keeps water pressure at a constant level. It also keeps the water and air separated. Without these features the water pump would turn on and off quickly – a problem caused cycling – which can quickly burn out the pump motor.

What is a symptom of a waterlogged pressure tank?

If your pressure tank is waterlogged, the pressure inside is no longer being properly regulated, so you will see this needle dance around on the gauge. The rapid turning on/off of your well pump is called Short Cycling.

What size pressure tank do I need for my house?

General Rule of Thumb for Sizing a Pressure Tank Generally, as a rule of thumb, one can follow these guidelines when sizing a pressure tank: 0-10 GPM: 1 gallon of drawdown per 1 GPM of flow. 10-20 GPM: 1.5 gallons of drawdown per 1 GPM of flow. 20 GPM+: 2 gallons of drawdown per 1 GPM of flow.

How long do pressure tanks last?

It is a type of tank containing pressurized air and water separated by a membrane (bladder) and pre-charged with air at the factory. On average, a bladder pressure tank lasts 5–7 years.

What PSI should a water pressure tank be at?

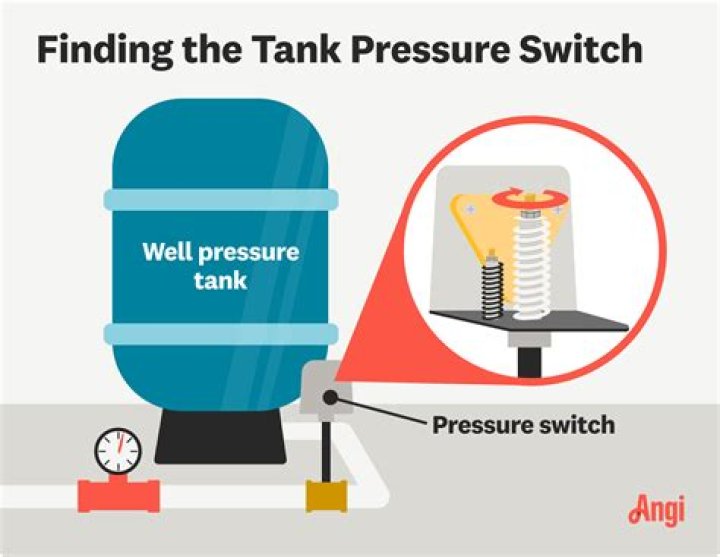

Your well tank’s pressure should be set at 2 psi below the pressure switch’s cut-on point. This differs depending on your tank’s pressure settings. Most well tanks come set at 30/50. The cut-on pressure for the well pump is 30 psi, so the pressure of the tank should have a pressure of 28 psi.

Does the size of a pressure tank matter?

The bigger the tank you have the larger the drawdown (actual amount of water stored) you will have. A larger drawdown means longer run time and therefore less cycles. Most manufacturers recommend a minimum run time of one minute for efficient motor cooling. One horsepower and larger pumps require longer run times.

What is normal water pressure for a house with a well?

Normal well water pressure should fall between 40 and 60 psi, so if your pressure is outside the normal range, adjust the pressure switch.

Article first time published on

What causes a well to lose water pressure?

The cause could be clogged pipes or a clogged well casing from a buildup of sediment and minerals. It could also be an improperly placed well pump. If the pump is placed too close to the top of the well’s water level, it will reduce water flow.

How does a well tank get waterlogged?

A waterlogged pressure tank is caused by the confined space within the tank having an improper ratio of water to air (too much water, not enough air). Given the physical characteristics of water (incompressible), this condition causes the pressure to fluctuate rapidly and the well pump to go on and off too much.

How do you fix a waterlogged well pressure tank?

1. Turn off the power to the pump. …
2. Attach a garden hose to the drain on the tank. …
3. Open the valve and drain all the water out of it. …
4. Shut the valve. …
5. Flip the breaker or switch to turn the power back on to the pump.
6. Listen to the pump.

What happens when a well pressure tank goes bad?

Over time, your pipes may break. Water hammers can occur when a well pressure tank is no longer able to maintain a constant, optimal water pressure in your home. Instead, water flow is more apt to experience fluctuations that result in water hammers.

How much does it cost to replace a well pressure tank?

ItemAverage CostWell Pressure Tank$150 – $300Installation Labor$125 – $200Total$275 – $500

When should a well pressure tank be replaced?

Cheaper pressure tanks will last 5 years, while high quality pressure tanks could last up to 30 years. If the water is clean and the tank is properly sized it should be lasting an average of 15 years.

Why does my pressure tank keep turning on and off?

Short cycling of a water pump which is defined at SHORT CYCLING WATER PUMP means that the water pump or “well pump” turns on and off too rapidly or too frequently when water is being run in the building. … The most-common cause of pump short-cycling is loss of air in the water pressure tank.

What size water tank do I need for a family of 4?

So with a family of 4 that has visitors staying occasionally, you could need 225,000 -250,000L of water per year. As your tank should fill up by the end of winter, you may not need a 250,000L tank but simply enough water in storage to get you through the 6-7 months of dry weather with a bit of buffer.

Is a 20 gallon pressure tank big enough?

A 20 GPM pump needs a tank with 20 to 40 gallons of storage. Almost 2/3s or more of a tanks volume is filled with compressed air, it takes a very large tank to hold 10 to 40 gallons of water. The higher the pressure switch setting, the less water volume a tank can store.

Can you have 2 pressure tanks One well?

In short, you can have as many pressure tanks as you like. Locating them closer to the point of use (the house) would be helpful, to a limited extent. That limited extent is the “effective volume” of the pressure tank at the house – while it’s got pressure, you get better pressure at the house.

Can you have too big of a well pressure tank?

The downsides to a larger tank are simply that it costs more and takes up more space. The only real problem is if you have too small of a tank you’ll cause the pump to cycle too quickly which wears it out faster.

How often should well pressure tank cycle?

Normal well pump operation with a pressure tank will give a water volume draw-down cycle of 30 seconds to 1-2 minutes for a typical water pressure tank, or much longer if larger water pressure tanks or water storage tanks are installed.

How do I choose a pressure tank?

When selecting a pressure tank, certain information must be known: (1) system demand; (2) pump capacity; and (3) well capacity. bathrooms (half baths are considered as 1) and multiplying by 4 gpm. For a home with 2 ½ bathrooms, multiply 3 x 4 gpm = 12 gpm.

Is 70 psi too high for water pressure?

How High Is Too High? The ideal water pressure level is between 50-70 PSI. If your water pressure goes above 70 PSI (even occasionally), you should install a pressure regulator to your main water line.

Is 55 PSI water pressure good?

The water pressure in a plumbing system should be between 45 and 55 psi (pounds per square inch). If the pressure rises above 60 psi, it can create problems for the plumbing, including damage to the pipes. In most cases of high water pressure, a professional must analyze the problem and find a solution.

How do I increase water pressure at my house?

Look on the main supply pipe near your water meter for a conical valve that has a bolt sticking out of the cone. To raise pressure, turn the bolt clockwise after loosening its locknut. Keep an eye on the gauge to make sure the pressure is within bounds, then retighten the locknut.

How deep should a well be for drinking water?

For drinking water wells it’s best to be at least 100 feet deep so that surface contaminants cannot enter the well. The average well depth for private homes is between 100 to 800 feet [2]. You may need a deeper or shallower well if your area has different geology than another region of the country.

How do I know if my bladder pressure tank is broken?

You can check the gauge down at the bottom and if you’re running water of any sort and that pressure is bouncing up to your top, which is 60 PSI (usually), down to a 40, and it’s doing that a lot and its very frequent, then usually that is a bad tank.

How do you know if your well is going dry?

1. Faucets Begin Sputtering. It’s normal for faucets to sputter when you open them. …
2. Muddy or Murky Water. …
3. Reduced Water Pressure. …
4. Pump Runs Longer. …
5. Water Well Recovery is Slow After Heavy Use. …
6. Neighbors are Reporting Similar Problems.

Can you replace a bladder in a pressure tank?

Frequent pump cycling and the presence of water at the air fitting valve indicate that the bladder may require replacement. These OEM pressure tank diaphragms are easily replaced by removing the bottom flange, pulling out the old bladder, inserting the new bladder and reinstalling the flange.

What is a bladder tank for a well?

How does a well pressure tank work? A well pressure tank uses compressed air to push pressurized water out of the tank and into your home. Pressure tanks have a diaphragm, also called a bladder, that separates a chamber of air from the water. As the tank fills with water, it compresses the air chamber.
