What is the rough opening for a Prehung door

A 36” x 80” pre-hung single door will use a rough opening of approximately 38-1/2” x 82-1/4” to fit. Always remember to square up your door before you nail the frame in place to assure it will close properly.

What is the rough opening for a 30 inch Prehung door?

So, if you have a bedroom door that is 30″ wide (which is considered a 2/6 or 2′-6″ door) just add 2″ to the width and frame it 32″ wide. The height is 80″ (which is considered 6/8 or 6′-8″) add 2-1/2″ to the actual door height and frame it 82-1/2″ high.

How much space do you need around a Prehung door?

Most pre-hung doors come with a 1/8-inch gap between the door and the frame on the hinge side and the top. You’ll discover it’s fairly easy to attain this gap around the entire door.

What is the opening for a 32 inch Prehung door?

Rough Opening for 32 Inch Door For example a two-foot, eight inch (32”) by six feet, eight inch high (80”) prehung door, would require a rough opening width of 34 inches and a height of 82 inches.

How wide should door jamb be?

Jamb Measurements When building a door jamb to fit a standard wall with a two-by-four frame and 1/2-inch drywall on each side, the width of the jamb board typically is 4 9/16 inches. … The head jamb goes over the ends of the side jambs.

What is the rough opening for a 32 inch by 80 inch door?

Common door size is 32-in x 80-in Unit dimension is 33.5-in x 81.75-in. The suggested rough opening is 34-in x 82.25-in.

What are the rough in dimensions for a 30 inch door?

32-1/2 inches. The rough framing should be 2-1/2 inches wider than the door itself. That leaves room for the 3/4 inch finish frame on each side of the door, and then 1/2 inch on each side for the shims between the finish frame and the rough frame.

What is rough opening?

A rough opening refers to the framed opening of a window. A window frame, however, has a header across the top, a sill plate across the bottom, and vertical trimmers on either side. … The difference between rough opening and actual window size will vary by manufacturer.

Is a 32 inch door actual 32 inches?

No, the door frame will be 32 inches. The door itself will be about one eighth to one quarter of an inch narrower to allow space for opening and closing it. Doors are sized to order — in the United States of America. Therefore a 32″ door is 32″ wide.

What is the rough opening for a 34 inch Prehung door?

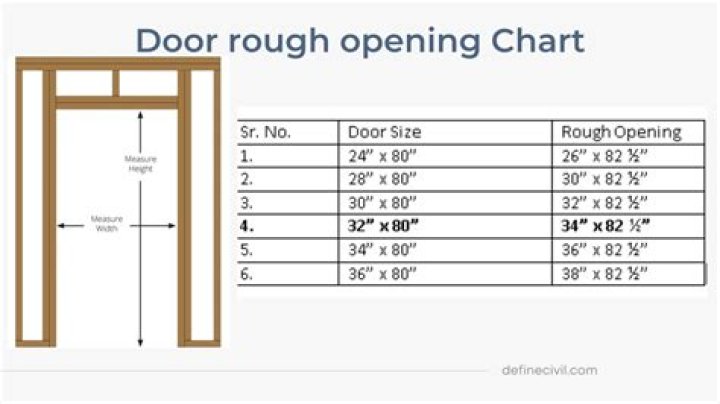

Rough Opening WidthRough Opening HeightDoor Size to Order29.75″ – 31″81.5″ – 83″28″31.75″ – 33″81.5″ – 83″30″33.75″ – 35″81.5″ – 83″32″35.75″ – 37″ 37.75″-39″81.5″ – 83″34″ 36″

Article first time published on

How big should a rough door opening be?

The width of a door’s rough opening is the width of the door plus 2 inches. The 2 inches accounts for a 3/4-inch jamb board on each side plus 1/2-inch adjustment space. If you are using pre-hung doors, the opening should be 1 inch to 1 1/2 inch wider than the door and its jambs.

What size door is 2868?

Door Schedule For example a door may have a size of 2868 – the number alternates between feet and inches, first number is feet, second is inches, third is feet again and the last is inches. That makes that number 2′ 8″ x 6′ 8″. The first set of numbers, 2′ 8″ is the width, the second set, 6′ 8″ is the height.

How much space should be between rough opening and door jamb?

When creating a door rough out, the minimum distance from the corner to the door is 3 inches on the rough framed walls. Keep in mind that you are also accounting for drywall, so 4 inches is probably best. You should also allow 4 inches of room for perpendicular walls to allow room for the door jamb, stud and a jack.

How wide is a 2x4 door jamb?

The minimum door jamb width required is 4 ½ inches. 2×4 width: 3 ½ inches.

What is the rough opening size for a 2 6 6 8 door?

Single door. Thus, if, say, your single door’s size is 2/6 x 6/8, then the rough opening is 32” wide and 82 ½” tall.

What is the actual size of a 32 inch door?

2’8″ (32 Inch) Door Width (Actual Size 31-3/4″) by Door Closers USA.

What is the rough opening for a 32 inch pocket door?

For example, a 2-foot 8-inch door (32 inches) the rough opening needs to be 65 inches. The height of the rough opening off the rough floor surface is usually 84.5 inches.

What is a 2 0 door?

The nomenclature of doors is as follows: the width is specified by 2 or 3 numbers that indicate the feet and inches of the door a 2-0 [written 20] is 2′-0″ wide or 24″ wide, a 2-6 [written 26] is 2′-6″ wide or 30″ wide, a 2-10 [written 210] is 2′-10″ wide or 34″ wide.

What is rough opening door?

In simplest terms, a rough opening (RO) is a hole in a framed wall for a door or a window. Most door and window manufacturers provide RO dimensions and we build ROs to those sizes.

What is the rough opening for a 36 exterior door?

A pre-hung single door that measures at 36″ x 80″ will require a rough opening of about 38.5″ x 82.25″ for a precise fit. Make sure to align and square up your door before nailing the frame in place so it will close properly.

How big should a door opening be?

Standard Door Frame Size The average measurement of 36 by 80 inches refers to the door panel itself, not including the frame. The frame extends beyond the panel, and is installed into the rough opening. The rough opening should be at least ¾ inch wider and ? inch taller than the door frame.

What is the rough opening of a 3068 door?

Rough Opening The standard size door is 3’0″ (36″) wide by 6’8″ (80″) tall and is the main component of the door unit. In the industry it is known as a 3068 door. The door unit, though, consists of the door, the frame around the door, and the sill underneath the door.

What size is a 3070 door?

Keep in mind that on a 3070 door, the nominal measurements are 3’0″ x 7’0″ while the actual measurements are 2′ 11 3/4″ x 6′ 11 1/8″. Using a 3070 door as an example, the rough opening size for a KD cased open frame would be 38″ x 85″.

What size is a 5068 door?

OXXO50684’11-1/4″ x 6’8-1/8″506860685’11-1/4″ x 6’8-1/8″606880687’11-1/4″ x 6’8-1/8″8068100689’11-1/4″ x 6’8-1/8″10068

How much gap should be at the bottom of a door?

The gap at the bottom of an interior door should be 2 inches from an unfinished floor. Over a finished floor, the gap should be between ¾ to ½ of an inch, depending on the type of floor you have. The gap at the bottom of an exterior door should be almost nonexistent.
