What is the symbol of photodiode

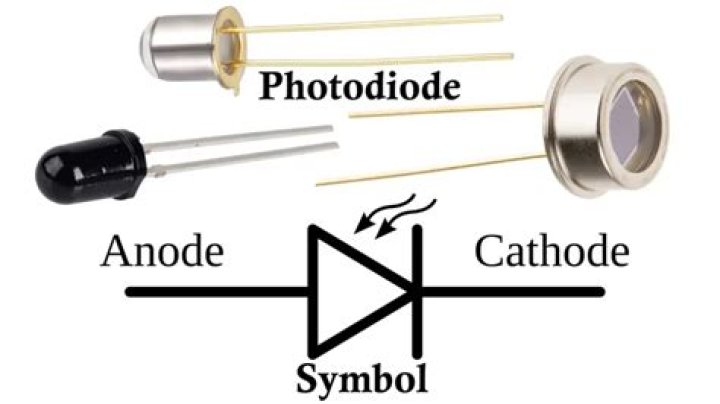

The symbol of photodiode is similar to the normal p-n junction diode except that it contains arrows striking the diode. The arrows striking the diode represent light or photons. A photodiode has two terminals: a cathode and an anode.

What is photodiode example?

Photodiodes are used in safety electronics such as fire and smoke detectors. Photodiodes are used in numerous medical applications. They are used in instruments that analyze samples, detectors for computed tomography and also used in blood gas monitors. Photodiodes are used in solar cell panels.

What does a photodiode look like?

Some photodiodes will look like a light-emitting diode. They have two terminals coming from the end. The smaller end of the diode is the cathode terminal, while the longer end of the diode is the anode terminal.

What is Si photodiode?

Silicon photodiodes are semiconductor devices used for the detection of light in ultra-violet, visible and infrared spectral regions. Because of their small size, low noise, high speed and good spectral response, silicon photodiodes are being used for both civilian and defense related applications.

What are the type of photodiode?

• PN photodiode: The first photodiode to be developed was PN photodiode. …
• PIN photodiode: These days PIN photodiode finds wide applications. …
• Avalanche photodiode: Avalanche process is used for providing extra performances.

Is photodiode a sensor?

It is a form of light sensor that converts light energy into electrical energy (voltage or current). Photodiode is a type of semi conducting device with PN junction. … The photo diode accepts light energy as input to generate electric current. It is also called as Photodetector, Photo Sensor or Light Detector.

Where are photodiodes used?

Photodiodes are used in consumer electronics devices such as compact disc players, smoke detectors, medical devices and the receivers for infrared remote control devices used to control equipment from televisions to air conditioners. For many applications either photodiodes or photoconductors may be used.

What is a Photoreceiver?

Photoreceivers are based on the same types of semiconductor photodiodes used for power sensors (see Photodiode Sensor Physics) and camera-based beam profiling (see Laser Beam Profile Measurement). … They also share many common parameters that must be considered when selecting a detector for any application.

How does photodiode work as photovoltaic cell?

The photodiode is converting light energy from photons into electrical energy by forcing a positive current through the circuit in the clockwise direction (opposite to the label for I_P).

Is a photodiode active or passive?

Photo diode is a passive device.

Article first time published on

How is photodiode different from LED?

LED and Photodiode are reverse of each other. LED generates light with the help of charge carriers while photodiode generates current due to incident photons. In a nutshell, LED converts electric energy into light energy but Photodiode converts light energy into electrical energy.

What is the effect of light in a photodiode?

The response time of a photodiode is defined as the time it takes for light generated carriers within the body of the diode to arrive at and cross the P-N junction. When the diode is illuminated, photons of light penetrate into the silicon and are absorbed generating electron-hole pairs.

What is photodiode dark current?

In physics and in electronic engineering, dark current is the relatively small electric current that flows through photosensitive devices such as a photomultiplier tube, photodiode, or charge-coupled device even when no photons are entering the device; it consists of the charges generated in the detector when no …

What are the other names of photodiode?

In this page you can discover 10 synonyms, antonyms, idiomatic expressions, and related words for photodiode, like: photoelectric, photodetector, photodiodes, vcsel, detector, photoconductive, diode, InGaAs, bolometer and monochromator.

Why photodiode is used as a photodetector?

Semiconductor photodetectors, commonly referred to as photodiodes, are the predominant types of photodetectors used in optical communication systems because of their small size, fast detection speed, and high detection efficiency.

What is the symbol of tunnel diode?

InventedLeo Esaki Yuriko Kurose Takashi SuzukiFirst productionSonyPin configurationanode and cathodeElectronic symbol

What are photodiodes made of?

Photodiodes made from different materials (silicon, germanium, indium gallium arsenide phosphide, or indium gallium arsenide) have varying levels of sensitivity as well as differing speeds and dark current. Silicon, for example, provides sensitivity for wavelengths between ~400 and 1000 nm.

How do you connect photodiode?

1. Place the photodiode into the breadboard. …
2. Place the 100-ohm resistor into the breadboard and connect each leg of it to a leg of the photodiode.
3. Connect the probes of the digital multimeter to the legs of the resistor.

What is difference between photodiode and solar cell?

A photo diode is made to detect light quickly whereas a solar cell is made to collect energy from light. They are both typically silicon diodes, but modified to meet their different requirements. A photo diode has to be fast, which means low capacitance, which means small area of silicon.

What lens is used in a photodiode?

A plano-convex lens with a larger focal length (10 mm diameter and 20 mm focal length) was used for the photodiode array with the larger radius (7.20 mm).

What is a photocell resistor?

A photocell is a resistor that changes resistance depending on the amount of light incident on it. A photocell operates on semiconductor photoconductivity: the energy of photons hitting the semiconductor frees electrons to flow, decreasing the resistance.

Is photodiode and photodetector same?

As nouns the difference between photodiode and photodetector is that photodiode is a semiconductor two-terminal component whose electrical characteristics are light-sensitive while photodetector is any device used to detect electromagnetic radiation.

Is photodiode used in solar cell?

time behavior. Application (photodiodes are used as sensors, solar cells are used as transducers that convert light into electricity) The photodiodes can also be used in the reverse direction, which due to minority carriers only the blocking saturation current is generated. … Speed ​​does not matter in solar cells.

What is the difference between solar cell and photocell?

A solar cell produces power for an electrical circuit while a photocell is a light-activated control switch. Photocells have been used since the mid 1900s in light meters while solar cells have only become popular since 1990. The only commonality between the two is that light is needed for them to work.

What is meant by the dark current?

Definition of dark current : the current through a photoelectric or photoconductive cell when an electromotive force is applied in the absence of light.

How does a PIN photodiode work?

The PIN photo diode operates with an applied reverse bias voltage and when the reverse bias is applied, the space charge region must cover the intrinsic region completely. Electron hole pairs are generated in the space charge region by photon absorption.

How does an avalanche photodiode work?

Avalanche photodiode working principle. Avalanche breakdown takes place when the diode is subjected to high reverse voltage. The reverse bias voltage increases the electric field across the depletion layer. Incident light enters the p+ region and further gets absorbed in the highly resistive p region.

What are photosensors made of?

13.2.2.3 Photo/optical sensors Typical photosensors are composed of a light-emitting diode (LED) and a photosensor which detects the transmitted or reflected light.

Is photodiode forward biased?

It is reverse biased because in reverse bias, the width of the depletion region increases.

What is photodiode mention its uses?

A photodiode is a PN-junction diode that consumes light energy to produce an electric current. They are also called a photo-detector, a light detector, and a photo-sensor. Photodiodes are used in safety electronics such as fire and smoke detectors. …

What is a photodiode Class 12?

A photodiode is basically semiconductor material that converts light into electrical current. The current is produced when photons are getting absorbed in the photodiode. Photodiodes may include optical filters, built-in lenses, and sometimes have large or small surface areas.
