What is the throat of a band saw

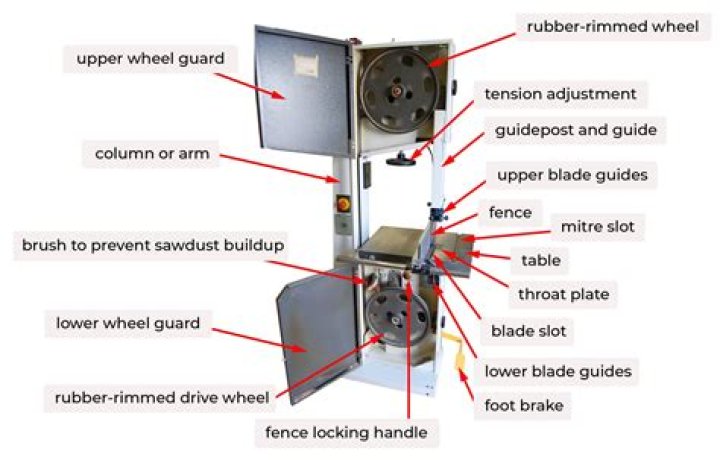

Throat capacity is the distance between the blade and the column. This measurement is also a quick reference to the size designation for a bandsaw. In other words, a 14″ Bandsaw should have close to 14″ of cutting capacity between the blade and the column.

How do you measure a band saw throat?

To determine the size of a band saw, measure the distance from the blade to the throat. That measurement is a little more than the largest piece of wood the band saw can handle. The band saw’s large circular blade is placed around the tool’s top and bottom wheels. Some band saws have built-in fences.

How thick can a band saw cut?

Band saws are the undisputed champ when it comes to cutting curves and slicing through thick material. Many small band saws can slice though lumber a full four inches thick, and bigger saws handle six-inch cuts.

What is resawing in woodworking?

Bandsaw Resawing from the beginning: resawing is cutting a sawn plank of wood into thinner planks on a bandsaw. Thus the cut runs through the plank’s width, which distinguishes bandsaw resawing from ordinary bandsaw rip cuts where the blade runs through the stock’s thickness.

What size band saw is best?

For a hobbyist, a 12″-14″ bandsaw is the ideal size. This size saw will provide plenty of power and a good deal of resawing capability. A professional will be better served with an 18″ bandsaw for a larger resawing capability.

What band saw blade for resawing?

Resawing involves making rip cuts in the face of a wide board. So just like you would on the table saw, you’ll want to select a blade with fewer teeth per inch (TPI) than the blades you use for crosscutting or cutting curves. For most 14″ band saws, a 1 ⁄ 2 “-wide blade with 2-3 TPI is a good choice.

What does the 9 inch mean on a band saw?

These very fine blades allow cutting tight curves and have a narrow kerf. The maximum blade width varies with saw size. Most 9-inch band saws take blades up to 1/4” or 3/8” wide, 10-inch saws up to ½” wide, 14-inch up to 3/4” wide, and 18/19-inch saws up to an inch or a bit more.

What is a resaw bandsaw blade?

Feb 202019. Resawing is the term for woodcutting that takes a board of a given thickness and slices it into two or more thinner boards. Though it can be done on a small scale on a tablesaw, the bandsaw is universally regarded as the go-to tool for resawing lumber.

What type of bandsaw blade is best for resawing?

Results. If you only resaw on occasion and want a blade primarily for general-purpose work, a flex-back or hard-back blade is your best choice. For hard-core resawing, the hard-back or bi-metal hook-tooth blades with three tpi did the best overall job.

How thick of wood can a 9 bandsaw cut?

There are several $99, 9 inch band saws on the market in my area (Ryobi, Skill). The are able to cut a thickness of 2 ½ inches.

Article first time published on

How many teeth does a bandsaw blade have?

The general rule of thumb is: For wood and soft materials aim for 3 – 6 teeth in the workpiece. For metals and harder materials aim for 6 – 24 teeth in the workpiece.

Can you use a bandsaw to cut wood?

With the correct blade, a band saw can cut wood or metal, in either curves or straight lines. Blades come in a variety of widths and tooth counts. Narrower blades are good for tighter curves, while wider blades are better at straight cuts.

How much HP does a bandsaw need?

With general cutting of thinner stock with minor resawing, typically a 1-1/2 horsepower motor will do the trick. If you plan on making your own veneer by resawing larger exotic hardwood or cutting bowl blanks from a log, consider looking at units with a 2-1/2 to 3 horsepower motor.

What can I make with a band saw?

Jewelry Box. The jewelry box is arguably one of the easier projects that any woodworker can pursue. …
Retro USB. …
Dinner Table. …
Coat Rack. …
Chair. …
Address Sign. …
Night Stand. …
Drawers.

What is the difference between a band saw and a scroll saw?

The blades used with a band saw have a circular shape and are very flexible. … Now, one of the really big differences is that the scroll saw’s blade moves up and down, whereas the band saw’s blade moves in a continuous downward motion. Band saws also differ in the thickness and size of materials which they can handle.

What does 14 mean on a bandsaw?

Rob Johnstone: Band saw sizes are derived from the diameter of the wheels in the saw. So a 14-inch band saw will have wheels that are 14-inches in diameter. There is another measure that indicates how wide a board you can resaw.

What is a 14 bandsaw?

A 14″ band saw has a 14″ measurement between the two. This measurement may range from 10″ up to 24″. Some manufacturers may go by the wheel size, which will make the measurement smaller. The second dimension is the depth of cut — the distance between the table and the underside of the blade guide/guard.

Which bandsaw blades do I need?

Use coarse tooth blades (2 or 3 TPI) for re-sawing and cutting thicker materials. For general wood cutting duties in typical 3/4″ material, use a 4 TPI blade for coarse, fast cutting and a 14 TPI blade for slower, smoother cutting. A blade in the 6 to 8 TPI range provides good general-purpose performance.

Where should you stand when cutting with a band saw?

Cutting cylindrical or irregular stock on the band saw may be done only with a special jig, such as a V-block (special setup). Never stand or allow others to stand to the right of the band saw when it is running.

How thick is a bandsaw blade?

WHEEL DIAMETERRECOMMENDED BLADE THICKNESS6-8 Inches.018″8-11 Inches.020″11-18 Inches.025″18-24 Inches.032″

What is skip tooth bandsaw blade?

Skip-tooth bandsaw blades have a shallow gullet and widely spaced teeth. They commonly have a 90° tooth and 0° rake. The sharp angle at the tooth gullet allows the chips to come out cleanly.

What causes bandsaw blade drift?

Drift is cause because the blade buckles under the load. You can see that by stretching a ribbon between 2 points and applying a pressure to one of the edges, it will turn sideway easily. A sharp blade and high blade speed will help a lot with that. Here is what I made for re-sawing.

Can all bandsaws resaw?

Tool up: Blade selection and more. Just about any bandsaw will do acceptable resawing. … Wide blades make it easier to cut a straight line. Look for a blade with four teeth per inch and a hook tooth pattern.

What does TPI mean on a bandsaw blade?

For maximum cutting efficiency and lowest cost per cut, it is important to select a blade with the right number of teeth per inch (TPI) for the material you are cutting. See Carbide Tooth Selection on page 18 or Bi-metal Tooth Selection on page 21. The size and shape of the material to be cut dictates tooth selection.

How long should a bandsaw blade last?

On average your bandsaw blade should last 6 months to as long as a few years depending on what your cutting with it. Make sure to match your blade strength and quality to the project and material your cutting.

Can you use a fence with a bandsaw?

Every bandsaw deserves a good fence. … With a well-designed fence, you can accurately resaw boards into thinner pieces, rip warped rough lumber without worrying about kickback and precisely cut tenons, half-lap joints and even dovetail joints. Commercially made bandsaw fences for 14-in.

What is the difference between a wood and metal bandsaw?

Band saws for wood typically have one speed – fast. Band saws for metal have to cut far denser, and tougher materials. Cutting these materials develops far more heat, which means that you have to slow things down to the right speed for the particular material. So metal cutting band saws often have adjustable speeds.

How much power does a bandsaw use?

For ordinary work, cutting through no more than 1.5″ (4 cm) of wood, at speeds below 2000 fpm, 1/3 HP is adequate. If you want to do a lot of resawing, and run the saw at high speeds, you may want up to 1.5 hp. A sharp blade will use less than half the power of a dull blade.
