What is the yellow wire on a thermostat

The yellow wires underneath your thermostat connect to your compressor. They control your air conditioning system. The yellow wires terminate at your compressor contactor via an air handler. The yellow wires connect to the Y terminals on your thermostat.

What is the white and yellow wire on a thermostat?

The wires are typically arranged as follows: red for 24-volt hot, white for heat, yellow for cooling, green for the fan, and blue for common (although the common wire may be a different color). You can also refer to the Conductor Color Chart (see Chart 6, thermostat wire).

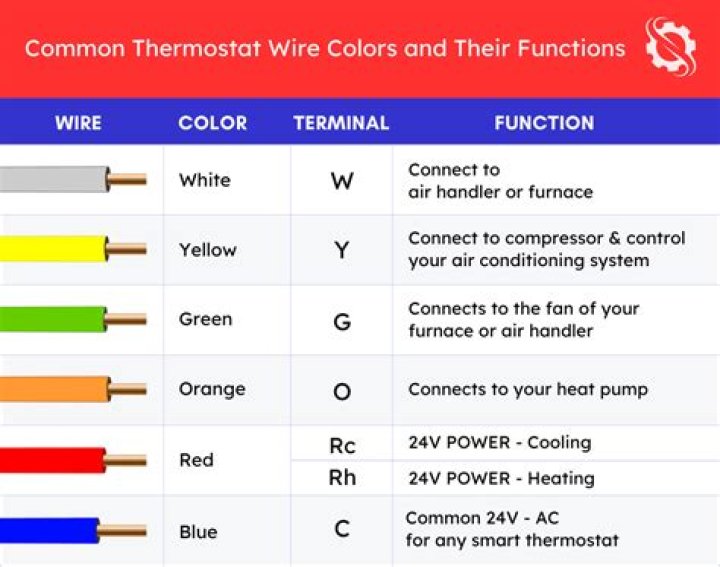

What are the color codes for thermostat wiring?

• The W wire is connected to your heating system. …
• The Y wire is yellow and connects to your air conditioning compressor.
• The G wire is green and connects to the fan.
• Rc and Rh: The red wire(s) are the power source for your thermostat.

Is the C wire yellow?

Traditional HVAC wiring in homes uses four or more wires, one of which is called the “common” wire or c-wire. … Y wire (yellow, for air conditioning). W wire (white, for heat). C wire (blue or black, common for 24-volt power to the thermostat).

What are the 4 wires on a thermostat?

• Red wire for power (24V).
• White wire for heating (connected to W or W1 terminal).
• Green wire for fans.
• Blue or yellow wire for cooling (connected to Y).

What happens if you wire a thermostat wrong?

Potential consequences of improper installation could include: Electric shock. Blowing a circuit breaker. Damaging the thermostat unit, the electrical system or even the AC/furnace unit itself.

What does the RH wire do on a thermostat?

The RH wire refers to “red heating” which means that this is the connection you need in order to power the heating system of your air conditioning unit. Yes, even your air conditioning unit has a heating system to keep the temperature in balance.

What color is b wire on thermostat?

MarkingWire Color CodeDescriptionY2YellowSecondary cool call relayGGreenFan relayOOrangeChange-over relay to cool relayBBlueChange-over relay to heat relay

Where is the C wire on a thermostat?

Simply remove your current thermostat face from its baseplate and look for the terminal labeled with the letter “c.” If this terminal has a wire attached to it, you have an active “c-wire.” If you don’t see a wire connected to your “c” terminal, you have a few options.

What is the C terminal on a thermostat?

The c wire is an extra wire that can be used to provide a return path for continuous 24V power for any application. It’s normally used to provide a return path to power the thermostat. The “c” stands for common. It is often labeled as “c” on thermostat backplates.

Article first time published on

What color wire goes where on a Honeywell thermostat?

Meaning of Wiring Terminal Letters W (white) controls the auxiliary heating elements. Y (yellow) controls the compressor on the cooling system. G (green) controls the fan. C (blue or black) provides a return path to the transformer.

What is the common wire on a thermostat?

The C wire, or “common wire” enables the continuous flow of 24 VAC power to the thermostat. Technically speaking, power flows from the R (red) wire, but not continuously (not on its own, anyway). To make it continuous requires a common wire to complete the circuit.

What is a yellow wire?

Blue and yellow wires are most commonly found in commercial buildings and are used as the live wires pulled through a conduit. … Yellow wires are used as switch legs to ceiling fans, structural lights, and outlets paired with light switches, while blue wires are usually used as travelers for three-or-four-way switches.

How do you identify thermostat wires?

Look for connectors that have labels that are the same as your thermostat. For instance, you might find labels like R, W, G, Y, C or O/B. You should find wires attached to these connectors that are the same color as the wires that connect to your thermostat.

Is Rh wire same as R?

Understanding what RC stands for means, you can probably take an educated guess as to the meaning of RH. The “R” still indicates it’s a hot wire and terminal connection, and the “H” simply means heating. The RH wire connects to the RH terminal and controls the heating part of the thermostat.

Does R go to RC or RH?

Here are some general guidelines: An R wire can go into a Nest Learning Thermostat’s Rc or Rh connector. The Nest Thermostat E only has an R connector, which is typically where an R wire would go. … These are not jumper wires, and you can insert the Rc wire into the Rc connector and the Rh wire into the Rh connector.

Why RH wire has no power?

To fix an E74 error or no power to the Rh wire error on your Nest thermostat, check for loose connections and fix them. If that does not work, clean out the drain pipes and check if the condensate pump associated with your HVAC is clogged.

What's the orange wire on a thermostat?

The Orange Wire The orange thermostat wire links to your heat pump, if you have one. It terminates in your outdoor condenser for reversing valve operation from hot to cold. The orange wire connects to terminal O on your thermostat. The orange wire only applies to homeowners with an air-source heat pump.

Should my thermostat be on E or F?

The thermostat fan operation switch, labeled FUEL SWITCH in the diagram below, is factory-set in the “F” position. This is the correct setting for most systems. … The “E” setting will allow the fan to turn on immediately with the heating or cooling in a system where the G terminal is connected.

What happens if you hook up a thermostat backwards?

If you installed the thermostat backwards, it would probably not open up enough to allow coolant to flow, and the temp gauge would shoot up into the far right range, the engine would overheat, etc.

Is the C wire a ground?

C stands for common. The common wire is the ground or negative wire. To complete the circuit that provides power to the thermostat you need a positive and negative wire from the 24V transformer.

What is E on a thermostat?

E. Some thermostats for heat pumps have an E terminal, which toggles emergency heat on or off. Emergency heat should only be used on very cold days when the heat pump is unable to keep the house warm.

Are thermostat wire colors Universal?

There is no universal color used for this thermostat terminal designation. * These colors may be different if the person who wired the thermostat didn’t use conventional color coding. Most technicians use the colors specified.

What is an S1 and S2 wires on a Honeywell thermostat?

The S1 and S2 terminals on the Honeywell are for a remote optional sensor. Your Honeywell may have been using the S1 and S2 terminal to determine when to switch from heat pump to gas.

What color wire is the common wire?

Red, Black, and White are the colors of switch wiring for three-ways. Red and Black are connected to the switches if the White is used for neutral. The White is often referred to as Common, but the colored wires are also used as hot wires.

What is meant by a common wire?

The “common” is the “neutral” or “ground” wire, depending on the type of circuit. In normal US residential wiring, you’ll have a black “hot” wire, a white “neutral” or “common” wire, and a green or bare “ground” wire.

How does a 4 wire thermostat work?

The concept is that when you adjust your thermostat its like flipping a switch, and you are providing power to the your HVAC system to work, it’s just that in a typical 4 wire thermostat the thermostat decides where to route the power to turn on your HVAC system to make it heat, cool or run the fan.

How do you connect 4 wires to 2 wires?

1. Take the ends of both the 12-2 ROMEX® wire and the 12-3 ROMEX® wire and strip 1/2 inch of insulation off each wire. Push both ends into an electrical junction box. …
2. Look at the four wires of the 12-3 cable. …
3. Alternatively, use the red wire as the hot wire.

Is yellow wire positive or negative?

Yellow is positive, blue is negative. With the 12v wall plug I used it’s red to yellow, black to blue. 3 of 3 found this helpful.

What to do with the yellow wires on a ballast?

The two yellow wires complete the circuit through the fluorescent tube back into the ballast. The red and blue wires energize the pins the fluorescent tube is attached to, the yellow wires connect to the pins on the opposite ends of the fluorescent light tubes completing the circuit.

What is a yellow wire for in electrical wiring UK?

The new electrical wiring colours in the UK are green and yellow for the earth wire; brown for the live wire, and blue for the neutral wire.
