What is window channel balance

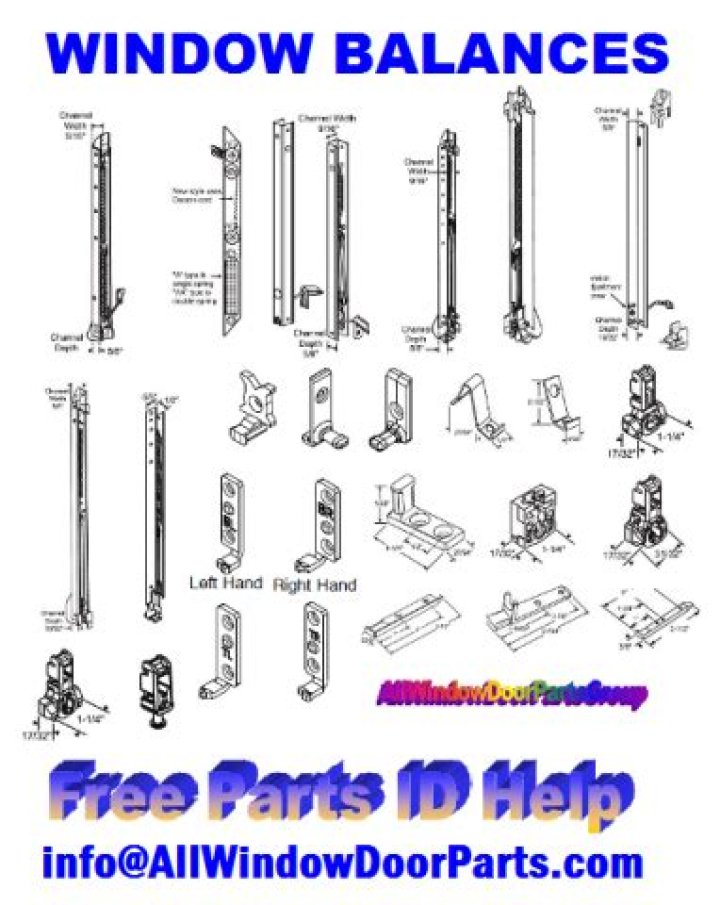

Also known as block-and-tackle balances, Channel Balances contain a spring mechanism and pulley system within a metal channel. The spring mechanism within a channel balance is carefully calibrated to support the weight of a window. …

What does a channel balance do?

Channel Balances. Also known as block-and-tackle balances, channel balances contain a spring and pulley system within a metal channel. … The spring mechanism is carefully calibrated to support the weight of a window.

What is a window channel?

Window channels are industrial rubber products that help to secure window frames and hold window glass in place. They eliminate rattling and provide protection against wind, water, dust, and drafts.

How do I check my window channel balance?

To measure block and tackle window balances first you measure the depth of the metal channel, the most common depths are 5/8″ and 3/8″. Then you need to measure the length of the balance. When measuring the length, measure only the metal channel, don’t include the plastic guides.

What is a sash balance?

A window balance (sometimes called a sash balance, window spring, or window “balancer”) is a somewhat hidden window component sitting inside the window frame. Window balances are only found in double-hung or single windows and counterbalance the weight of the sash assisting you with opening and closing your windows.

How much does it cost to replace window Springs?

Replace balance springs for single-hung window: $185-$225 (including parts and labor)

How much does it cost to replace window balance?

Window Balance Repair Cost Window balance repair costs approximately $20 for the parts and equipment if you do it yourself. If you hire a professional, it costs $60 due to the cost of labor.

What is the window frame?

A window frame is the framework that surrounds and supports the entire window system. It is comprised of the head, jamb and sill. The head is the main horizontal part forming the top of the window frame. Jambs are the main vertical parts forming the sides of a window frame.

What is window glass run?

A glass run channel is a groove, normally made of rubber or plastic, that is found around windows (most commonly car windows). The primary purpose of a glass run channel is to provide a seal for the window.

How do you make a window balance?

Lift and flip the clips located in the top part of the inside jamb. Lift the sash up, over and past the clips. When you do this the balances will catch on the clip and release from the sash. Push the window in one direction and then swing the sash out toward you to remove it from the pocket of the jamb.

Article first time published on

What is a window ballast?

Traditional double-hung windows operate by way of a sash and balance system. This is sometimes called a sash and ballast system, because the sash is counterbalanced by a weight. … It provides easy access to the sash cord and balance.

How does spiral window balance work?

Spiral window balances aid in opening windows, as well as holding windows open by utilizing a spiral-shaped rod within a tube. This rod connects to a spring, which is what provides the tension for supporting the sash.

How do you measure a window size?

Make three vertical measurements – on the left side of the window from the sill to the header, then the center and finally on the right side. Record the smallest of these numbers. This is the window opening height.

How do you measure a sash?

1. The sash width. Measure from one side of the window to the other, within the box frame. Measure across the top of the bottom sash for a smooth, straight surface.
2. The sash height. This is the size of the window within the box frame. …
3. Any custom details of the sashes if possible.

How does window balance work?

As the name suggests, it works by using a set of pulleys that lift and lower a pair of counterweights that help you raise and lower the sash. Each counterweight should weigh half as much as the sash itself. You can identify one of these by the counterweight located either side of the window when you remove the sash.

What is a spiral balance?

Spiral balances are spring mechanisms that regulate the operation of the window. This rod applies tension to the spring, which allows it to keep the sash up when raised. …

How do you measure the length of a sash cord?

Take one end of your sash cord and place it at the top of the pulley on the jamb you are wanting to re-rope. Holding that in place, run the rope down to the window sill. Mark that length with your finger and cut the rope right there. And that is how to measure sash cord!

How long do windows last?

Many window design professionals agree that new, quality windows should last between 15 and 20 years before you start to think about replacing them. Most companies producing vinyl windows often provide a 20-25 year warranty, which is essentially a lifetime warranty – the expected lifetime of the product.

How do I fix a foggy window?

1. Replace the IGU unit: Replace the seal or the second pane of glass inside your insulated window. …
2. Use a defogging spray: You could use a defogging spray to prevent fogging on your windows.

What causes window seals to fail?

Why Window Seals Fail One of the main reasons window seals eventually fail is through a process called solar pumping. As the sun shines down on your windows, the glass expands and puts pressure on the seal. Overnight, the glass cools and shrinks. Day after day, this process repeats, and, over time, the seal may fail.

Can window springs be repaired?

Repairing a window spring balance does not require any specialty tools, and you can accomplish this task on your own, unless you have an excessively large window that might require four hands instead of two. Look along the top inside of the window frame for stops.

Can window springs be replaced?

Many newer single-hung and double-hung windows are fitted with balance springs. These springs are also easy to replace. … Next, raise the balance spring upward until you feel the pressure release. Locate the screw at the top of the spring and use your Phillips-head screwdriver to unscrew it.

Are Glass Doctors expensive?

Glass Doctor’s pricing tends to be more affordable than the industry average. Glass Doctor reviews online show quotes that range from $271 to $350 for a standard windshield replacement. In our research, we found that standard windshield replacements cost between $300 and $500 across the industry.

How does a balance spring work?

A balance spring, or hairspring, is a spring attached to the balance wheel in mechanical timepieces. It causes the balance wheel to oscillate with a resonant frequency when the timepiece is running, which controls the speed at which the wheels of the timepiece turn, thus the rate of movement of the hands.
