What size are metal roofing sheets

The two most common widths are 26 and 36 inches. Other standard widths include 24 and 39 inches. When calculating coverage using the width and length of corrugated roofing, keep in mind that each piece will need to overlap by several inches.

What size sheets does metal roofing come in?

The most common gauges for metal roofing are 29, 26, 24, and 22 gauge.

How wide are standard metal roofing panels?

Metal shingles are popular because they have a wide variety of styles and colors. The standard width of metal shingles is 12.5 inches while the standard length is 39.75 inches.

What is the standard size of a roofing sheet?

Blue MS Metal Roofing Sheet, Dimensions: 8 X 4 Feet, Thickness of Sheet: 2 to 3 mm.

What size are corrugated roofing sheets?

SHEET SPECIFICATIONS Our traditional corrugated roofing sheets are galvanised steel and available in three gauges (thicknesses): 0.4mm, 0.5mm and 0.7mm. The corrugations in these sheets are 3″ (76.2mm) from peak to peak and will direct any rainwater away from the building.

How wide is corrugated metal roofing?

The two most common widths are 26 and 36 inches. Other standard widths include 24 and 39 inches. When calculating coverage using the width and length of corrugated roofing, keep in mind that each piece will need to overlap by several inches.

How do you measure a roof for metal roofing?

Determine the length of the metal panels needed for one side of your roof by measuring from the fascia board (the board attached to your roof joists) to the ridge (the peak) of the roof. For example, your roof could measure 12 feet to its peak. This number will tell you the total length of metal panels needed.

How wide is corrugated iron sheets?

CORRUGATED 762 ROOF SHEETING Corrugated is the traditional S-Rib profile for roofing and cladding applications. … The overall width of an 8.5 Corrugated sheet is 700 mm and a 10.5 Corrugated sheet is 840 mm.

How many inches do you overlap metal roofing?

Install Metal Panels Align the first metal roofing panel so that it overlaps the edging by 1/2 to 3/4 of an inch and is square to the roof line. Be sure the larger edge is laid so that the small edge of the next panel will overlap it.

What length can you get metal roofing?

Lengths of sheet metal roofing range from 8 feet long to 24 feet long. However, some sheet metal restoration stores stock lengths of up to 16 feet.

Article first time published on

What gauge metal is best for residential roofing?

26-gauge steel is the industry standard for most residential and commercial applications. It’s thicker and more structurally sound than 29, but less expensive than 22 and 24.

How wide is a standing seam metal roof?

Panel widths tend to vary by manufacturer, but most standing seam metal roof panels are between 12” and 18” in width, with approximately 16” being the most common.

How wide is sheet metal?

Standard sheets in the U.S are 36 inches wide but the length can vary.

How much should corrugated sheets overlap?

Corrugated sheeting should always overlap by a minimum of one corrugation, this can be known as side laps. When overlapping corrugated sheeting its advised you use cladco lapping tape. For maximum sheet lengths in corrugated, we can supply 5m in a 0.5mm thickness and up to 6m length in the 0.7mm thickness.

How do I figure out how many roofing sheets I need?

You divide Length with roofing clear span = number of sheets.

How do you measure a roof for installation?

1. Step 1: Start by sketching out a top-down view of your home’s roof. …
2. Step 2: Measure the length of your roof. …
3. Step 3: Next, figure out the width of the metal that you’re installing. …
4. Step 4: Repeat Step 3 for the other side of the roof.

How do I measure my roof?

1. Measure the length and width of each plane on the roof (including dormers) then multiply length times width.
2. Add the square footage of each of the planes together.

How thick is a metal roof?

Most metal roof and metal siding panels on the market are between 20- 29 gauge, with 20-gauge being the thickest and 29-gauge being the thinnest panels sold. These numbers refer to the decimal thickness of the steel and they have a range.

Is a drip edge necessary on a metal roof?

A drip edge is not needed for metal roofing. If you make sure to overhang your metal roofing at least an inch, the drip edge is not necessary at the eaves and rakes. If the metal roof is hanging over an inch, the water will be directed away from the fascia anyway if at a slant.

How much should a metal roof overhang on a shed?

3: The panels at the eave side of the roof should overhang into the gutters 1 to 1-1/2 inches. If installing metal on a non gutter application you can overhang the panel up to 3 inches.

How wide is a Colorbond roof sheet?

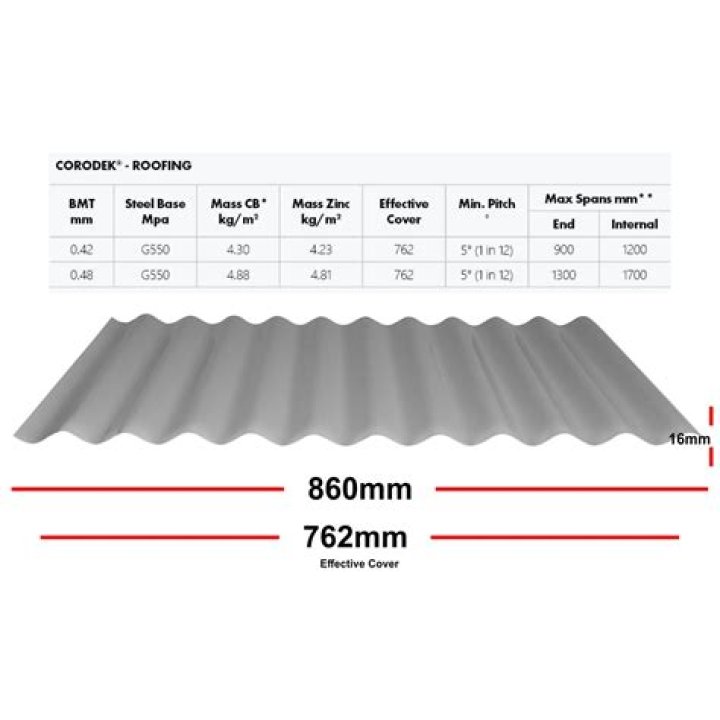

762mm is the cover width which allows for 1.5 rib overlap. Thus, the actual single sheet width of the corrugated sheet is 850mm wide.

How long is corrugated iron sheets?

Corrugated sheeting is available in standard lengths of 1.8m to 14m although lengths of up to 20m are available on request. The permissible length tolerance for the standard length range will be -0 +5 mm.

How long do metal roof panels come in?

Installation and Options. Corrugated metal panels tend to be between 2 and 3 feet wide and come in varying lengths such as 8 ft. and 12 ft. long metal panel sheets.

How long can you get R panel?

We provide R-Panel custom cut to the inch per your specifications. Any length is available from 3′ up to 45′. R-Panel’s design features four 1.25″ high ribs, spaced 12″ on center. Thickness options include 26 and 24 gauge standard and 22 gauge optional.

Which is thicker 26 or 29 gauge metal?

The lower the number, the thicker the metal. How much thicker? In general, a 26-gauge piece of metal is about 25 percent thicker than a 29-gauge. For this reason, it’s better able to tolerate strong winds and hail.

Which is thicker 28 or 26 gauge metal?

28 gauge steel has an average thickness of . 0187 (minimum . 0157) and 26 gauge is . 0217 (minimum .

Can you walk on a standing seam metal roof?

Standing seam roofing can be walked on pretty much anywhere without damaging it. Metal tile roofing (ribbed panels that resemble ceramic tile or shake) should be walked on in the lower spots, closer to the roof decking. Corrugated panels are also safe to walk on as those are screwed right onto the roof decking.

What does standing seam metal roof look like?

A standing seam roof features panels consisting of a formed metal sheet with vertical ribs at the panel edges, installed by lapping and interlocking edges of adjacent panels. The panels are attached to the substrate using concealed clips and fasteners. The screws don’t penetrate the panel.

How wide are PBR panels?

The PBR Panel is engineered and designed for maximum structural stability. For excellent strength and leak resistance, the PBR Panel has full, 1-1/4″ high major ribs every 12″ which are 1″ wide at the top and over 3″ wide at the base.
